11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC
11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC
11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC
11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC
11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC
11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC
Specifications
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Place of Origin :
Guangdong, China
Response Time :
6ms
Display Color :
Monochrome Black and White
Payment Terms :
T/T
Operating_Temperature :
-20°C to 70°C
Color Gamut :
72 % of NTSC(Typ.)
Model Number :
PC116H
MOQ :
300
Delivery Time :
10 work days
Packaging Details :
460 ×445 × 100mm/3.8KG
Drive System :
a-Si TFT active matrix
Name :
Industrial Computer Monitor
Price :
$214-232/pieces
Outline :
118.5×84.7×5.2 mm
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Supply Ability :
5K/month
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Brand Name :
XXT
Viewing Area :
116.2mm×87.1mm
Description
PC116H 11.6 Inch IP65 Fanless Industrial Panel PC with Multi Touch Screen Monitor for Robust Industrial Applications
Product Overview

Embedded multi-touch screen monitor with intelligent touch interface designed for industrial applications requiring robust performance and reliable operation.

11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC
Key Features
  • Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
  • Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability.
  • Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC).
  • Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions.
  • Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch.
  • Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness.
  • I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options.
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input.
  • Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available.
  • 24/7 Operation: Designed for continuous use with robust performance and long service life.

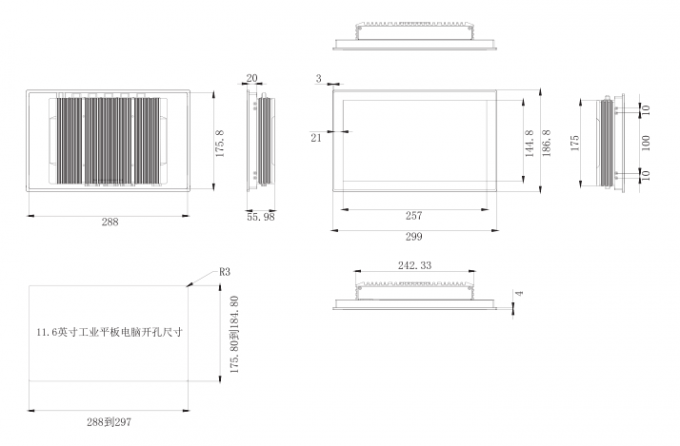

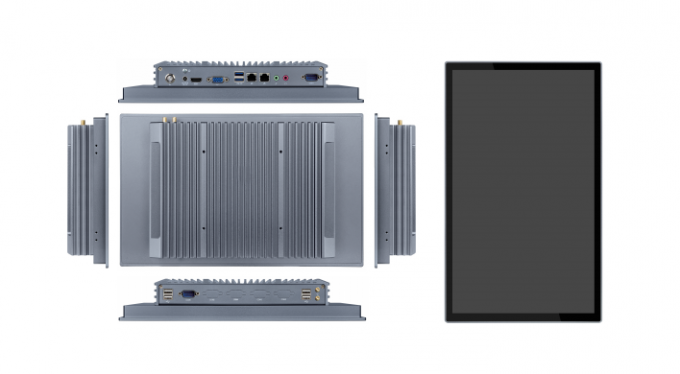

Product Views & Dimensions
11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC 11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC
Interface Diagrams
11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC 11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC 11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC
Technical Specifications
Component Specifications
CPU J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory 4G/8G/16G/32G/64G
Storage 64G/128G/256G/512G/1TB/2TB
Touch Type Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support Windows 7/8/10, Linux, Android
LCD Display 11.6" XGA TFT (1920*1080)
Active Area 257mm*144.8mm
Viewing Angle 89° (L/R/T/B)
Brightness 350 cd/m²
I/O Interfaces 2*RJ-45, 2*USB3.0, 2*USB2.0, 1*RS232/485, 5*RS232, Mini-PCIe slot
Dimensions 299*186.8*55.98mm
Power Input DC 12V (9-30V optional)
Operating Temperature -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods
Embedded Snap-In Mounting
1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.
11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC
2. Tighten the long screws and nuts onto the snap fasteners.
11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC
3. Four clips are fixed at the threaded hole positions on both sides.
11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC
4. Tighten the long screws to secure the equipment in place.
11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC
Desktop Mounting
11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC
Cantilever Mounting
11.6 Inch Industrial Computer Monitor Robust Fanless Industrial Touch Panel PC
Packing List
No. Item Quantity
1 Industrial Panel PC 1 unit
2 Power Adapter 1 unit
3 3-pin 5.08 Power Terminal Plug (optional) 1 unit
4 Embedded Snap-In Kit (optional) 1 set
5 Wall-Mount Bracket (Optional) 1 unit
6 Certificate of Conformity 1 sheet
7 Warranty Card 1 sheet
8 User Manual 1 copy
Ordering Information
No. Name Description
1 Ethernet Port Default single port; optional dual or quad ports
2 Serial Port Default 2 * RS232; optional 6 * RS232/RS485
3 USB Default 4 * USB (2 * USB 2.0, 2 * USB 3.0); optional 8 * USB
4 GPIO Optional 4 input / 4 output
Safety Warnings
  • This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
  • Do not place in humid environments to prevent condensation and component damage.
  • Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
  • Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
  • Do not disassemble or repair the device yourself due to high voltage risks.
