18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display
18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display
18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display
18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display
18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display
18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display
Specifications
Outline :
118.5×84.7×5.2 mm
Place of Origin :
Guangdong, China
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Viewing Area :
116.2mm×87.1mm
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Price :
$214-232/pieces
Response Time :
6ms
Display Color :
Monochrome Black and White
Delivery Time :
10 work days
Operating_Temperature :
-20°C to 70°C
Payment Terms :
T/T
Packaging Details :
590×445×100mm/5.9KG
Name :
Industrial Computer Monitor
Brand Name :
XXT
Model Number :
PC185H
Color Gamut :
72 % of NTSC(Typ.)
MOQ :
300
Supply Ability :
5K/month
Drive System :
a-Si TFT active matrix
Description
18.5 Inch Fanless Industrial Monitor IP65 Industrial PC Touch Screen Monitor
Detail Information
Place of Origin
Guangdong, China
Brand Name
XXT
Model Number
PC185H
Type:
Industrial Computer
Display Size:
18.5 Inch
Supplier Type:
Factory
Mounting Type:
Embedded
Highlight:
18.5 Inch Fanless Industrial Monitor, Fanless Industrial Touch Screen Monitor, IP65 Industrial PC Touch Screen Monitor
Product Description
18.5 Inch H Type Industrial Panel PC Embedded Touch IP65 Fanless HMI Industrial Touch Screen PC Intelligent Industrial Computer
18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display
Product Features
  • Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
  • Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability.
  • Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC).
  • Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions.
  • Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch.
  • Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness.
  • I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options.
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input.
  • Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available.
  • 24/7 Operation: Designed for continuous use with robust performance and long service life.

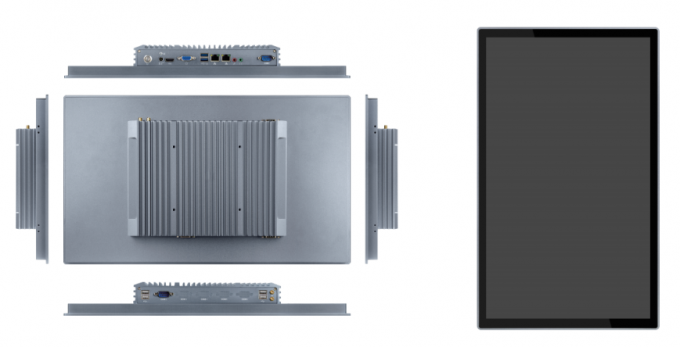

Product Six Views
18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display

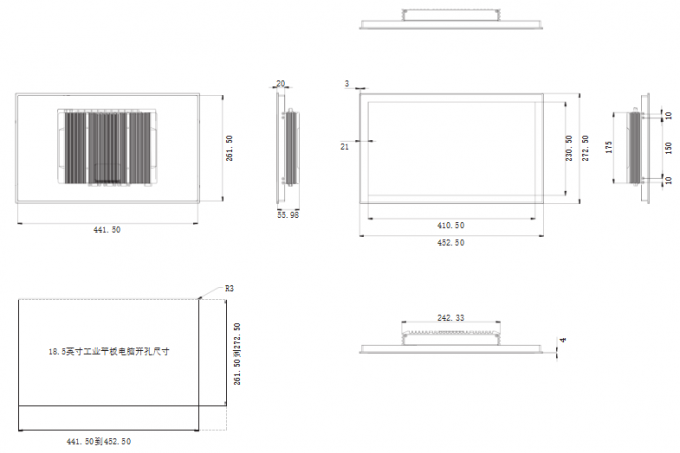

Product Dimensions
18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display
I/O Interface Diagram
18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display 18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display
Extensible Interface
18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display
Product Specifications
CPU: J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory: 4G/8G/16G/32G/64G
Storage: 64G/128G/256G/512G/1TB/2TB
Touch Type: Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support: Windows 7/8/10, Linux, Android
LCD Display: 18.5" XGA TFT (1920*1080)
Active Area: 410.5mm * 230.5mm
Viewing Angle: 89° (L/R/T/B)
Brightness: 350 cd/m²
I/O Interfaces: 2*RJ-45, 2*USB3.0, 2*USB2.0, 1*RS232/485, 5*RS232, Mini-PCIe slot
Dimensions: 452.50mm * 272.50mm * 55.98mm
Power Input: DC 12V (9-30V optional)
Operating Temp: -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods

Embedded Snap-In Mounting

1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.

18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display

2. Tighten the long screws and nuts onto the snap fasteners.

18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display

3. Four clips are fixed at the threaded hole positions on both sides.

18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display

4. Tighten the long screws to secure the equipment in place.

18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display
Desktop Mounting
Cantilever Mounting
18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display 18.5 Inch Industrial Computer Monitor Intelligent IP65 Industrial Display
Packing List
No. Item QTY
1 Industrial Panel PC 1 unit
2 Power Adapter 1 unit
3 3-pin 5.08 Power Terminal Plug (optional) 1 unit
4 Embedded Snap-In Kit (optional) 1 set
5 Wall-Mount Bracket (Optional) 1 unit
6 Certificate of Conformity 1 sheet
7 Warranty Card 1 sheet
8 User Manual 1 copy
Ordering Information
No. Name Description
1 Ethernet Port Default single port; optional dual or quad ports
2 Serial Port Default 2 * RS232; optional 6 * RS232/RS485
3 USB Default 4 * USB (2 * USB 2.0, 2 * USB 3.0); optional 8 * USB
4 GPIO Optional 4 input / 4 output
Safety Warnings
1. This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
2. Do not place in humid environments to prevent condensation and component damage.
3. Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
4. Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
5. Do not disassemble or repair the device yourself due to high voltage risks.
Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
