Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor
Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor
Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor
Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor
Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor
Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor
Specifications
Outline :
118.5×84.7×5.2 mm
Signal Interface :
LVDS
Lumens Degrees :
350 Cd/M2
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Price :
$180-232/pieces
Payment Terms :
T/T
Viewing Area :
116.2mm×87.1mm
Packaging Details :
590×445×100mm4.8KG
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Operating_Temperature :
-20°C to 70°C
Response Time :
6ms
Display Color :
Monochrome Black and White
Color Gamut :
72 % of NTSC(Typ.)
MOQ :
300
Supply Ability :
5K/month
Drive System :
a-Si TFT active matrix
Brand Name :
XXT
Model Number :
PC150H
Place of Origin :
Guangdong, China
Delivery Time :
10 work days
Name :
15 Inch Industrial Monitor
Description
PC150H 15 Inch Industrial Computer with IP65 Fanless Design and 350 Cd/M2 Brightness for Industrial Monitoring
Product Overview

The PC150H 15 Inch H Type Industrial Computer is an embedded touch panel PC with IP65 fanless HMI designed for industrial monitoring applications. Featuring CNC precision engraving construction with seamless, screwless design, this industrial tablet offers multi-touch capability and robust performance for demanding environments.

Basic Information
Place of OriginGuangdong, China
Brand NamexXT
CertificationCE/ROHS
Model NumberPC150H
Display Size15 Inch
Supplier TypeFactory
Mounting TypeEmbedded
Packing Dimensions590×445×100mm
Net Weight4.1KG
Gross Weight4.8KG
Series Configuration Options
  • Multiple display sizes: 10.1/10.4/11.6/12.1/13.3/15/15.6/17/17.3/18.5/19/21.5/23.8 inches
  • Various CPU options: J6412/N97/13/15/17 processors
  • Operating system support: Windows 7/Windows 10/Linux/Vxworks/QNX

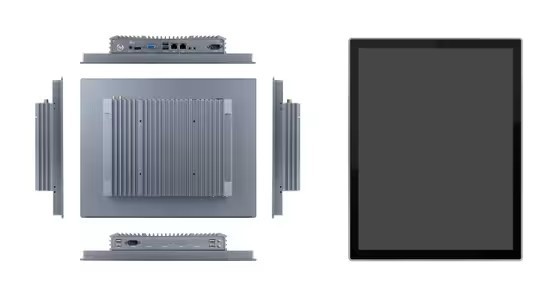

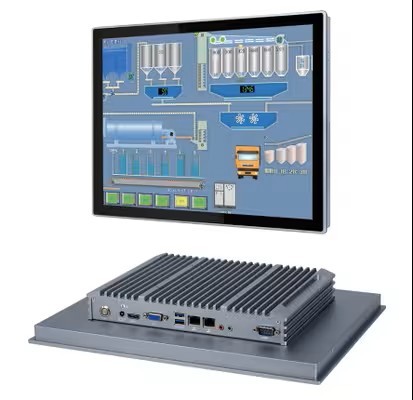

Product Images
Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor
Key Features
  • Precision CNC Milling: High-precision machining ensures superior sealing, reduced dust intrusion, and enhanced equipment stability and service life
  • Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design for improved surface hardness and anti-interference capability
  • Full Aluminum Construction: IP65-rated front panel providing water and dust protection with excellent electromagnetic compatibility
  • Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions
  • Capacitive Touch: Full-flat, multi-point projected capacitive touch supporting full lamination, compatible with 5-wire resistive touch
  • Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness
  • I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input
  • Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations
  • 24/7 Operation: Designed for continuous use with robust performance and long service life
Interface Configuration
Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor
Technical Specifications
SpecificationDetails
CPUJ1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory4G/8G/16G/32G/64G
Storage64G/128G/256G/512G/1TB/2TB
Touch TypeMulti-point Capacitive / 5-Wire Resistive
Touch Driver SupportWindows 7/8/10, Linux, Android
LCD Display15" XGA TFT (1280*1024)
Active Area304mm×196.7mm
Viewing Angle89° (L/R/T/B)
Brightness350 cd/m²
I/O Interfaces2×RJ-45, 2×USB3.0, 2×USB2.0, 1×RS232/485, 5×RS232, Mini-PCIe slot
Dimensions346.00×270.00×55.98mm
Power InputDC 12V (9-30V optional)
Operating Temperature-20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods
Embedded Snap-In Mounting
  1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.
  2. Tighten the long screws and nuts onto the snap fasteners.
  3. Four clips are fixed at the threaded hole positions on both sides.
  4. Tighten the long screws to secure the equipment in place.
Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor
Alternative Mounting Options
Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor
Packing List
No.ItemQuantity
115 INCH Industrial Panel PC1 unit
2Power Adapter1 unit
33-pin 5.08 Power Terminal Plug (optional)1 unit
4Embedded Snap-In Kit (optional)1 set
5Wall-Mount Bracket (Optional)1 unit
6Certificate of Conformity1 sheet
7Warranty Card1 sheet
8User Manual1 copy
Ordering Information
No.NameDescription
1Ethernet PortDefault single port; optional dual or quad ports
2Serial PortDefault 2 × RS232; optional 6 × RS232/RS485
3USBDefault 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB
4GPIOOptional 4 input / 4 output
Safety Warnings & Operating Guidelines
  • This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
  • Do not place in humid environments to prevent condensation and component damage.
  • Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
  • Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
  • Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
