19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
Specifications
Supply Ability :
5K/month
Outline :
118.5×84.7×5.2 mm
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Brand Name :
XXT
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Viewing Area :
116.2mm×87.1mm
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
Payment Terms :
T/T
Operating_Temperature :
-20°C to 70°C
Model Number :
PC190M
Price :
$214-232/pieces
Packaging Details :
590×445×100mm/6.7KG
Color Gamut :
72 % of NTSC(Typ.)
Drive System :
a-Si TFT active matrix
MOQ :
300
Place of Origin :
Guangdong, China
Delivery Time :
15 work days
Name :
Industrial Computer Monitor
Description
PC190M 19 Inch IP65 Fanless Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC
Detail Information
Place of Origin
Guangdong, China
Brand Name
XXT
Certification
CE/Rohs...
Model Number
PC190M
Document

Type:
Industrial Computer
Display Size:
19 Inch

Supplier Type:

Factory
Mounting Type:
Embedded
Packing Dimensions:
590×445×100mm
Net Weight:
5.9KG
Gross Weight:
6.7KG
Highlight:

19 Inch Industrial Computer

,

IP65 Industrial Panel PC

,

Fanless Embedded Touch Panel PC

Product Description
PC190M 19 Inch IP65 Fanless Industrial Computer
Professional-grade embedded touch panel PC with wide temperature range and robust industrial construction for demanding environments.
M Series Overview
The M series represents professional-level industrial tablet computers featuring easy installation and maintenance. Available in sizes from 10.1 to 23.8 inches with Intel Core 4th to 14th generation processor support, these units integrate gigabit networking, 232/485 serial ports, and extensive expansion capabilities.
Key Design Features
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
Thickened Frame Design
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
Waterproof Trough Design
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
Pre-installed Hidden Indicator Light
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
Integrated Molding Snap-on Connector
Product Features
  • Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
  • Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability.
  • Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC).
  • Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions.
  • Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch.
  • Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness.
  • I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options.
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input.
  • Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available.
  • 24/7 Operation: Designed for continuous use with robust performance and long service life.
Product Views & Dimensions

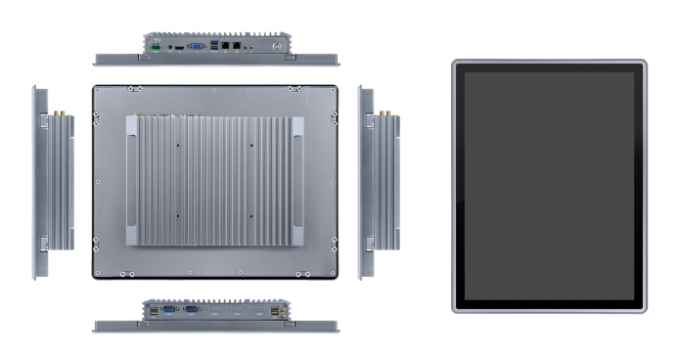

Product Six Views
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
Product Dimensions
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
I/O Interface Configuration
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
Extended Interface Diagram
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
Extensible Interface Diagram
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
Product Specifications
CPU J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory 4G/8G/16G/32G/64G
Storage 64G/128G/256G/512G/1TB/2TB
Touch Type Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support Windows 7/8/10, Linux, Android
LCD Display 19" XGA TFT (1280*1024)
Active Area 377.32mm*302.06mm
Viewing Angle 89° (L/R/T/B)
Brightness 350 cd/m²
I/O Interfaces 2*RJ-45, 2*USB3.0, 2*USB2.0, 1*RS232/485, 5*RS232, Mini-PCIe slot
Dimensions 426.93*350.12*65.5mm
Power Input DC 12V (9-30V optional)
Operating Temp -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods
Embedded Snap-In Mounting
1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
2. Tighten the long screws and nuts onto the snap fasteners.
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
3. Four clips are fixed at the threaded hole positions on both sides.
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
4. Tighten the long screws to secure the equipment in place.
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
Desktop Mounting
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
Cantilever Mounting
19 Inch Industrial Computer Monitor Embedded Industrial Touch Screen Computer
Packing List
No. Item QTY
1 19 Inch Industrial Panel PC 1 unit
2 Power Adapter 1 unit
3 3-pin 5.08 Power Terminal Plug (optional) 1 unit
4 Embedded Snap-In Kit (optional) 1 set
5 Wall-Mount Bracket (Optional) 1 unit
6 Certificate of Conformity 1 sheet
7 Warranty Card 1 sheet
8 User Manual 1 copy
Ordering Information
No. Name Description
1 Ethernet Port Default single port; optional dual or quad ports
2 Serial Port Default 2 * RS232; optional 6 * RS232/RS485
3 USB Default 4 * USB (2 * USB 2.0, 2 * USB 3.0); optional 8 * USB
4 GPIO Optional 4 input / 4 output
Safety Warnings
  • This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
  • Do not place in humid environments to prevent condensation and component damage.
  • Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
  • Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
  • Do not disassemble or repair the device yourself due to high voltage risks.
Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
