IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
Specifications
Outline :
118.5×84.7×5.2 mm
Model Number :
PC185M
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Supply Ability :
5K/month
Viewing Area :
116.2mm×87.1mm
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
Operating_Temperature :
-20°C to 70°C
MOQ :
300
Place of Origin :
Guangdong, China
Payment Terms :
T/T
Color Gamut :
72 % of NTSC(Typ.)
Packaging Details :
590×445×100mm/5.2KG
Delivery Time :
15 work days
Brand Name :
XXT
Name :
Fanless Industrial Computer
Drive System :
a-Si TFT active matrix
Price :
$214-232/pieces
Description
PC185M 18.5 Inch IP65 Fanless Industrial Computer with Embedded Touch Panel PC and Wide Temperature Range
Product Overview

Professional-grade embedded touch panel PC with wide temperature range and robust industrial construction for demanding environments.

Place of Origin Guangdong, China
Brand Name XXT
Certification CE/Rohs
Model Number PC185M
Type Industrial Computer
Display Size 18.5 Inch
Supplier Type Factory
Mounting Type Embedded
Packing Dimensions 590*445*100mm
Net Weight 5.4KG
Gross Weight 6.5KG
M Series Overview

The M series represents professional-level industrial tablet computers featuring easy installation and maintenance. Available in sizes from 10.1 to 23.8 inches with Intel Core 4th to 14th generation processor support, these units integrate gigabit networking, 232/485 serial ports, and extensive expansion capabilities.

Key Design Features
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
Thickened Frame Design
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
Waterproof Trough Design
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
Pre-installed Hidden Indicator Light
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
Integrated Molding Snap-on Connector
Product Features
  • Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
  • Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability.
  • Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC).
  • Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions.
  • Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch.
  • Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness.
  • I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options.
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input.
  • Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available.
  • 24/7 Operation: Designed for continuous use with robust performance and long service life.
Product Views & Dimensions
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC

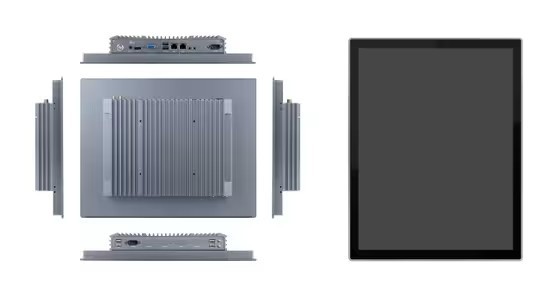

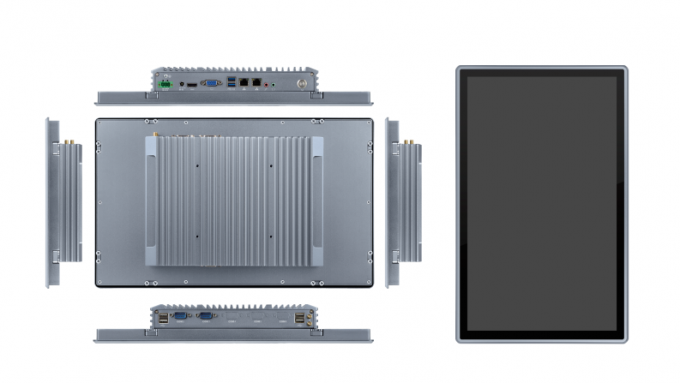

Product Six Views
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
Product Dimensions
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
I/O Interface Configuration
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
Extended Interface Diagram
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
Extensible Interface Diagram
Product Specifications
CPU J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory 4G/8G/16G/32G/64G
Storage 64G/128G/256G/512G/1TB/2TB
Touch Type Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support Windows 7/8/10, Linux, Android
LCD Display 18.5" XGA TFT (1280*800)
Active Area 410.5*230.5mm
Viewing Angle 89° (L/R/T/B)
Brightness 350 cd/m²
I/O Interfaces 2*RJ-45, 2*USB3.0, 2*USB2.0, 1*RS232/485, 5*RS232, Mini-PCIe slot
Dimensions 460.11*278.56*65.5mm
Power Input DC 12V (9-30V optional)
Operating Temp -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods
Embedded Snap-In Mounting
1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
2. Tighten the long screws and nuts onto the snap fasteners.
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
3. Four clips are fixed at the threaded hole positions on both sides.
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
4. Tighten the long screws to secure the equipment in place.
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
Desktop Mounting
IP65 Fanless Industrial Computer 18.5 Inch Industrial Touchscreen PC
Cantilever Mounting
Packing List
No. Item QTY
1 18.5 Inch Industrial Panel PC 1 unit
2 Power Adapter 1 unit
3 3-pin 5.08 Power Terminal Plug (optional) 1 unit
4 Embedded Snap-In Kit (optional) 1 set
5 Wall-Mount Bracket (Optional) 1 unit
6 Certificate of Conformity 1 sheet
7 Warranty Card 1 sheet
8 User Manual 1 copy
Ordering Information
No. Name Description
1 Ethernet Port Default single port; optional dual or quad ports
2 Serial Port Default 2 * RS232; optional 6 * RS232/RS485
3 USB Default 4 * USB (2 * USB 2.0, 2 * USB 3.0); optional 8 * USB
4 GPIO Optional 4 input / 4 output
Safety Warnings
  • This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
  • Do not place in humid environments to prevent condensation and component damage.
  • Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
  • Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
  • Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
