350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC
350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC
350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC
350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC
350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC
350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC
Specifications
Outline :
118.5×84.7×5.2 mm
Place of Origin :
Guangdong, China
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Viewing Area :
116.2mm×87.1mm
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
Model Number :
PC 238H
MOQ :
300
Operating_Temperature :
-20°C to 70°C
Supply Ability :
5K/month
Name :
Industrial Computer Monitor
Brand Name :
XXT
Color Gamut :
72 % of NTSC(Typ.)
Payment Terms :
T/T
Price :
$238-258/pieces
Delivery Time :
10 work days
Packaging Details :
600 * 445 * 120mm ; 7.2KG
Drive System :
a-Si TFT active matrix
Description
23.8 Inch IP65 Industrial Panel PC / Embedded Monitor IP65 Fanless HMI Monitor
Detail Information
Place of Origin
Guangdong, China
Brand Name
XXT
Model Number
PC 238H
Type:
Industrial Computer
Display Size:
23.8 Inch
Supplier Type:
Factory
Outline Dimension:
569.04mmX338.46mmX55.98mm
Packing Dimensions:
600 ×445 × 120mm
Net Weight:
6.5KG
Gross Weigh:
7.2KG
Warerproof:
Front Panel Protection: IP65 Rated
Highlight:

23.8 inch industrial panel PC

,

Embedded Monitor IP65

,

IP65 Fanless HMI Monitor

Product Description

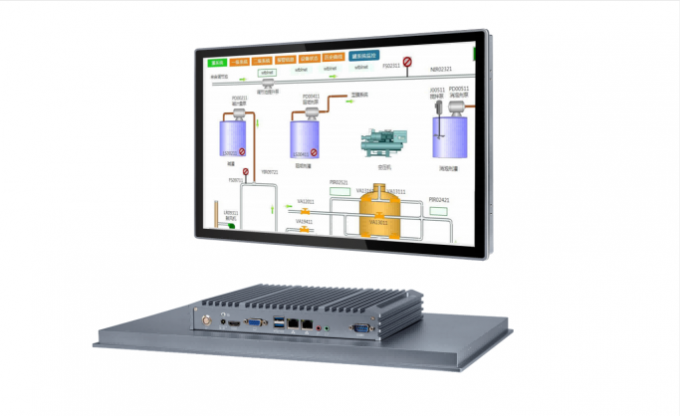

23.8 Inch H Type Industrial Panel PC - Embedded IP65 Fanless HMI Industrial Intelligent Computer
350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC
Product Features
  • Precision CNC Milling: High-precision CNC machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
  • Ultra-narrow Reinforced TP: Touch frame features an 18mm narrow bezel and 2mm reinforced design, enhancing surface hardness and anti-interference capability.
  • Full Aluminum Construction: Front panel designed to IP65 standard for water and dust protection, providing high overall airtightness and good electromagnetic compatibility (EMC).
  • Fanless Heat Dissipation: Utilizes copper heat blocks combined with heat pipes for efficient continuous thermal management.
  • Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination.
  • Industrial LCD Panel: Original A+ grade LCD module with wide temperature range and high brightness.
  • I/O Interfaces: Supports 4 Ethernet ports, 6 USB ports, and 8 COM ports with customization options.
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C).
  • Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations.
  • 24/7 Operation: Designed for continuous operation with robust performance and long service life.
Six Views
350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC

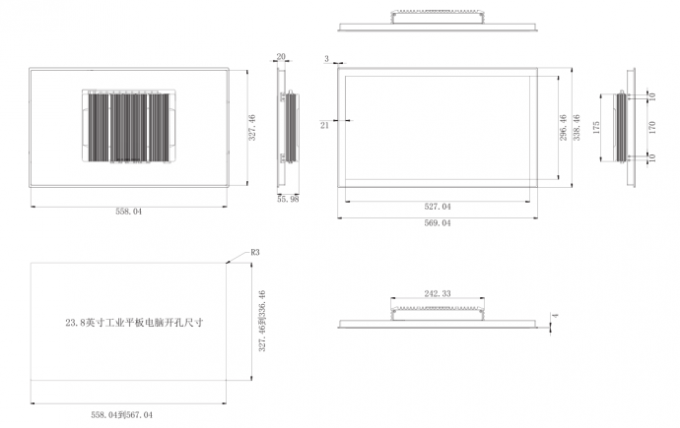

Product Dimension
350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC
I/O Interface Diagram
350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC 350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC
Product Specifications
CPU J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory 4G/8G/16G/32G/64G
Storage 64G/128G/256G/512G/1TB/2TB
Touch Type Multi-point Capacitive / 5-Wire Resistive Touch Driver
Support Windows 7/8/10, Linux, Android
LCD Display 23.8" XGA TFT (1920*1080)
Active Area 527.04mm*296.46mm
Viewing Angle 89° (L/R/T/B)
Brightness 350 cd/m²
I/O Interfaces 2×RJ-45, 2×USB3.0, 2×USB2.0, 1×RS232/485, 5×RS232, Mini-PCIe slot
Dimensions 569.04mm*338.46mm*55.98mm
Power Input DC 12V (9-30V optional)
Operating Temp -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods
1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.
350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC
2. Tighten the long screws and nuts onto the snap fasteners.
350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC
3. Four clips are fixed at the threaded hole positions on both sides.
350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC
4. Tighten the long screws to secure the equipment in place.
350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC
Desktop Mounting
350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC
Cantilever Mounting
350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC
Packing List
No. Item Qty
1 Industrial Panel PC 1 unit
2 Power Adapter 1 unit
3 3-pin 5.08 Power Terminal Plug (optional) 1 unit
4 Embedded Snap-In Kit (optional) 1 set
5 Wall-Mount Bracket (Optional) 1 unit
6 Certificate of Conformity 1 sheet
7 Warranty Card 1 sheet
8 User Manual 1 copy
Ordering Information
No. Name Description
1 Ethernet Port Default single port; optional dual or quad ports
2 Serial Port Default 2 × RS232; optional 6 × RS232/RS485
3 USB Default 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB
4 GPIO Optional 4 input / 4 output
Safety Warnings

1. This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.

2. Do not place in humid environments to prevent condensation and component damage.

3. Avoid prolonged direct sunlight or high UV environments to prevent screen damage.

4. Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.

5. Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
