17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2
17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2
17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2
17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2
17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2
17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2
Specifications
Color Gamut :
72 % of NTSC(Typ.)
Response Time :
6ms
Viewing Area :
116.2mm×87.1mm
Lumens Degrees :
1000cd/m²
Storage Temperature :
-30℃~80℃
MOQ :
300
View Direction :
free/all
Payment Terms :
T/T,
Place of Origin :
Guangdong, China
Packaging Details :
590×445×100mm/5.4KG
Display Mode :
Normally White, Transmissive
Display Color :
Monochrome Black and White
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Brand Name :
XXT
Supply Ability :
5K/month
Controller Ic :
SSD1316
Operating_Temperature :
-20°C to 70°C
Price :
$180-232/pieces
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Delivery Time :
15 work days
Drive System :
a-Si TFT active matrix
Signal Interface :
LVDS
Model Number :
PC170H
Outline :
118.5×84.7×5.2 mm
Description
PC170H 17 Inch Industrial Computer with IP65 Fanless Design and 350 Cd/M2 Brightness for Industrial Monitoring
Detail Information
Place of Origin
Guangdong, China
Brand Name
xXT
Certification
CE/ROHS ..
Model Number
PC170H
Type:
Industrial Computer
Display Size:
17 Inch
Supplier Type:
Factory
Mounting Type:
Embedded
Packing Dimensions:
590×445×100mm
Net Weight:
4.5KG
Gross Weight:
5.4KG
Highlight:

17 Inch Industrial Computer

,

IP65 Fanless Industrial Panel PC

,

350 Cd/M2 Brightness HMI

Product Description
YZY PC170H 17 Inch Industrial Computer
IP65 Fanless HMI with 350 Cd/M² Industrial Touch Panel PC
The H Type Industrial Computer is an embedded touch panel PC with IP65 fanless HMI designed for industrial monitoring applications. Featuring CNC precision engraving construction with seamless, screwless design, this industrial tablet offers multi-touch capability and robust performance for demanding environments.
Series Configuration Options
  • Multiple display sizes: 10.1/10.4/11.6/12.1/13.3/15/15.6/17/17.3/18.5/19/21.5/23.8 inches
  • Various CPU options: J6412/N97/13/15/17 processors
  • Operating system support: Windows 7/Windows 10/Linux/Vxworks/QNX
Product Overview
17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2
Key Product Features
  • Precision CNC Milling: High-precision machining ensures superior sealing, reduced dust intrusion, and enhanced equipment stability and service life
  • Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design for improved surface hardness and anti-interference capability
  • Full Aluminum Construction: IP65-rated front panel providing water and dust protection with excellent electromagnetic compatibility
  • Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions
  • Capacitive Touch: Full-flat, multi-point projected capacitive touch supporting full lamination, compatible with 5-wire resistive touch
  • Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness
  • I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input
  • Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations
  • 24/7 Operation: Designed for continuous use with robust performance and long service life

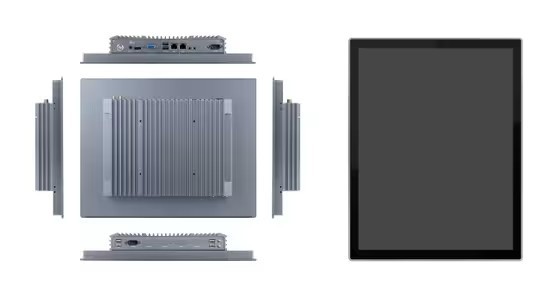

Product Views & Dimensions
17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M217 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2

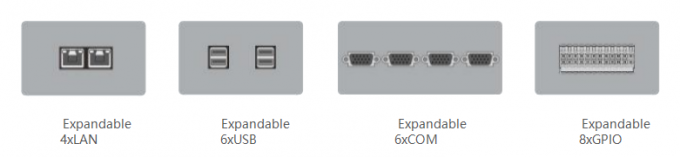

Interface Configuration
17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M217 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M217 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2
Technical Specifications
Specification Details
CPU J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory 4G/8G/16G/32G/64G
Storage 64G/128G/256G/512G/1TB/2TB
Touch Type Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support Windows 7/8/10, Linux, Android
LCD Display 17" XGA TFT (1280*1024)
Active Area 338.92mm×271.34mm
Viewing Angle 89° (L/R/T/B)
Brightness 350 cd/m²
I/O Interfaces 2×RJ-45, 2×USB3.0, 2×USB2.0, 1×RS232/485, 5×RS232, Mini-PCIe slot
Dimensions 380.92×313.34×55.98mm
Power Input DC 12V (9-30V optional)
Operating Temperature -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods
Embedded Snap-In Mounting
  1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.
17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2
  1. Tighten the long screws and nuts onto the snap fasteners.
17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2
  1. Four clips are fixed at the threaded hole positions on both sides.
17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2
  1. Tighten the long screws to secure the equipment in place.
17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2
Alternative Mounting Options
17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M217 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2
Packing List
No. Item Quantity
1 17 INCH Industrial Panel PC 1 unit
2 Power Adapter 1 unit
3 3-pin 5.08 Power Terminal Plug (optional) 1 unit
4 Embedded Snap-In Kit (optional) 1 set
5 Wall-Mount Bracket (Optional) 1 unit
6 Certificate of Conformity 1 sheet
7 Warranty Card 1 sheet
8 User Manual 1 copy
Ordering Information
No. Name Description
1 Ethernet Port Default single port; optional dual or quad ports
2 Serial Port Default 2 × RS232; optional 6 × RS232/RS485
3 USB Default 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB
4 GPIO Optional 4 input / 4 output
Safety Warnings & Operating Guidelines
  • This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
  • Do not place in humid environments to prevent condensation and component damage.
  • Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
  • Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
  • Do not disassemble or repair the device yourself due to high voltage risks.
Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
