Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen
Specifications
Outline :
118.5×84.7×5.2 mm
MOQ :
300
Payment Terms :
T/T
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Model Number :
PC101M
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Supply Ability :
5K/month
Delivery Time :
10 work days
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
Operating_Temperature :
-20°C to 70°C
Place of Origin :
GuangDong, China
Name :
Industrial PC HMI
Packaging Details :
460 ×445 × 100mm/3.8KG
Color Gamut :
72 % of NTSC(Typ.)
Price :
$214-232/pieces
Drive System :
a-Si TFT active matrix
Brand Name :
XXT
Viewing Area :
116.2mm×87.1mm
Description
PC101M 10.1 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC
Product Overview

Professional-grade embedded touch panel PC with wide temperature range and robust industrial construction for demanding environments.

Place of Origin: Guangdong, China
Brand Name: XXT
Certification: CE/RoHS
Model Number: PC101M
Type: Industrial Computer
Display Size: 10.1 Inch
Supplier Type: Factory
Mounting Type: Embedded
Packing Dimensions: 460 * 445 * 100mm
Net Weight: 3.3KG
Gross Weight: 3.8KG
Key Features: 10.1 inch Industrial Panel PC, IP65 Fanless HMI Industrial Computer, Wide Temperature Range Embedded Touch Panel PC
M Series Overview

The M series represents professional-level industrial tablet computers featuring easy installation and maintenance. Available in sizes from 10.1 to 23.8 inches with Intel Core 4th to 14th generation processor support, these units integrate gigabit networking, 232/485 serial ports, and extensive expansion capabilities.

Key Design Features
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen

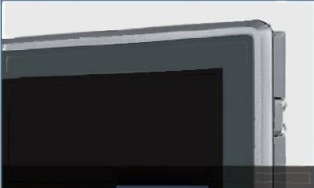

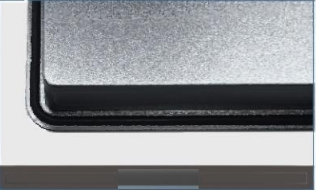

Thickened Frame Design
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen

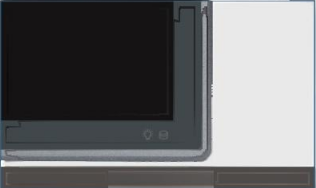

Waterproof Trough Design
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen

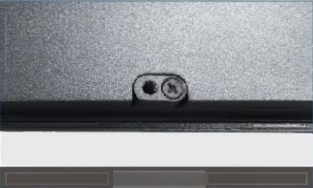

Pre-installed Hidden Indicator Light
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen
Integrated Molding Snap-on Connector
Product Features
  • Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
  • Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability.
  • Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC).
  • Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions.
  • Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch.
  • Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness.
  • I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options.
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input.
  • Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available.
  • 24/7 Operation: Designed for continuous use with robust performance and long service life.
Product Views & Dimensions
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen

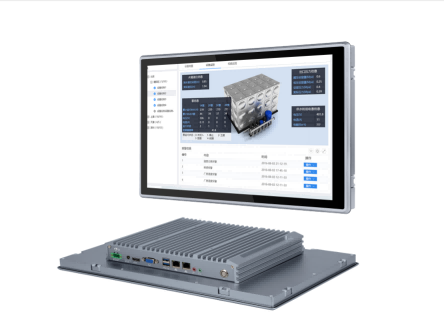

PC101M Industrial Panel PC
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen

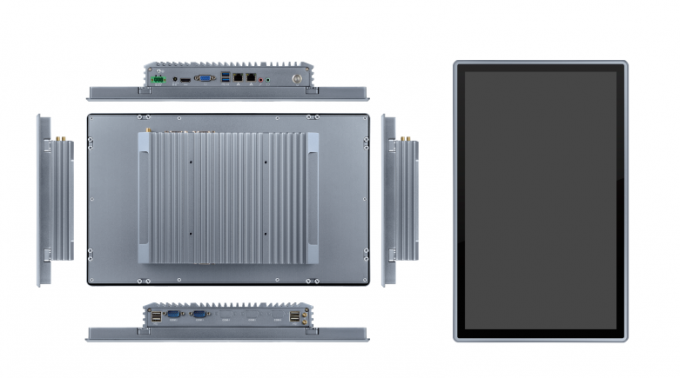

Product Six Views
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen

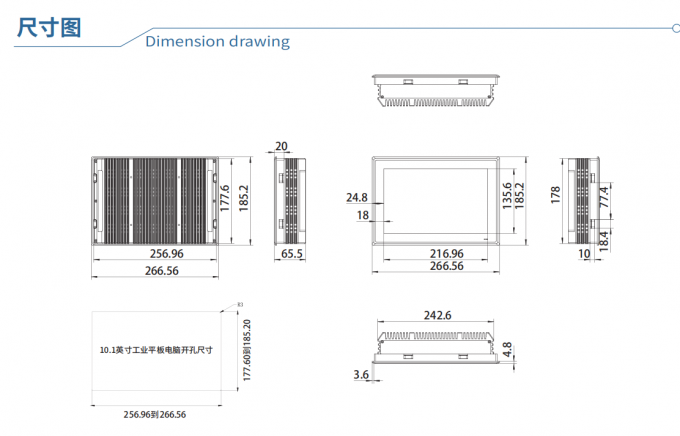

Product Dimensions
I/O Interface Configuration
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen

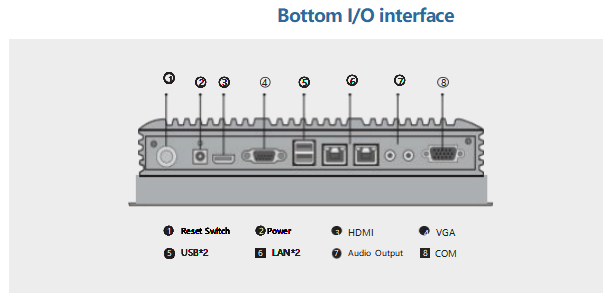

I/O Interface Configuration
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen

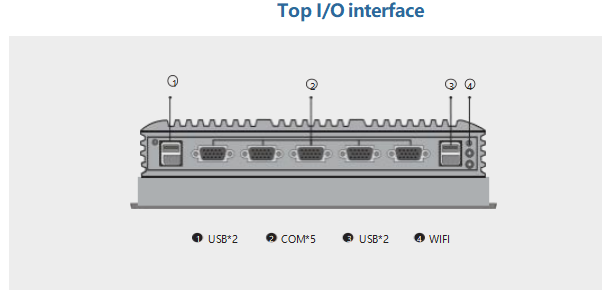

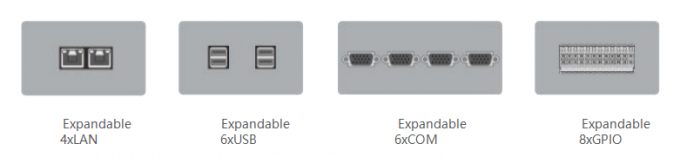

Extensible Interface
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen
Extensible Interface Details
Product Specifications
Specification Details
CPU J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory 4G/8G/16G/32G/64G
Storage 64G/128G/256G/512G/1TB/2TB
Touch Type Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support Windows 7/8/10, Linux, Android
LCD Display 10.1" XGA TFT (1280*800)
Active Area 135.6mm * 216.96mm
Viewing Angle 89° (L/R/T/B)
Brightness 350 cd/m²
I/O Interfaces 2*RJ-45, 2*USB3.0, 2*USB2.0, 1*RS232/485, 5*RS232, Mini-PCIe slot
Dimensions 185.20 * 266.56mm * 65.50mm
Power Input DC 12V (9-30V optional)
Operating Temperature -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods
Embedded Snap-In Mounting
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen

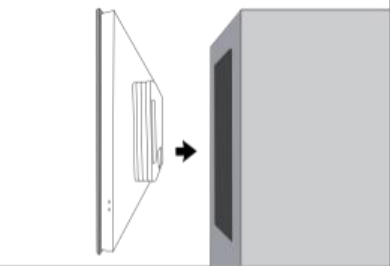

1. Cabinet pre-drilled holes
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen
2. Tighten screws and nuts
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen

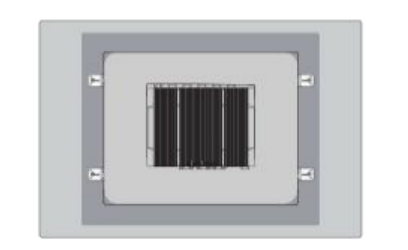

3. Fix clips at threaded holes
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen
4. Secure equipment in place
Desktop Mounting
Wide Temperature Industrial PC HMI 10.1 Inch Fanless Touch Screen

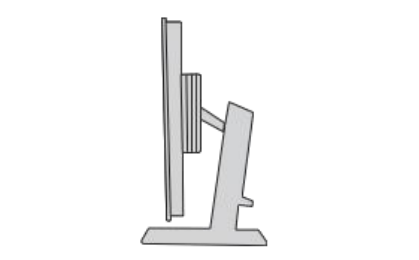

Desktop Mounting Configuration
Cantilever Mounting

Cantilever mounting option available for flexible installation requirements.

Packing List
No. Item Quantity
1 Industrial Panel PC 1 unit
2 Power Adapter 1 unit
3 3-pin 5.08 Power Terminal Plug (optional) 1 unit
4 Embedded Snap-In Kit (optional) 1 set
5 Wall-Mount Bracket (Optional) 1 unit
6 Certificate of Conformity 1 sheet
7 Warranty Card 1 sheet
8 User Manual 1 copy
Ordering Information
No. Name Description
1 Ethernet Port Default single port; optional dual or quad ports
2 Serial Port Default 2 * RS232; optional 6 * RS232/RS485
3 USB Default 4 * USB (2 * USB 2.0, 2 * USB 3.0); optional 8 * USB
4 GPIO Optional 4 input / 4 output
Safety Warnings
  • This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
  • Do not place in humid environments to prevent condensation and component damage.
  • Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
  • Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
  • Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
