10.1 Inch Industrial Computer Monitor Embedded IP65 Touchscreen Monitor
10.1 Inch Industrial Computer Monitor Embedded IP65 Touchscreen Monitor
10.1 Inch Industrial Computer Monitor Embedded IP65 Touchscreen Monitor
10.1 Inch Industrial Computer Monitor Embedded IP65 Touchscreen Monitor
10.1 Inch Industrial Computer Monitor Embedded IP65 Touchscreen Monitor
10.1 Inch Industrial Computer Monitor Embedded IP65 Touchscreen Monitor
10.1 Inch Industrial Computer Monitor Embedded IP65 Touchscreen Monitor
10.1 Inch Industrial Computer Monitor Embedded IP65 Touchscreen Monitor
Specifications
Outline :
118.5×84.7×5.2 mm
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Price :
$145-165/pieces
Packaging Details :
BOX
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Payment Terms :
T/T
Supply Ability :
5K/month
Viewing Area :
116.2mm×87.1mm
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
Operating_Temperature :
-20°C to 70°C
Place of Origin :
Guangdong, China
Delivery Time :
15 work days
Brand Name :
XXT
Name :
Industrial Computer Monitor
MOQ :
300
Color Gamut :
72 % of NTSC(Typ.)
Model Number :
YCXX28-101
Drive System :
a-Si TFT active matrix
Description
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
Detail Information
Place of Origin
Guangdong, China
Brand Name
XXT
Certification
CE,EMC
Model Number
YCXX28-101
Document
Type:
Monitor
Display Size:
10.1 Inch
Supplier Type:
Factory
Backlight Type:
LED
Resolution:
1280*800
Brightness:
300
Operating Temperature:
-10-60
Brand:
BOE
Display Type:
IPS
Mounting Type:
Embedded
Operating System:
Windows 7/8/10 / Linux/ VxWorks/ QNX/Android11/12/13
Touch:
USB Interface Multi-touch
Audio:
Realtek ACL662 Audio Controller
I/O Interface:
HDMI/RJ45/VGA/DC/DVI
Outline Dimension:
283.7*186.2*59.9mm
Power Supply:
DC 12V
Power Input:
AC 100-240V 50/60Hz (CCC, CE Certified)
Highlight:

10.1 inch IP65 industrial monitor

,

wide temperature touch display

,

multi-touch embedded industrial monitor

Product Description
YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
The YCXX28-101 10.1-inch industrial touch display features a 1280*800 resolution with wide temperature range, pressure-resistant multi-touch capabilities, and IP65 rating. This compact embedded monitor is built with a full aluminum alloy structure featuring fanless, fully enclosed design and low power consumption, specifically engineered for diverse environmental conditions to ensure long-term stable operation in harsh industrial settings.
10.1 Inch Industrial Computer Monitor Embedded IP65 Touchscreen Monitor 10.1 Inch Industrial Computer Monitor Embedded IP65 Touchscreen Monitor 10.1 Inch Industrial Computer Monitor Embedded IP65 Touchscreen Monitor
Robust Construction for Industrial Applications
The compact design supports multiple installation methods. Built with military-grade aluminum alloy structure and efficient heat dissipation design (compatible with fans), this monitor ensures stable operation in harsh environments while increasing service life, safety, and efficiency with zero noise operation.
Key Features
  • RTD2483 Chip for high-performance processing
  • Full military-grade aluminum alloy construction for high temperature, corrosion, and pressure resistance
  • Fine workmanship and long service life suitable for harsh environments
  • Efficient heat dissipation design compatible with fan cooling
  • Simplified interior without redundant wiring for uninterrupted operation
  • Capacitive touch screen with intuitive operation and high durability
  • Compatible with resistive touch technology
  • Comprehensive input and output interfaces for connecting various equipment
10.1 Inch Industrial Computer Monitor Embedded IP65 Touchscreen Monitor
Technical Specifications
Panel Parameters
Parameter Specification
Size 10.1"
Resolution 1280*800
View Angle 85/85/85/85 (L/R/U/D)
Color Chroma: 16.7M
Brightness 300 cd/m²
Contrast 600:1
Response Time 6.5 ms
Display Area 135.36(H) X216.576(V) mm
Pixel Pitch 0.1692(H) X 0.1692(V)
Screen & I/O Parameters
Parameter Specification
Touch Type Capacitive touch screen
Resolution 500DPI
Input Method Handwriting or capacitive pen
Surface Hardness 7H
Calibration Supported
HDMI Support HDMI data output, up to 1080P
RJ45 Touch interface
VGA 1 port
DVI 1 port
Earphone Jack 3.5mm standard interface
Hardware Configuration
Component Specification
CPU RTD2483
System Language English, Chinese
Video Input PC-RGB: Format up to 1920*1080@60HZ, Color 16bit, 24bit, 32bit
Key Functions AUTO, MENU, POWER, LEFT, RIGHT
Power Specifications
Parameter Specification
DC Input DC 12~24V
Power Consumption (Max) 15W
Power Input AC 100-240V 50/60Hz (CCC, CE certified)
Power Output DC12V / 4A

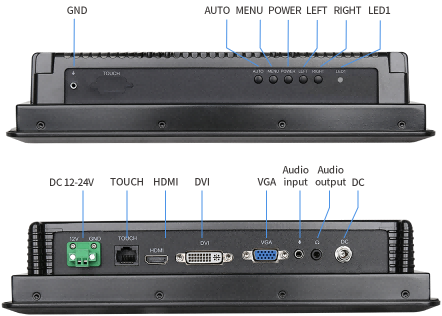

I/O Interface Panel
10.1 Inch Industrial Computer Monitor Embedded IP65 Touchscreen Monitor

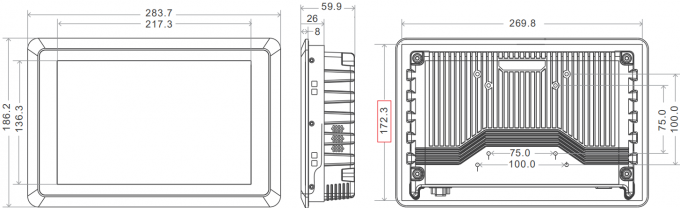

Dimensional Information
10.1 Inch Industrial Computer Monitor Embedded IP65 Touchscreen Monitor
Overall Dimensions: 283.7*186.2*59.9mm(L*W*H)
