10.4 Inch IP65 Touch Screen Monitor 300 Nits Embedded PC Monitor With Wide Temperature Range
10.4 Inch IP65 Touch Screen Monitor 300 Nits Embedded PC Monitor With Wide Temperature Range
Specifications
Brand Name :
XXT
Outline :
118.5×84.7×5.2 mm
Place of Origin :
Guangdong, China
Viewing Area :
116.2mm×87.1mm
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Model Number :
YCXX7-104
Packaging Details :
BOX
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
Operating_Temperature :
-20°C to 70°C
MOQ :
100
Price :
$188-215/pieces
Name :
IP65 Touch Screen Monitor
Payment Terms :
T/T
Delivery Time :
30-45 work days
Color Gamut :
72 % of NTSC(Typ.)
Supply Ability :
5K/month
Drive System :
a-Si TFT active matrix
Description
YCXX7-104 10.4 Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor
Detail Information
Place of Origin
Guangdong, China
Brand Name
XXT
Certification
CE,EMC
Model Number
YCXX7-104
Document
Type:
Monitor
Display Size:
10.4 Inch
Supplier Type:
Factory
Backlight Type:
LED
Resolution:
1024*768
Brightness:
300
Operating Temperature:
-10-60
Brand:
BOE
Display Type:
IPS
Mounting Type:
Embedded
Operating System:
Windows 7/8/10 / Linux/ VxWorks/ QNX/Android11/12/13
Touch:
USB Interface Multi-touch
Audio:
Realtek ACL662 Audio Controller
I/O Interface:
HDMI/RJ45/VGA/DC/DVI
Outline Dimension:
277.9*225.3*64.5mm(L*W*H)
Power Supply:
DC 12V
Power Input:
AC 100-240V 50/60Hz (CCC, CE Certified)
Highlight:

10.4 inch Industrial Touch Display

,

IP65 Embedded Monitor

,

Wide Temperature Range Industrial Monitor

Product Description
YCXX7-104 10.4-Inch IP65 Industrial Touch Display
The YCXX7-104 10.4-inch industrial touch display features a 1280*800 resolution with wide temperature range, pressure-resistant multi-touch capabilities, and IP65 rating. This compact embedded monitor is built with a full aluminum alloy structure featuring fanless, fully enclosed design and low power consumption, specifically engineered for diverse environmental conditions to ensure long-term stable operation in harsh industrial settings.
10.4 Inch IP65 Touch Screen Monitor 300 Nits Embedded PC Monitor With Wide Temperature Range10.4 Inch IP65 Touch Screen Monitor 300 Nits Embedded PC Monitor With Wide Temperature Range10.4 Inch IP65 Touch Screen Monitor 300 Nits Embedded PC Monitor With Wide Temperature Range
Robust Construction for Industrial Applications
The compact design supports multiple installation methods. Built with military-grade aluminum alloy structure and efficient heat dissipation design (compatible with fans), this monitor ensures stable operation in harsh environments while increasing service life, safety, and efficiency with zero noise operation.
Key Features
  • RTD2483 Chip for high-performance processing
  • Full military-grade aluminum alloy construction for high temperature, corrosion, and pressure resistance
  • Fine workmanship and long service life suitable for harsh environments
  • Efficient heat dissipation design compatible with fan cooling
  • Simplified interior without redundant wiring for uninterrupted operation
  • Capacitive touch screen with intuitive operation and high durability
  • Compatible with resistive touch technology
  • Comprehensive input and output interfaces for connecting various equipment
10.4 Inch IP65 Touch Screen Monitor 300 Nits Embedded PC Monitor With Wide Temperature Range
Technical Specifications
Panel Parameters
Parameter Specification
Size 10.4"
Resolution 1024*768
View Angle 75/75/70/75 (L/R/U/D)
Color Chroma: 16.7M
Brightness 300 cd/m²
Contrast 800:1
Response Time 6.5 ms
Display Area 154.214 * 85.92 mm
Pixel Pitch 0.192*0.192 (H*V)
Screen & I/O Parameters
Parameter Specification
Touch Type Capacitive touch screen
Resolution 500DPI
Input Method Handwriting or capacitive pen
Surface Hardness 7H
Calibration Supported
HDMI Support HDMI data output, up to 1080P
RJ45 Touch interface
VGA 1 port
DVI 1 port
Earphone Jack 3.5mm standard interface
Hardware Configuration
Component Specification
CPU RTD2483
System Language English, Chinese
Video Input PC-RGB: Format up to 1920*1080@60HZ, Color 16bit, 24bit, 32bit
Key Functions AUTO, MENU, POWER, LEFT, RIGHT
Power Specifications
Parameter Specification
DC Input DC 12~24V
Power Consumption (Max) 15W
Power Input AC 100-240V 50/60Hz (CCC, CE certified)
Power Output DC12V / 4A

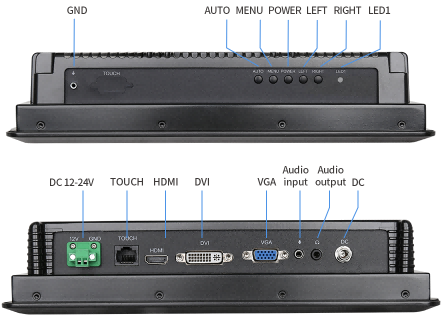

I/O Interface Panel
10.4 Inch IP65 Touch Screen Monitor 300 Nits Embedded PC Monitor With Wide Temperature Range

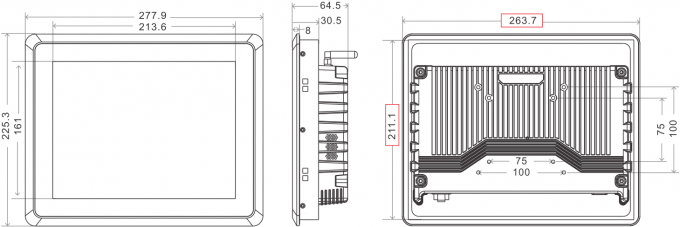

Dimensional Information
10.4 Inch IP65 Touch Screen Monitor 300 Nits Embedded PC Monitor With Wide Temperature Range
Overall Dimensions: 277.9 * 225.3 * 64.5mm (L * W * H)
