Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range
Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range
Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range
Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range
Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range
Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range
Specifications
Price :
$236-256/pieces
Outline :
118.5×84.7×5.2 mm
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Viewing Area :
116.2mm×87.1mm
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
Operating_Temperature :
-20°C to 70°C
Payment Terms :
T/T
MOQ :
300
Color Gamut :
72 % of NTSC(Typ.)
Supply Ability :
5K/month
Delivery Time :
10 work days
Drive System :
a-Si TFT active matrix
Name :
Fanless Industrial Panel PC
Description
21.5 Inch IP65 Rated Fanless Industrial Monitor and HMI Industrial Computer with Wide Temperature Range
Product Overview

21.5 Inch H Type Industrial Panel PC Embedded Touch Screen PC IP65 Fanless HMI Industrial Intelligent Industrial Computer

Place of Origin: Guangdong, China
Brand Name: XXT
Model Number: PC 215H
Type: Industrial Computer
Display Size: 21.5 Inch
Supplier Type: Factory
Outline Dimension: 520mm*311.8mm*55.98mm
Packing Dimensions: 600 *445 * 120mm
Net Weight: 5.3KG
Gross Weight: 6.5KG
Waterproof: Front Panel Protection: IP65 Rated
Product Features
  • Precision CNC Milling: High-precision CNC machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
  • Ultra-narrow Reinforced TP: Touch frame features an 18mm narrow bezel and 2mm reinforced design, enhancing surface hardness and anti-interference capability.
  • Full Aluminum Construction: Front panel designed to IP65 standard for water and dust protection, providing high overall airtightness and good electromagnetic compatibility (EMC).
  • Fanless Heat Dissipation: Utilizes copper heat blocks combined with heat pipes for efficient continuous thermal management.
  • Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination.
  • Industrial LCD Panel: Original A+ grade LCD module with wide temperature range and high brightness.
  • I/O Interfaces: Supports 4 Ethernet ports, 6 USB ports, and 8 COM ports with customization options.
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C).
  • Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations.
  • 24/7 Operation: Designed for continuous operation with robust performance and long service life.

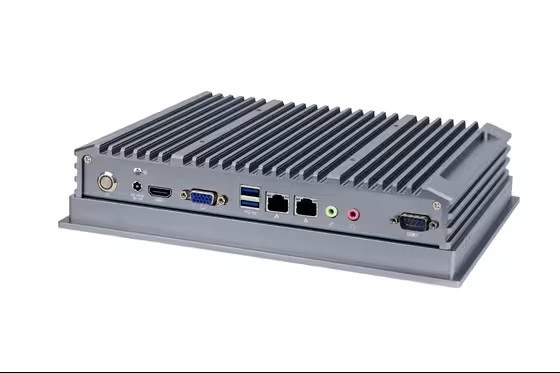

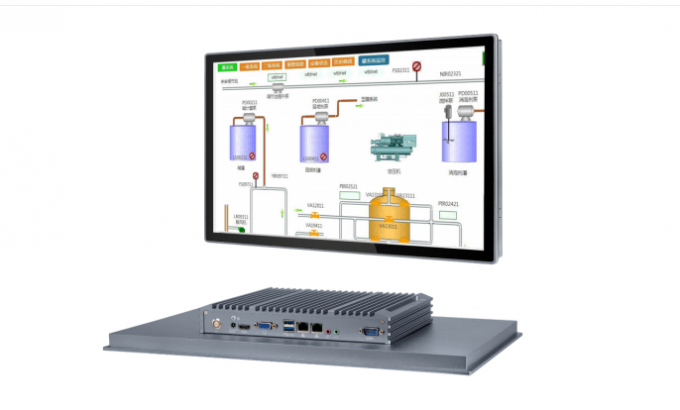

Product Views
Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range

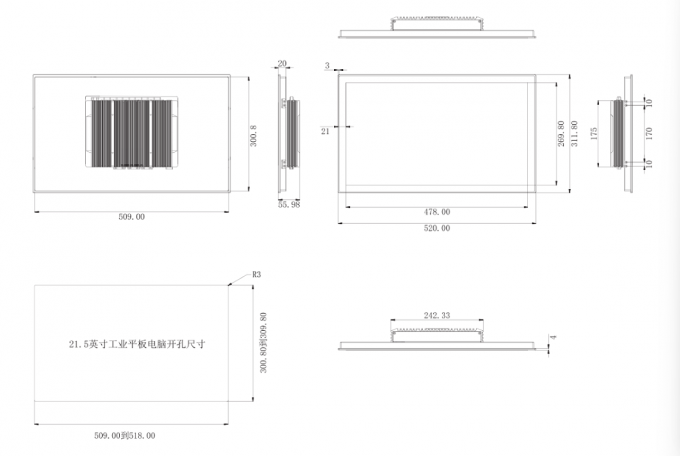

Product Dimension
Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range

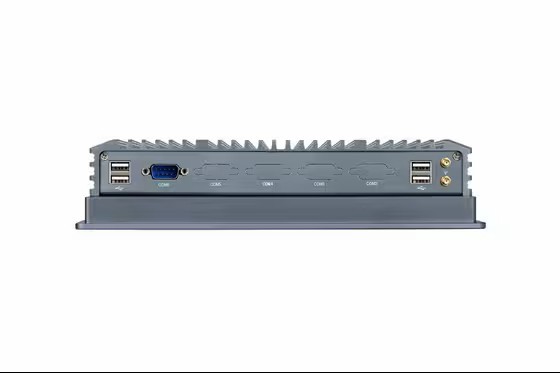

I/O Interface Diagram
Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range
Product Specifications
CPU J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory 4G/8G/16G/32G/64G
Storage 64G/128G/256G/512G/1TB/2TB
Touch Type Multi-point Capacitive / 5-Wire Resistive Touch Driver
Support Windows 7/8/10, Linux, Android
LCD Display 21.5" XGA TFT (1920*1080)
Active Area 478mm*269.8mm
Viewing Angle 89° (L/R/T/B)
Brightness 350 cd/m²
I/O Interfaces 2*RJ-45, 2*USB3.0, 2*USB2.0, 1*RS232/485, 5*RS232, Mini-PCIe slot
Dimensions 520mm*311.8mm*55.98mm
Power Input DC 12V (9-30V optional)
Operating Temp -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods

Embedded Installation:

1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.

Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range

2. Tighten the long screws and nuts onto the snap fasteners.

Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range

3. Four clips are fixed at the threaded hole positions on both sides.

Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range

4. Tighten the long screws to secure the equipment in place.

Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range

Desktop Mounting:

Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range

Cantilever Mounting:

Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range
Packing List
No. Item Qty
1 Industrial Panel PC 1 unit
2 Power Adapter 1 unit
3 3-pin 5.08 Power Terminal Plug (optional) 1 unit
4 Embedded Snap-In Kit (optional) 1 set
5 Wall-Mount Bracket (Optional) 1 unit
6 Certificate of Conformity 1 sheet
7 Warranty Card 1 sheet
8 User Manual 1 copy
Ordering Information
No. Name Description
1 Ethernet Port Default single port; optional dual or quad ports
2 Serial Port Default 2 * RS232; optional 6 * RS232/RS485
3 USB Default 4 * USB (2 * USB 2.0, 2 * USB 3.0); optional 8 * USB
4 GPIO Optional 4 input / 4 output
Safety Warnings

• This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.

• Do not place in humid environments to prevent condensation and component damage.

• Avoid prolonged direct sunlight or high UV environments to prevent screen damage.

• Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.

• Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
