8 Ton Telescopic Truck Mounted Crane , Construction Service Truck With Crane
8 Ton Telescopic Truck Mounted Crane , Construction Service Truck With Crane
8 Ton Telescopic Truck Mounted Crane , Construction Service Truck With Crane
8 Ton Telescopic Truck Mounted Crane , Construction Service Truck With Crane
8 Ton Telescopic Truck Mounted Crane , Construction Service Truck With Crane
8 Ton Telescopic Truck Mounted Crane , Construction Service Truck With Crane
8 Ton Telescopic Truck Mounted Crane , Construction Service Truck With Crane
8 Ton Telescopic Truck Mounted Crane , Construction Service Truck With Crane
Specifications
Crane Brand :
S-Any, Clw, etc.
Place of Origin :
CHINA
Brand Name :
CLW
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Shaft Number :
2
Crane Jib :
Four-Arm
Origin :
Suizhou, China
Model NO. :
CLW5089SCD
HS Code :
8705909990
Gearbox :
8forwards & 1reverse
Specification :
5ton, 6ton, 8ton, 9ton, 10ton
Name :
Truck Mounted Crane
Trademark :
CLW
Condition :
New
Type :
Straight Arm
Boom Type :
Straight 4-Arm Telescopic Boom
Cargo Thickness :
Side 1.5mm, Bottom 2.5mm
Maximum Lifting Height :
15-20m
Crane Boom Type :
Straight Telescopic Crane, Knuckle Crane
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Chassis Brand :
Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
Production Capacity :
500 Unit/Month
Maximum Lifting Weight :
8-10t
Cargo Material :
Q235 Carbon Steel
Crane Capacity :
5ton, 6ton, 8ton, 9ton, 10ton, etc.
MOQ :
1
Price :
15000-35000 per unit
Engine Brand :
Yuchai, 180HP
Description

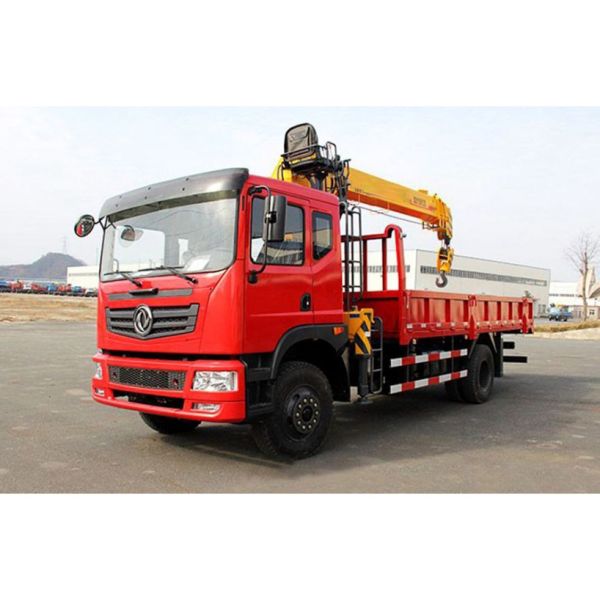

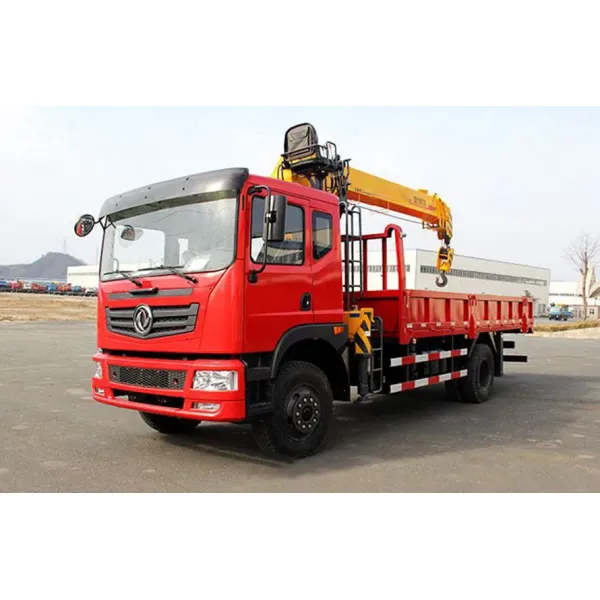

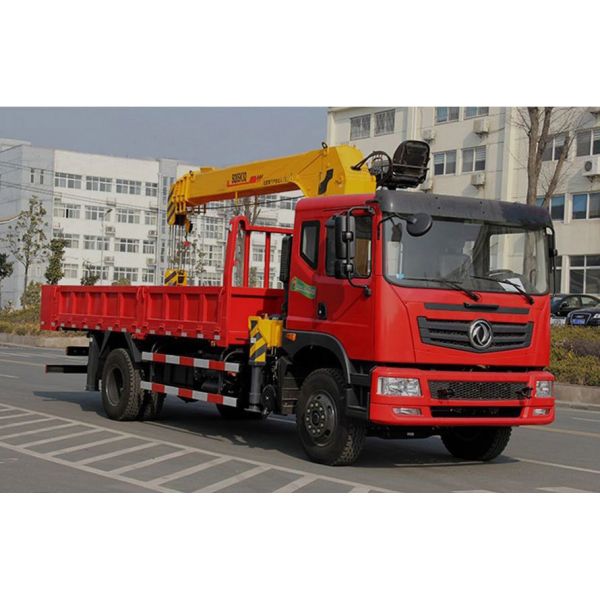

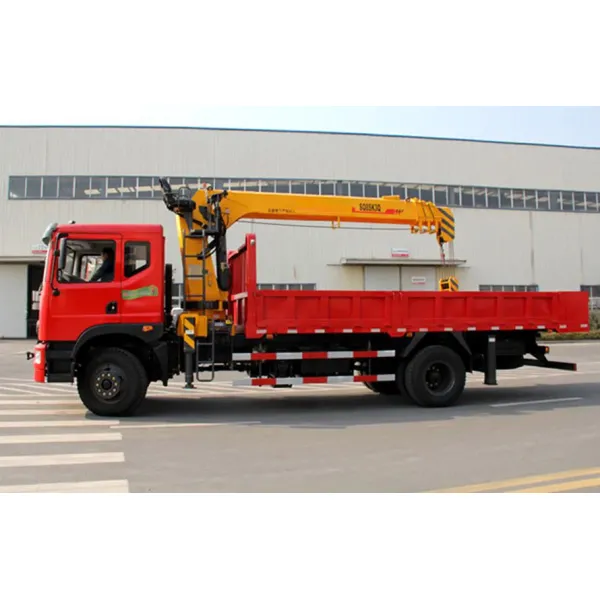

China Dongfeng Cheap Price with High Quality 8 ton Construction Service Truck with Crane
Product Description

1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)

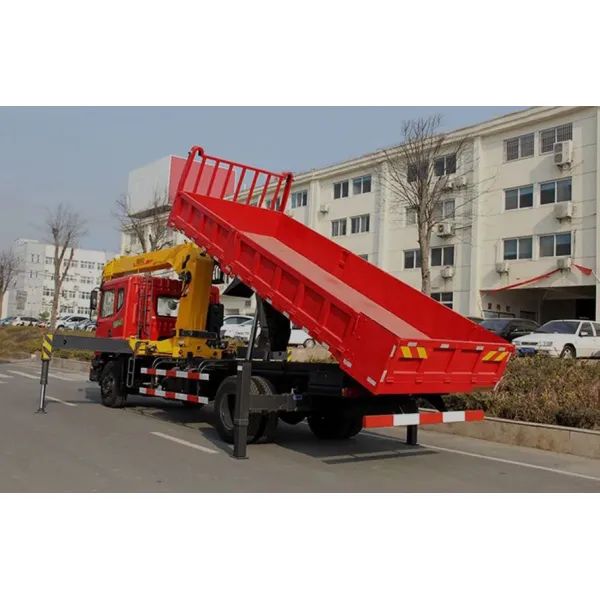

3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification
General Technical Parameters
Overall Dimension9000×2500×3850 (mm)
Gross Vehicle Weight18500(Kg)
Curb Weight11380(Kg)
Chassis Specification
Chassis BrandDongfeng
Drive model4*2
CabinDouble, Left Hand Driving, with air conditional
Number of Passengers3




Engine

Model4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power
132KW/180HP
Emission standardEURO 3
Displacement6500(ml)
Fuel typeDiesel
Gearbox8Forwards & 1Reverse
Brake SystemAir break
Wheel Base5100mm
Front/Rear Axle Loading8000/11500(Kg)
Approach/Departure Angle23/12(°)
Overhang1250/3545(mm)
Tire11.00R20
Max Driving Speed90(km/h)
Upperstructure Specification


Cargo Body

Dimension6000×2300×550(mm)
MaterialQ235 carbon steel
Cargo ThicknessSide 1.5mm, Bottom 2.5mm









Working System

Boom TypeStraight 3-Arm telescopic boom






Crane

Crane BrandS-ANY or CLW
Range of Sprayer30m
Max Lifting Moment25(T.M)
Max Lifting Capacity8000(kg)
Max lifting height12(m)
Rotation angle360(°)
Installation space1150(mm)
Recommented power30(kw)
Maximum working pressure26(Mpa)
Max Flow63(l/min)
Crane weight3800(kg)
Oil tank capacity160(L)
LegLeg typeH type
Leg Span2.28-5.9(m)
Hydraulic systemPressure18(M pa)
Capacity70(l)
Other ConfigurationControl system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
OptionsCaution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
