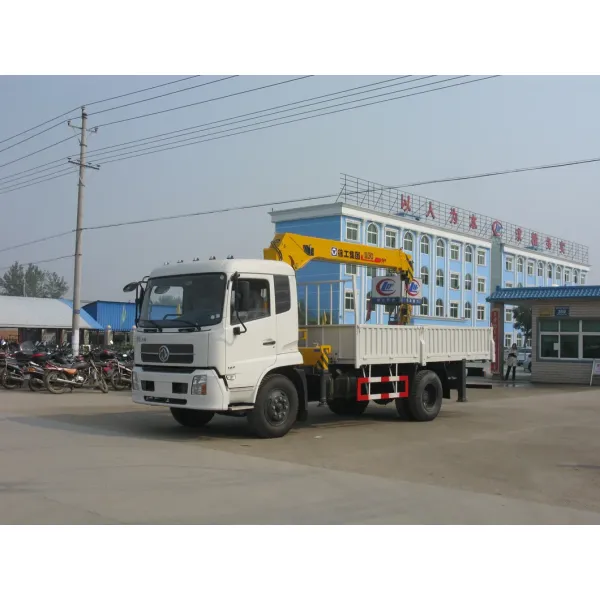

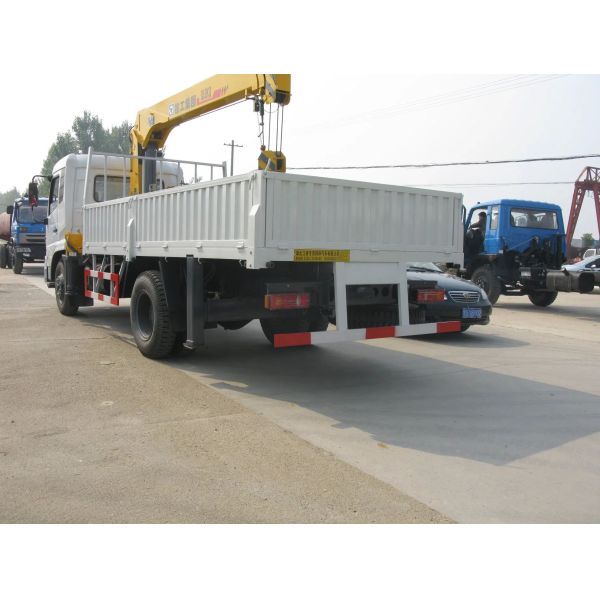

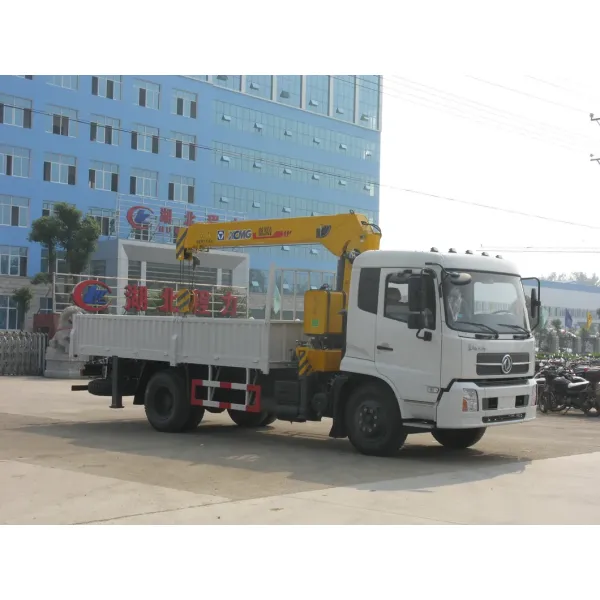

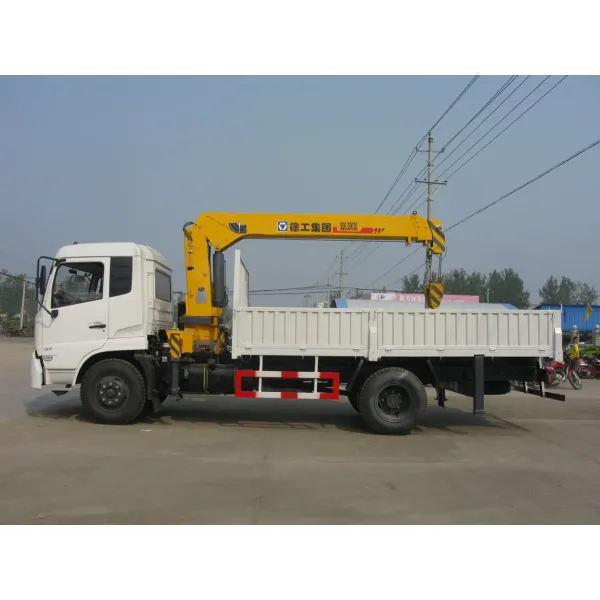

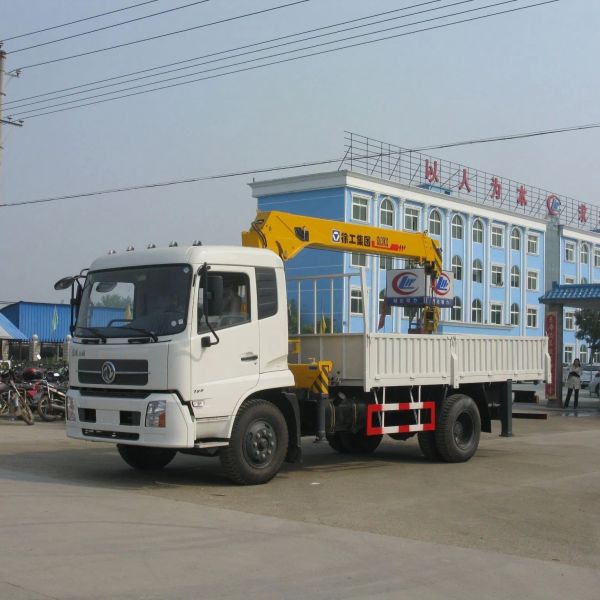

4*2 Dongfeng Truck Mounted with 8 Ton Knuckle Arm Crane Truck
4*2 Dongfeng Truck Mounted with 8 Ton Knuckle Arm Crane Truck
4*2 Dongfeng Truck Mounted with 8 Ton Knuckle Arm Crane Truck
4*2 Dongfeng Truck Mounted with 8 Ton Knuckle Arm Crane Truck
4*2 Dongfeng Truck Mounted with 8 Ton Knuckle Arm Crane Truck
4*2 Dongfeng Truck Mounted with 8 Ton Knuckle Arm Crane Truck
4*2 Dongfeng Truck Mounted with 8 Ton Knuckle Arm Crane Truck
4*2 Dongfeng Truck Mounted with 8 Ton Knuckle Arm Crane Truck
4*2 Dongfeng Truck Mounted with 8 Ton Knuckle Arm Crane Truck
4*2 Dongfeng Truck Mounted with 8 Ton Knuckle Arm Crane Truck
Specifications
MOQ :
1
Price :
15000-35000 per unit
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Place of Origin :
CHINA
Brand Name :
CLW
Model NO. :
CLW5089SCD
Condition :
New
Maximum Lifting Height :
15-20m
Maximum Lifting Weight :
8-10t
Shaft Number :
2
Crane Jib :
Four-Arm
Type :
Straight Arm
Chassis :
Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
Gearbox :
8forwards & 1reverse
Crane Capacity :
5ton, 6ton, 8ton, 9ton, 10ton, etc.
Boom Type :
Straight 4-Arm Telescopic Boom
Cargo Thickness :
Side 1.5mm, Bottom 2.5mm
Engine Brand :
Yuchai, 180HP
Crane Boom Type :
Straight Telescopic Crane, Knuckle Crane
Cargo Material :
Q235 Carbon Steel
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Specification :
5ton, 6ton, 8ton, 9ton, 10ton
Trademark :
CLW
Origin :
Suizhou, China
HS Code :
8705909990
Production Capacity :
500 Unit/Month
Name :
Truck Mounted Crane
Description
4*2 Dongfeng Truck Mounted with 8 Ton Knuckle Arm Crane Truck
Product Description
  • Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
  • Main parts: Crane. (Different lifting capacities match different chassis.)
  • Advantage: One truck combines the functions of crane and dump truck.
Product Specification
General Technical Parameters
Overall Dimension 9000×2500×3850 (mm)
Gross Vehicle Weight 18500(Kg)
Curb Weight 11380(Kg)
Chassis Specification
Chassis Brand Dongfeng
Drive model 4*2
Cabin Double, Left Hand Driving, with air conditional
Number of Passengers 3





Engine

 Model 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power
132KW/180HP
Emission standard EURO 3
Displacement 6500(ml)
Fuel type Diesel
Gearbox 8Forwards & 1Reverse
Brake System Air break
Wheel Base 5100mm
Front/Rear Axle Loading 8000/11500(Kg)
Approach/Departure Angle 23/12(°)
Overhang 1250/3545(mm)
Tire 11.00R20
Max Driving Speed 90(km/h)
Upperstructure Specification


Cargo Body

 Dimension 6000×2300×550(mm)
Material Q235 carbon steel
Cargo Thickness Side 1.5mm, Bottom 2.5mm













Working System

 Boom Type Straight 3-Arm telescopic boom








Crane

 Crane Brand CLW
Range of Sprayer 30m
Max Lifting Moment 25(T.M)
Max Lifting Capacity 8000(kg)
Max lifting height 12(m)
Rotation angle 360(°)
Installation space 1150(mm)
Recommented power 30(kw)
Maximum working pressure 26(Mpa)
Max Flow 63(l/min)
Crane weight 3800(kg)
Oil tank capacity 160(L)
Leg Leg type H type
Leg Span 2.28-5.9(m)
Hydraulic system Pressure 18(M pa)
Capacity 70(l)
Other Configuration Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
