Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Cargo Thickness :
2mm
Transmit :
Hydraulic
Tire :
11.00r20
Material :
Carbon Steel
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Certification :
GS, RoHS, CE, ISO9001
MOQ :
1
Price :
15000-35000 per unit
Maximum Lifting Weight :
8-10t
Origin :
Suizhou, China
HS Code :
8705909090
Type :
Straight Arm
Engine :
210HP
Condition :
New
Chassis Brand :
Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
Working Range :
8m
Maximum Lifting Height :
10-15m
Model NO. :
CLW9485SCQ6
Production Capacity :
500 Unit/Month
Air Condition :
Include
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Loading Weight :
20tons
Shaft Number :
2
Crane Jib :
Four-Arm
Specification :
11550x2500x3850
Rotate :
360 Degree
Trademark :
CLW
Name :
Truck Mounted Crane
Description
Factory Price China Dongfeng/HOWO/Foton/lsuzu/FAW 6.3ton 8ton 6X2 Truck with Crane
Product Description
  • Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
  • Main parts: Crane. (Different lifting capacities match different chassis.)
  • Advantage: One truck combines the functions of crane and dump truck.
Product Parameters
Vehicle information Items Technical parameters
Brand of chassis DONGFENG
Overall dimensions ( L * W * H) 11550x2500x3850 mm
Cargo dimension ( L * W * H) 7800 x 2300 x 500
Wheel base 4500+1350 mm
Axle load (kgs) 5/10+10
Tire 11.00R20 (6+1 spare)
Engine B210
Emission Standard Euro 3
Engine horsepower 210 HP
Front overhang and rear overhang 1415/1975 mm
Approach angle /Departure angle 24/13
Cabin seat 2+3
Max.speed 85 km/h
Operation control system Steering wheel
Model SQ10SA3 Unit
Max Lifting Capacity 10000 kg
Max Lifting Moment 25 T.M
Rotation Angle All Rotation, hydraulic
Crane Weight 1050 kg
Oversize (H x W x Thickness) 2118 x 2000 x 556 mm

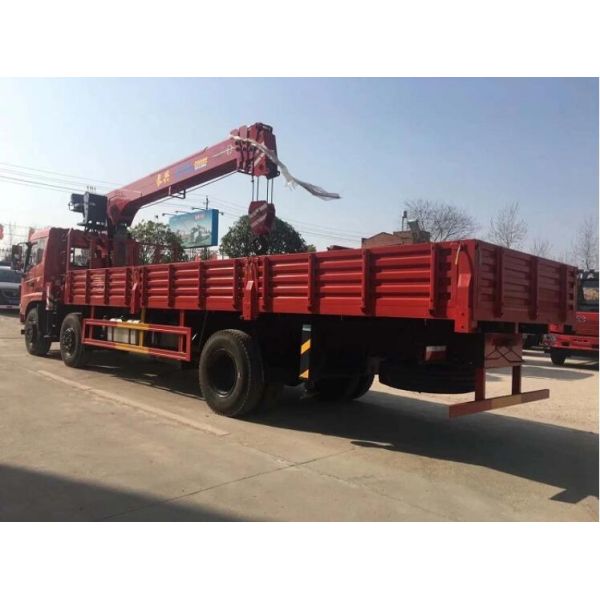

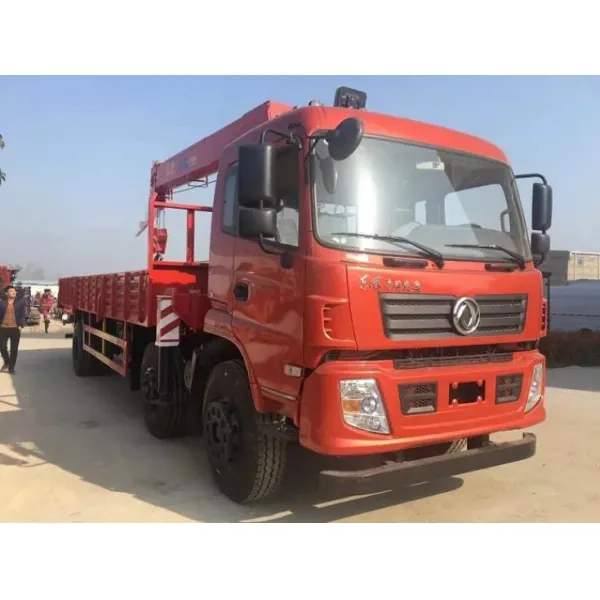

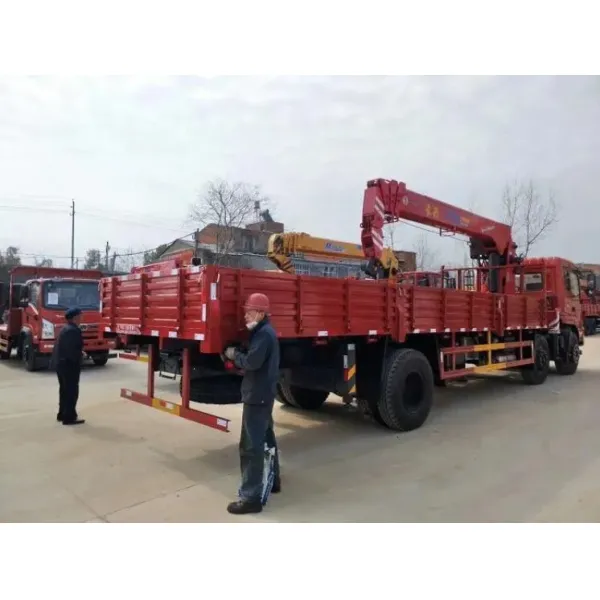

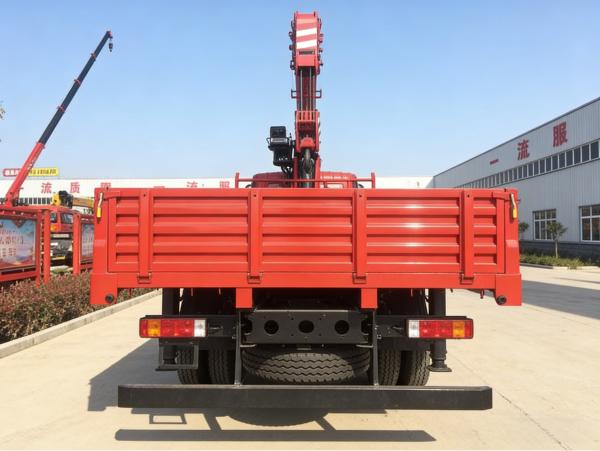

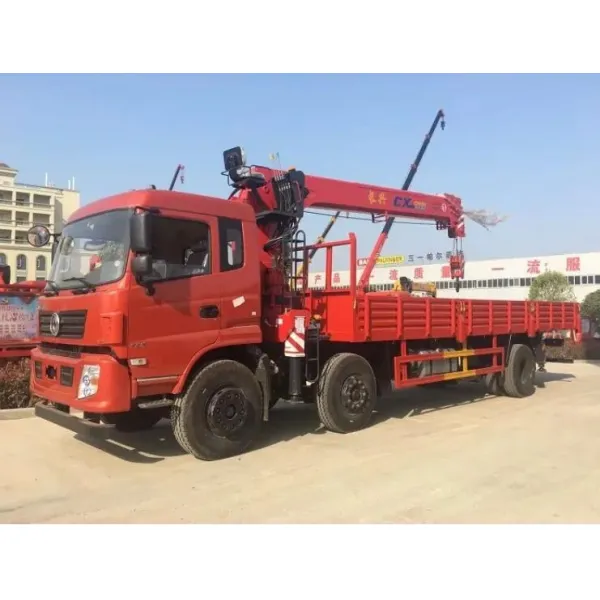

Detailed Photos
