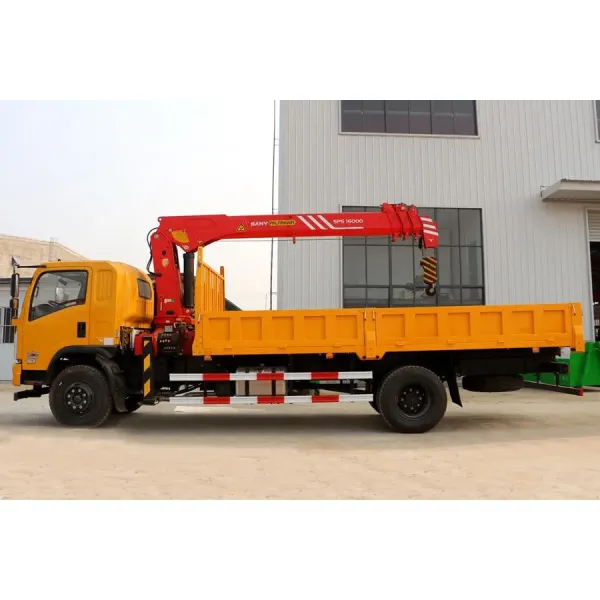

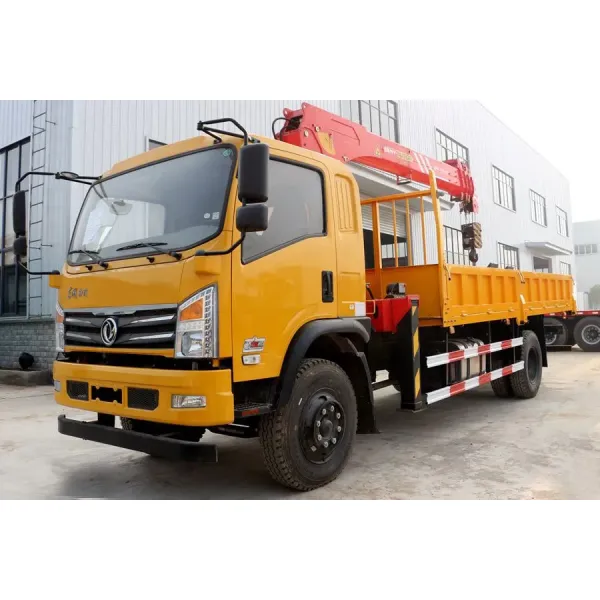

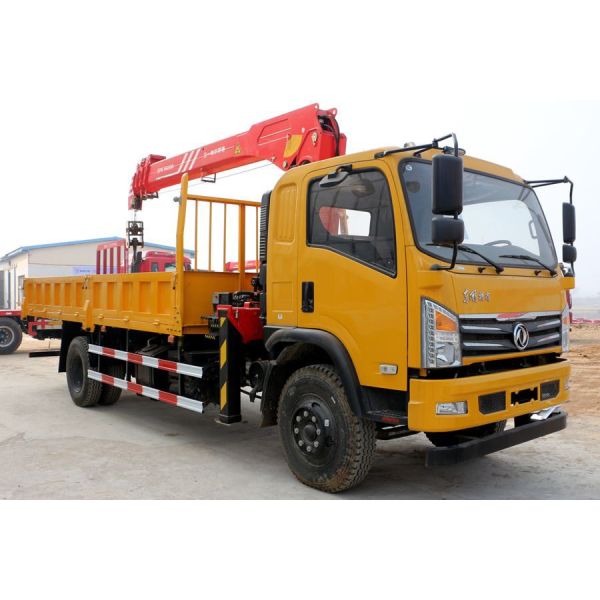

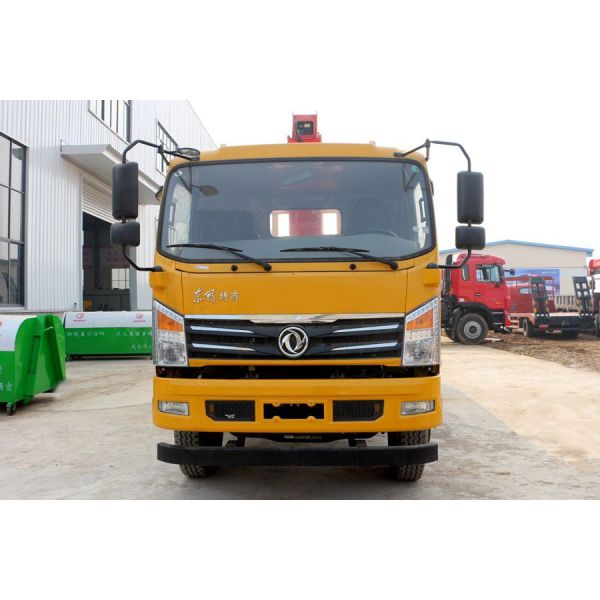

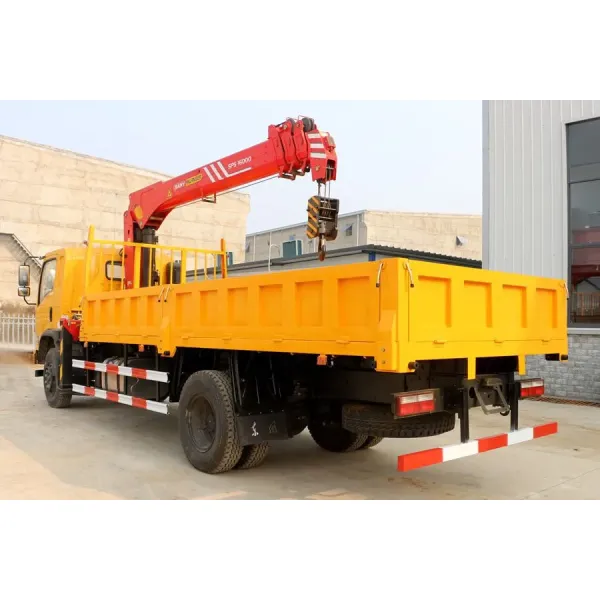

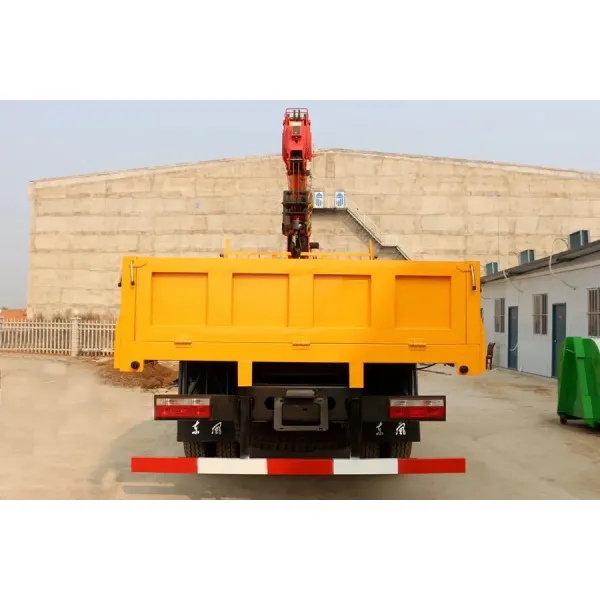

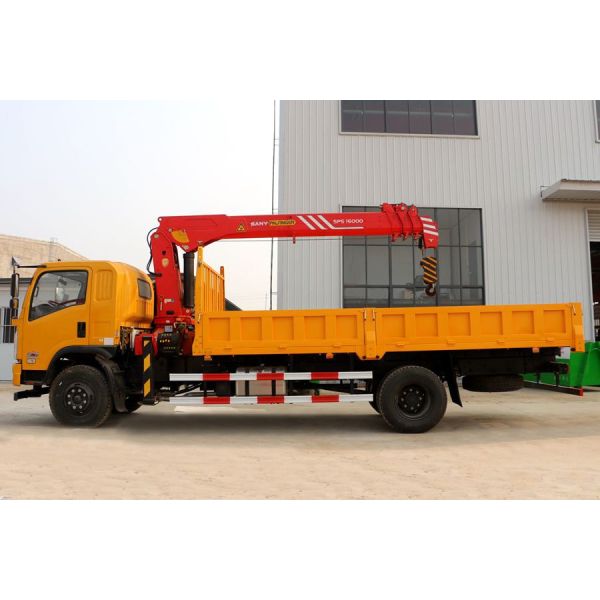

Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Condition :
New
Maximum Lifting Height :
10-15m
Maximum Lifting Weight :
8-10t
Shaft Number :
2
Crane Jib :
Four-Arm
Type :
Straight Arm
Chassis :
Dongfeng
Gearbox :
6 Forward & 1 Reverse Gear
Working Radius :
14 M
Rotation Angle :
360 Degree All Rotation
Logo :
as Per Customer's Request
Engine :
180 HP
Crane Weight :
3820kg
Max Lifting Height :
16.1m
Installation Space :
2280-5600mm
Crane :
8ton
Max. Lifting Capacity :
8000 Kg
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Specification :
9000x2495x3550 mm
Trademark :
CLW
Origin :
Suizhou, China
HS Code :
8705909990
Production Capacity :
500 Unit/Month
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Name :
Truck Mounted Crane
MOQ :
1
Price :
15000-35000 per unit
Description

Light Duty Tow 8t Truck with Rotating Arm Crane

Product Description:

  • Crane Brand of truck mounted straight arm crane: CLW, PALFINGER, Other Chinese Brand
  • Heavy Duty Cargo box.
  • H Shape Hydraulic front & Rear Leg for safety.
  • Folded Arm & Telescopic Straight Arm Crane for option.
  • Crane capacity of truck mounted straight arm crane:2ton,2.5ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton,
  • 14ton,16ton,20ton,25ton

Chassis Specification
Item No. Parameters
Chassis Brand Dongfeng
Overall Dimension 9000X2480X3650mm
Gross Vehicle Weight 13580 kg
Curb Weight 8300 kg
Loading Weight 5805 Kg
Front/rear axle loading capacity 5000/10000kg
Wheel Base 5100 mm
Cabin Single, Left Hand Driving, 2 Passenger Allowed
Engine Type Diesel Engine

Engine horsepower 160 HP EURO II
Gearbox Manual , 6 Forward & 1 Reverse Gear
Brake System Air Brake
Steering Gear Power Assistant
Tire 9.00-20, 6 Pieces with 1 Spare
Max Driving Speed 90 km/h

Cargo compartment
Material Q235
Dimension 5700X2250X550mm
Thickness 3mm for side /4 mm for the bottom

Technical parameter of crane
Crane Model 8 Ton 4 Arms Telescopic Boom Crane
Crane Weight 3820 kg
Max. Lifting capacity 8000 kg
Max lifting height 16.1M
Working radius 14 M
Installation space 2280-5600mm
Rotation angle 360°All rotation
Optional 1. Seat
2. Hydraulic Lift system
3. Landing Leg
Remarks 1. Color is optional
2.Customized LOGO painting as per customer request
