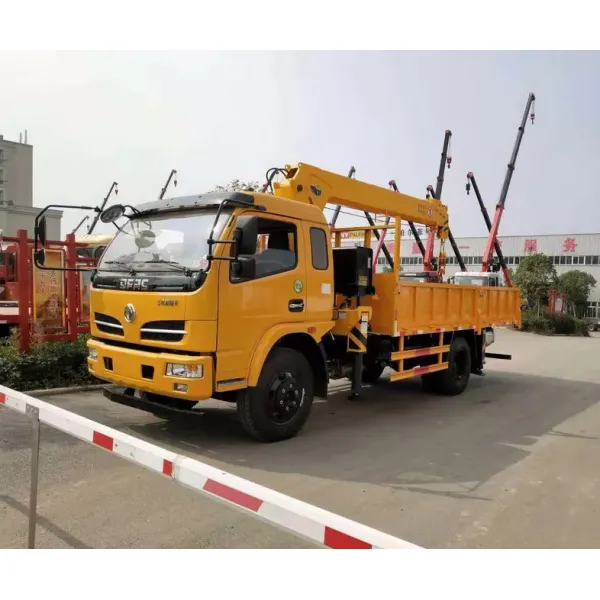

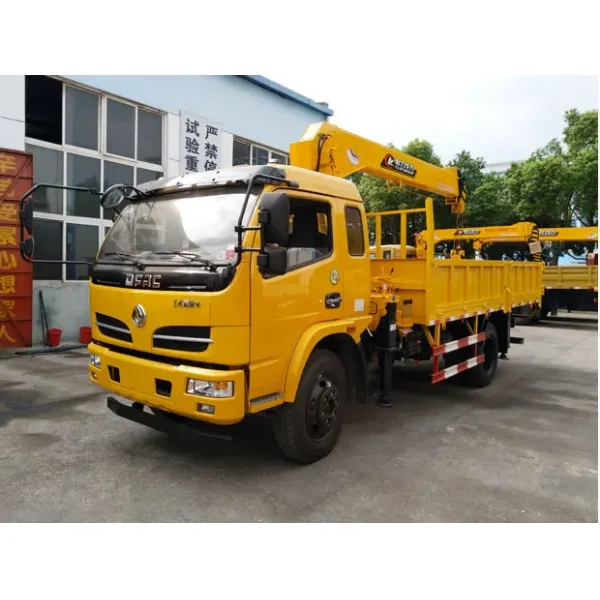

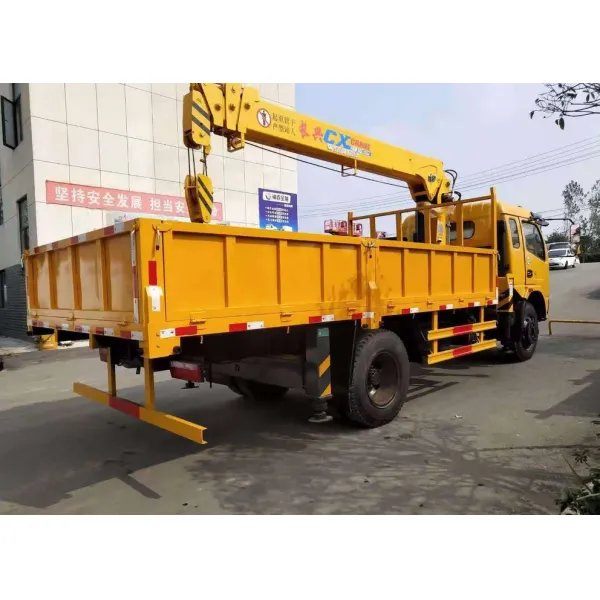

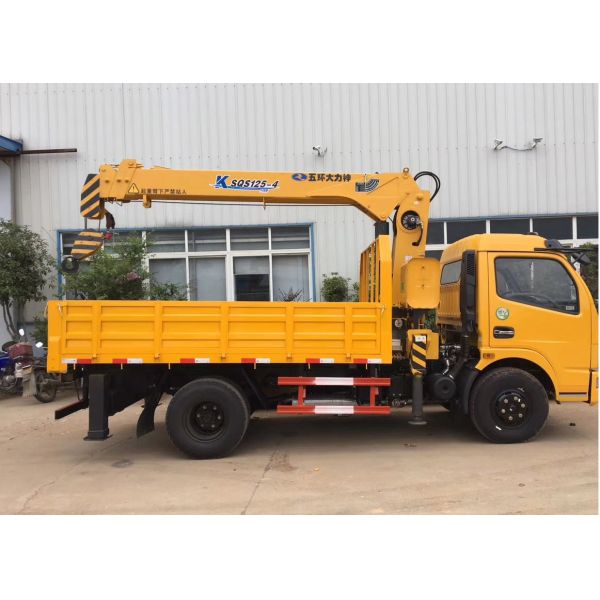

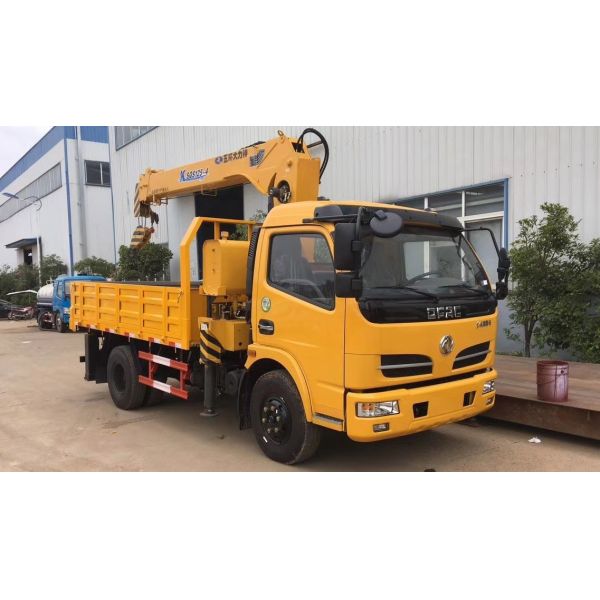

China Construction Machine 2ton 3ton 3.2ton Sinotruk Truck Mounted Crane
China Construction Machine 2ton 3ton 3.2ton Sinotruk Truck Mounted Crane
China Construction Machine 2ton 3ton 3.2ton Sinotruk Truck Mounted Crane
China Construction Machine 2ton 3ton 3.2ton Sinotruk Truck Mounted Crane
China Construction Machine 2ton 3ton 3.2ton Sinotruk Truck Mounted Crane
China Construction Machine 2ton 3ton 3.2ton Sinotruk Truck Mounted Crane
China Construction Machine 2ton 3ton 3.2ton Sinotruk Truck Mounted Crane
China Construction Machine 2ton 3ton 3.2ton Sinotruk Truck Mounted Crane
China Construction Machine 2ton 3ton 3.2ton Sinotruk Truck Mounted Crane
China Construction Machine 2ton 3ton 3.2ton Sinotruk Truck Mounted Crane
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
MOQ :
1
Price :
15000-35000 per unit
Model NO. :
CLW5089SCD
Condition :
New
Maximum Lifting Height :
<10m
Maximum Lifting Weight :
2-4t
Shaft Number :
2
Crane Jib :
Three-Arm
Type :
Straight Arm
Chassis :
Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
Gearbox :
5forwards & 1reverse
Crane Capacity :
2ton, 3ton, 3.2ton, 4ton, etc.
Boom Type :
Straight 3-Arm Telescopic Boom
Cargo Thickness :
Side 1.5mm, Bottom 2.5mm
Engine Brand :
Yuchai, 115HP
Crane Brand :
Chengli, etc.
Crane Boom Type :
Straight Telescopic Crane, Knuckle Crane
Cargo Material :
Q235 Carbon Steel
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Specification :
2ton, 3ton, 3.2ton
Trademark :
CLW
Origin :
Suizhou, China
HS Code :
8705909990
Production Capacity :
500 Unit/Month
Name :
Truck Mounted Crane
Description
Construction 2ton 3ton 3.2ton Hydraulic Engine Crawler Crane Tower Mobile Truck Crane
Product Description
  • Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
  • Main parts: Crane. (Different lifting capacities match different chassis.)
  • Advantage: One truck combines the functions of crane and dump truck.
Product Specification
General Technical Parameters
Overall Dimension 5995×2200×2945 (mm)
Gross Vehicle Weight 4495(Kg)
Curb Weight 3610(Kg)
Chassis Specification
Chassis Brand Dongfeng
Drive model 4*2
Cabin Double, Left Hand Driving, with air conditional
Number of Passengers 2




Engine

 Model 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power 85KW/115HP
Emission standard EURO 3
Displacement 2771(ml)
Fuel type Diesel
Gearbox 5Forwards & 1Reverse
Brake System Air break
Wheel Base 3308mm
Front/Rear Axle Loading 1500/3000(Kg)
Approach/Departure Angle 23/12(°)
Overhang 1250/3545(mm)
Tire 7.00R16
Max Driving Speed 90(km/h)
Upperstructure Specification


Cargo Body

 Dimension 2770×1850×380(mm)
Material Q235 carbon steel
Cargo Thickness Side 1.5mm, Bottom 2.5mm












Working System

 Boom Type Straight 3-Arm telescopic boom






Crane

 Crane Brand CLW
Range of Sprayer 30m
Max Lifting Moment 25(T.M)
Max Lifting Capacity 2000(kg)
Max lifting height 12(m)
Rotation angle 360(°)
Installation space 1150(mm)
Recommented power 30(kw)
Maximum working pressure 26(Mpa)
Max Flow 63(l/min)
Crane weight 3800(kg)
Oil tank capacity 160(L)
Leg Leg type H type
Leg Span 2.28-5.9(m)
Hydraulic system Pressure 18(M pa)
Capacity 70(l)
Other Configuration Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
