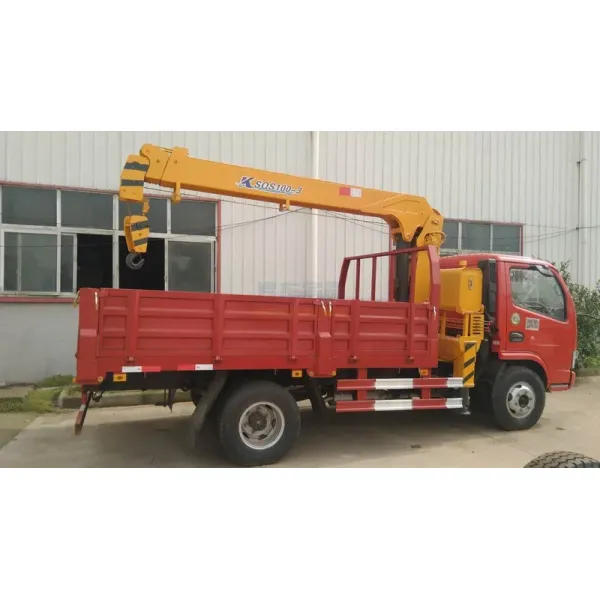

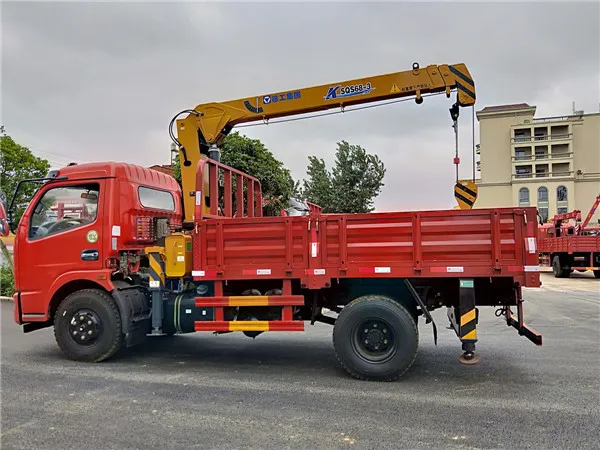

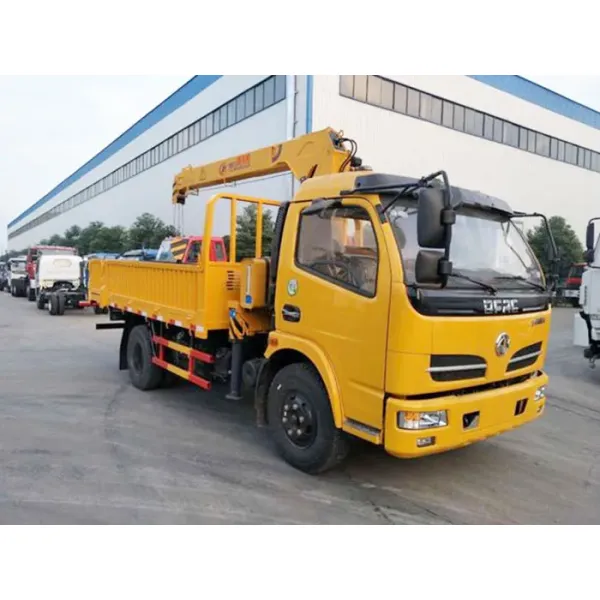

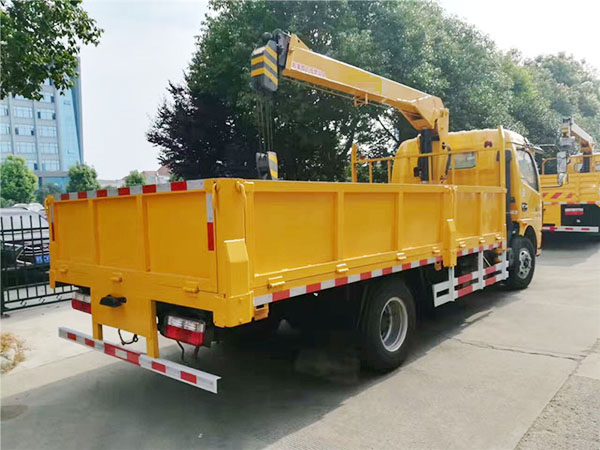

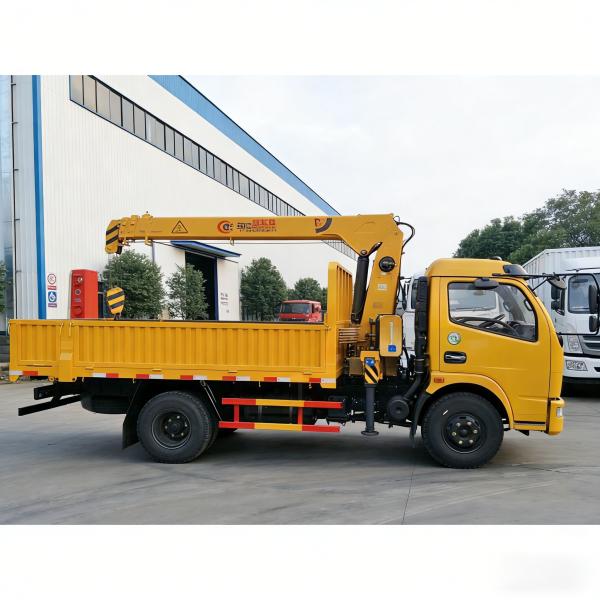

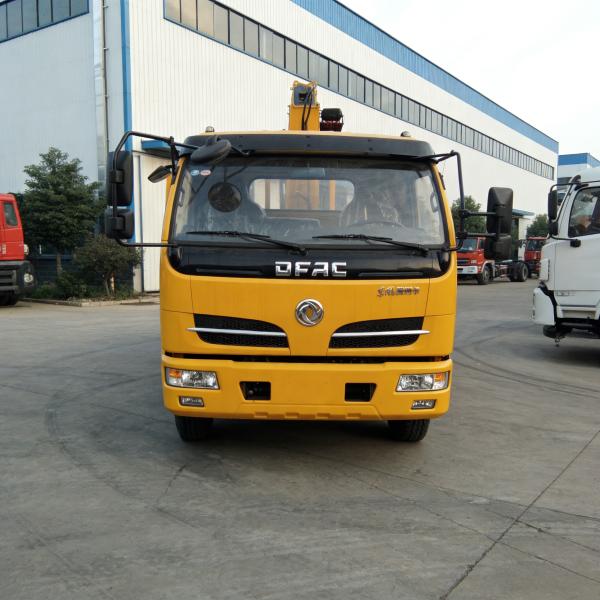

China Construction Machine 2ton 3.2ton Truck Mounted Full Hydraulic Truck Crane
China Construction Machine 2ton 3.2ton Truck Mounted Full Hydraulic Truck Crane
China Construction Machine 2ton 3.2ton Truck Mounted Full Hydraulic Truck Crane
China Construction Machine 2ton 3.2ton Truck Mounted Full Hydraulic Truck Crane
China Construction Machine 2ton 3.2ton Truck Mounted Full Hydraulic Truck Crane
China Construction Machine 2ton 3.2ton Truck Mounted Full Hydraulic Truck Crane
China Construction Machine 2ton 3.2ton Truck Mounted Full Hydraulic Truck Crane
China Construction Machine 2ton 3.2ton Truck Mounted Full Hydraulic Truck Crane
China Construction Machine 2ton 3.2ton Truck Mounted Full Hydraulic Truck Crane
China Construction Machine 2ton 3.2ton Truck Mounted Full Hydraulic Truck Crane
China Construction Machine 2ton 3.2ton Truck Mounted Full Hydraulic Truck Crane
China Construction Machine 2ton 3.2ton Truck Mounted Full Hydraulic Truck Crane
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
MOQ :
1
Price :
15000-35000 per unit
Type :
Straight Arm
Crane Jib :
Three-Arm
Chassis :
Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
Cargo Thickness :
Side 1.5mm, Bottom 2.5mm
Crane Boom Type :
Straight Telescopic Crane, Knuckle Crane
Cargo Material :
Q235 Carbon Steel
Condition :
New
Maximum Lifting Weight :
2-4t
Gearbox :
5forwards & 1reverse
Model NO. :
CLW5089SCD
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Shaft Number :
2
Crane Capacity :
2ton, 3ton, 3.2ton, 4ton, etc.
Engine Brand :
Yuchai, 115HP; Chaochai 95HP
Crane Brand :
Chengli, etc.
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Specification :
2ton, 3ton, 3.2ton
HS Code :
8705909990
Production Capacity :
500 Unit/Month
Maximum Lifting Height :
<10m
Boom Type :
Straight 3-Arm Telescopic Boom
Trademark :
CLW
Origin :
Suizhou, China
Name :
Truck Mounted Crane
Description
China Construction Machine 2ton 3.2ton Truck Mounted Crane Tower Crane Telescopic Boom Crane Truck Mounted
Product Description

1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.

2. Main parts: Crane. (Different lifting capacities match different chassis.)

3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification
General Technical Parameters
Overall Dimension 5995×2200×2900 (mm)
Gross Vehicle Weight 5300(Kg)
Curb Weight 3610(Kg)
Chassis Specification
Chassis Brand Dongfeng
Drive model 4*2
Cabin Double, Left Hand Driving, with air conditional
Number of Passengers 2






Engine

 Model 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power 70KW/95HP
Emission standard EURO 3
Displacement 3860(ml)
Fuel type Diesel
Gearbox 5Forwards & 1Reverse
Brake System Air break
Wheel Base 3300mm
Front/Rear Axle Loading 1800/3500(Kg)
Approach/Departure Angle 23/12(°)
Overhang 990/1705(mm)
Tire 7.00R16
Max Driving Speed 90(km/h)
Upperstructure Specification


Cargo Body

 Dimension 2770×1850×380(mm)
Material Q235 carbon steel
Cargo Thickness Side 1.5mm, Bottom 2.5mm


















Working System

 Boom Type Straight 3-Arm telescopic boom








Crane

 Crane Brand CLW
Max working radius 7.6m
Max Lifting Moment 7(T.M)
Max Lifting Capacity 3200(kg)
Max lifting height 10(m)
Rotation angle 360(°)
Installation space 700(mm)
Recommented power 30(kw)
Maximum working pressure 10(Mpa)
Max Flow 63(l/min)
Crane weight 1438(kg)
Oil tank capacity 60(L)
Leg Leg type H type
Leg Span 4.4(m)
Hydraulic system Pressure 10(M pa)
Capacity 70(l)
Other Configuration Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
