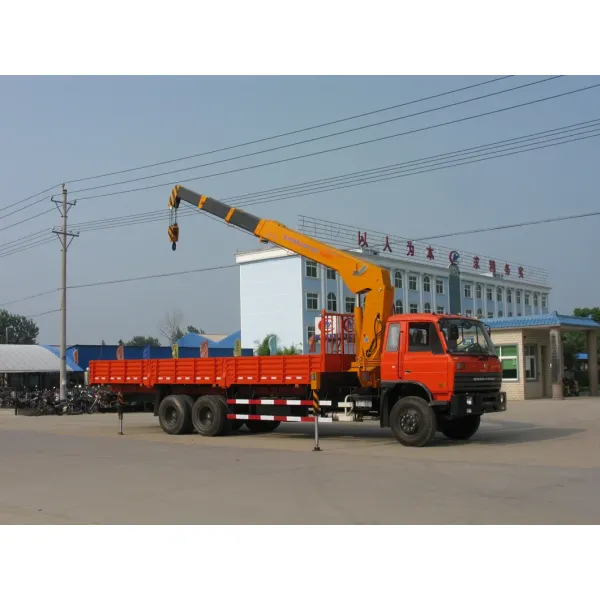

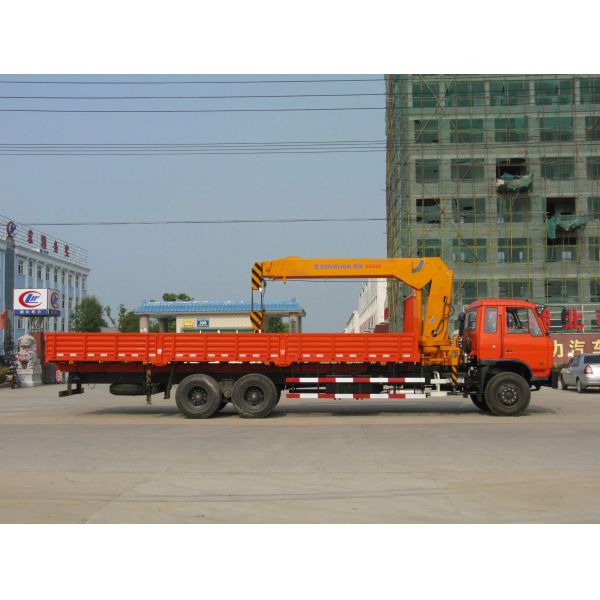

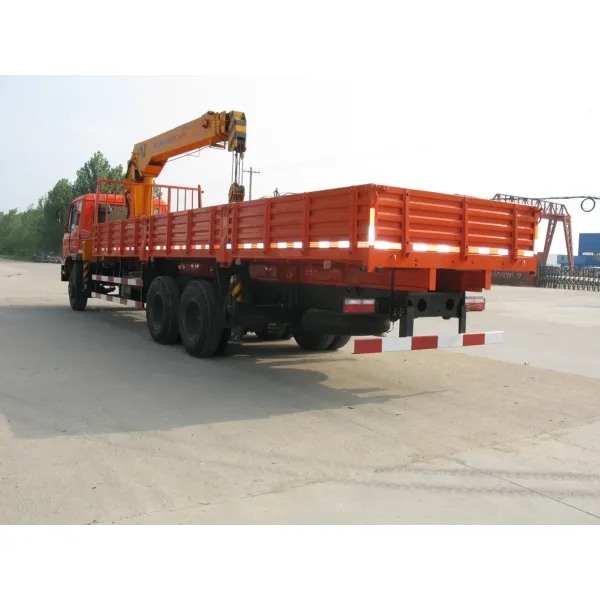

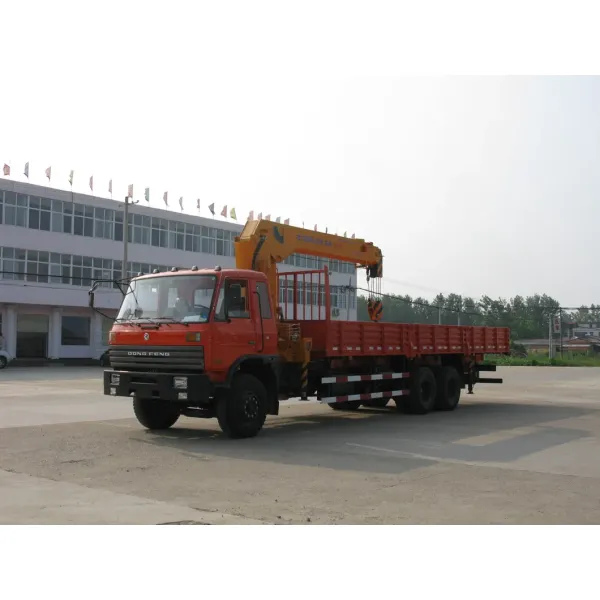

Dongfeng/HOWO/Foton/FAW 6*4 10ton Hoisting Truck Mounted with Hydraulic Straight 4-Arm Telescopic Boom Crane
Dongfeng/HOWO/Foton/FAW 6*4 10ton Hoisting Truck Mounted with Hydraulic Straight 4-Arm Telescopic Boom Crane
Dongfeng/HOWO/Foton/FAW 6*4 10ton Hoisting Truck Mounted with Hydraulic Straight 4-Arm Telescopic Boom Crane
Dongfeng/HOWO/Foton/FAW 6*4 10ton Hoisting Truck Mounted with Hydraulic Straight 4-Arm Telescopic Boom Crane
Dongfeng/HOWO/Foton/FAW 6*4 10ton Hoisting Truck Mounted with Hydraulic Straight 4-Arm Telescopic Boom Crane
Dongfeng/HOWO/Foton/FAW 6*4 10ton Hoisting Truck Mounted with Hydraulic Straight 4-Arm Telescopic Boom Crane
Dongfeng/HOWO/Foton/FAW 6*4 10ton Hoisting Truck Mounted with Hydraulic Straight 4-Arm Telescopic Boom Crane
Dongfeng/HOWO/Foton/FAW 6*4 10ton Hoisting Truck Mounted with Hydraulic Straight 4-Arm Telescopic Boom Crane
Dongfeng/HOWO/Foton/FAW 6*4 10ton Hoisting Truck Mounted with Hydraulic Straight 4-Arm Telescopic Boom Crane
Dongfeng/HOWO/Foton/FAW 6*4 10ton Hoisting Truck Mounted with Hydraulic Straight 4-Arm Telescopic Boom Crane
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Engine Brand :
Yuchai, 260HP
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
HS Code :
8705909990
Shaft Number :
3
Crane Jib :
Four-Arm
Maximum Lifting Height :
10-15m
Maximum Lifting Weight :
8-10t
Specification :
11950*2500*3850 mm
Origin :
Suizhou, China
Production Capacity :
500 Unit/Month
Trademark :
CLW
Crane Boom Type :
Straight Telescopic Crane, Knuckle Crane
Name :
Truck Mounted Crane
Crane Brand :
Chengli, etc.
Gearbox :
Fast, 8forwards & 1reverse
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Chassis :
Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
Boom Type :
Straight 4-Arm Telescopic Boom
MOQ :
1
Price :
15000-35000 per unit
Model NO. :
CLW5089SCD
Condition :
New
Type :
Straight Arm
Crane Capacity :
6.3ton, 8ton, 10ton, 12ton, 14ton, 16ton, etc.
Cargo Thickness :
Side 1.5mm, Bottom 2.5mm
Cargo Material :
Q235 Carbon Steel
Description
Dongfeng/HOWO/Foton/FAW 6*4 10ton Hoisting Truck Mounted with Hydraulic Straight 4-Arm Telescopic Boom Crane
Product Description

1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.

2. Main parts: Crane. (Different lifting capacities match different chassis.)

3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification
General Technical Parameters
Overall Dimension 11950X2500X3850 (mm)
Gross Vehicle Weight 25000(Kg)
Curb Weight 14110(Kg)
Chassis Specification
Chassis Brand Dongfeng
Drive model 6*4
Cabin Single, Left Hand Driving, with air conditional
Number of Passengers 3





Engine

 Model YC6A260, 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power 191KW/260HP
Emission standard EURO 3
Displacement 7250(ml)
Fuel type Diesel
Gearbox Fast, 8Forwards & 1Reverse
Brake System Air break
Wheel Base 4350mm+1300mm
Front/Rear Axle Loading 5000/10000(Kg)
Approach/Departure Angle 23/12(°)
Overhang 1250/3545(mm)
Tire 11.00-20,
Max Driving Speed 85(km/h)
Upperstructure Specification




Cargo Body

 Dimension 8500×2290×550(mm)
Material Q235 carbon steel
Cargo Thickness Side 1.5mm, Bottom 2.5mm
Volume 10m³


















Working System

 Boom Type Straight 4-Arm telescopic boom








Crane

 Crane Brand SQ10SK3Q
Range of Sprayer 30m
Max Lifting Moment 25(T.M)
Max Lifting Capacity 10000(kg)
Max lifting height 12(m)
Rotation angle 360(°)
Installation space 1150(mm)
Recommented power 30(kw)
Maximum working pressure 26(Mpa)
Max Flow 63(l/min)
Crane weight 3800(kg)
Oil tank capacity 160(L)
Leg Leg type H type
Leg Span 2.28-5.9(m)
Hydraulic system Pressure 18(M pa)
Capacity 70(l)
Other Configuration Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
