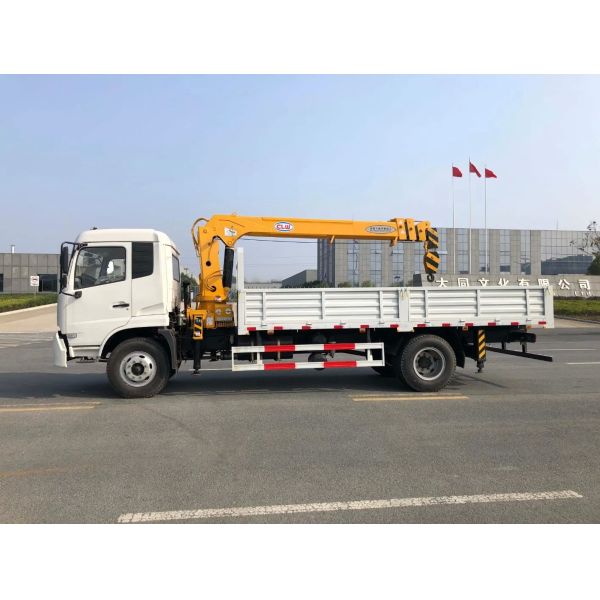

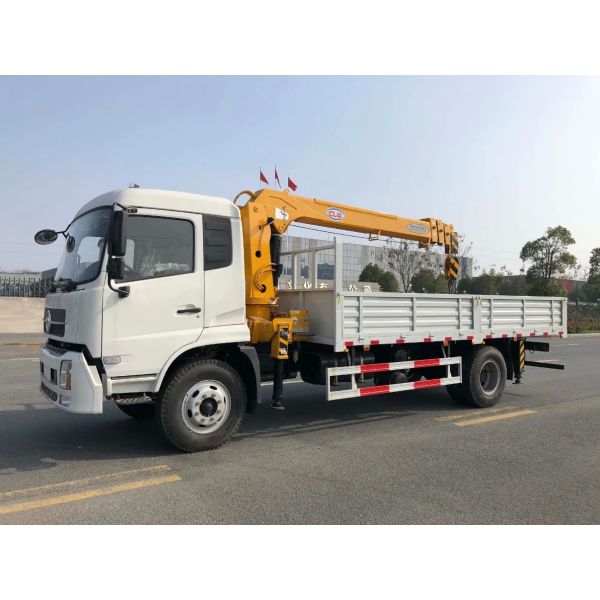

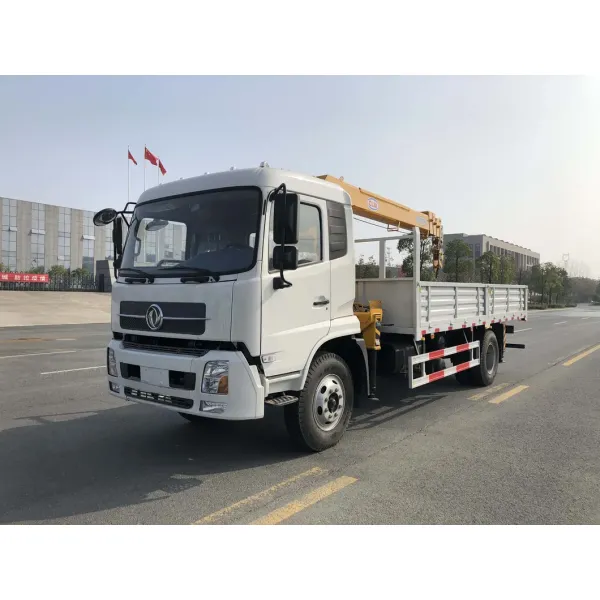

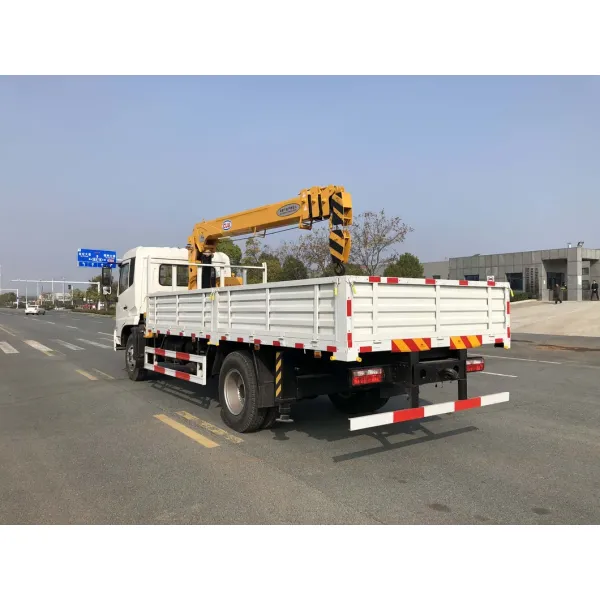

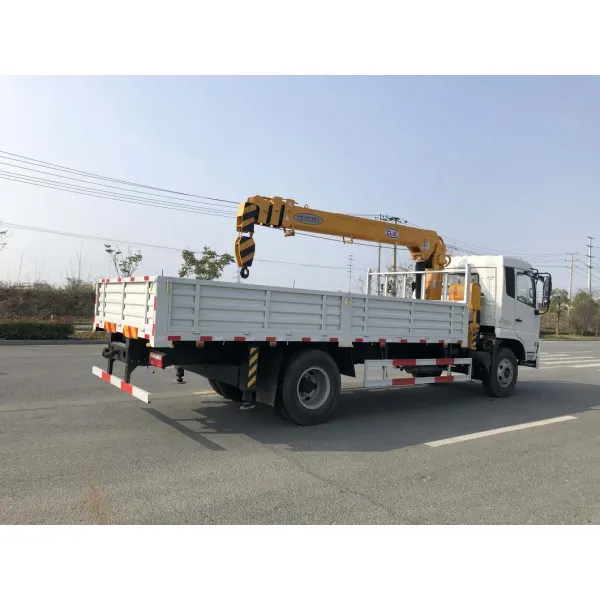

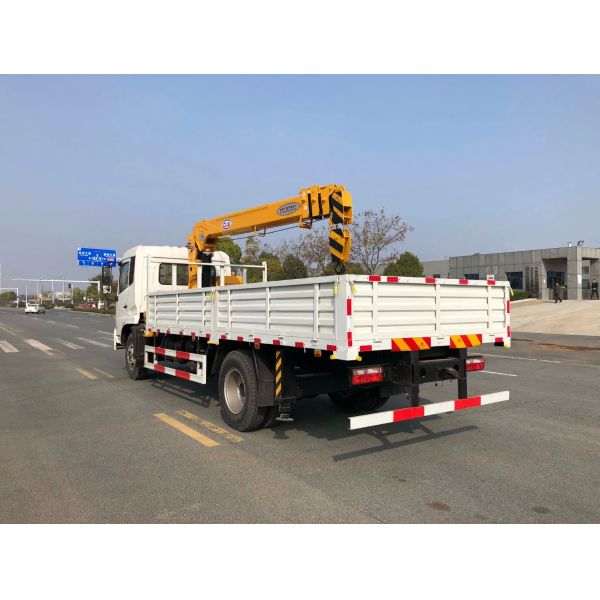

Hydraulic Telescopic Boom Crane Truck Mounted 5ton 6ton 8ton 9ton 10ton
Hydraulic Telescopic Boom Crane Truck Mounted 5ton 6ton 8ton 9ton 10ton
Hydraulic Telescopic Boom Crane Truck Mounted 5ton 6ton 8ton 9ton 10ton
Hydraulic Telescopic Boom Crane Truck Mounted 5ton 6ton 8ton 9ton 10ton
Hydraulic Telescopic Boom Crane Truck Mounted 5ton 6ton 8ton 9ton 10ton
Hydraulic Telescopic Boom Crane Truck Mounted 5ton 6ton 8ton 9ton 10ton
Hydraulic Telescopic Boom Crane Truck Mounted 5ton 6ton 8ton 9ton 10ton
Hydraulic Telescopic Boom Crane Truck Mounted 5ton 6ton 8ton 9ton 10ton
Hydraulic Telescopic Boom Crane Truck Mounted 5ton 6ton 8ton 9ton 10ton
Hydraulic Telescopic Boom Crane Truck Mounted 5ton 6ton 8ton 9ton 10ton
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Shaft Number :
2
Boom Type :
Straight 4-Arm Telescopic Boom
Chassis Brand :
Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
Crane Boom Type :
Straight Telescopic Crane, Knuckle Crane
HS Code :
8705909990
MOQ :
1
Price :
15000-35000 per unit
Condition :
New
Name :
Telescopic Boom Crane
Maximum Lifting Weight :
8-10t
Type :
Straight Arm
Maximum Lifting Height :
15-20m
Crane Jib :
Four-Arm
Gearbox :
8forwards & 1reverse
Cargo Thickness :
Side 1.5mm, Bottom 2.5mm
Engine Brand :
Yuchai, 180HP
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Crane Capacity :
5ton, 6ton, 8ton, 9ton, 10ton, etc.
Production Capacity :
500 Unit/Month
Specification :
5ton, 6ton, 8ton, 9ton, 10ton
Origin :
Suizhou, China
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Trademark :
CLW
Cargo Material :
Q235 Carbon Steel
Description
Ce ISO Certificate Hydraulic Telescopic Boom Crane Truck Mounted Crane
Product Description

1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.

2. Main parts: Crane. (Different lifting capacities match different chassis.)

3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification
General Technical Parameters
Overall Dimension 9000×2500×3850 (mm)
Gross Vehicle Weight 18500(Kg)
Curb Weight 11380(Kg)
Chassis Specification
Chassis Brand Dongfeng
Drive model 4*2
Cabin Double, Left Hand Driving, with air conditional
Number of Passengers 3

Engine

 Model 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power
132KW/180HP
Emission standard EURO 3
Displacement 6500(ml)
Fuel type Diesel
Gearbox 8Forwards & 1Reverse
Brake System Air break
Wheel Base 5100mm
Front/Rear Axle Loading 8000/11500(Kg)
Approach/Departure Angle 23/12(°)
Overhang 1250/3545(mm)
Tire 11.00R20
Max Driving Speed 90(km/h)
Upperstructure Specification

Cargo Body

 Dimension 6000×2300×550(mm)
Material Q235 carbon steel
Cargo Thickness Side 1.5mm, Bottom 2.5mm

Working System

 Boom Type Straight 3-Arm telescopic boom

Crane

 Crane Brand
Range of Sprayer 30m
Max Lifting Moment 25(T.M)
Max Lifting Capacity 8000(kg)
Max lifting height 12(m)
Rotation angle 360(°)
Installation space 1150(mm)
Recommented power 30(kw)
Maximum working pressure 26(Mpa)
Max Flow 63(l/min)
Crane weight 3800(kg)
Oil tank capacity 160(L)
Leg Leg type H type
Leg Span 2.28-5.9(m)
Hydraulic system Pressure 18(M pa)
Capacity 70(l)
Other Configuration Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
