Specifications
Place of Origin :
CHINA
Brand Name :
CLW
MOQ :
1
Price :
15000-35000 per unit
Model NO. :
CLW5089SCD
Type :
Straight Arm
Engine Brand :
100HP
Name :
Truck Mounted Crane
Boom Type :
Straight 4-Arm Telescopic Boom
Chassis Brand :
Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
Cargo Material :
Q235 Carbon Steel
HS Code :
8705909990
Cargo Thickness :
Side 1.5mm, Bottom 2.5mm
Origin :
Suizhou, China
Shaft Number :
2
Crane Jib :
Three-Arm
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Crane Capacity :
2ton, 3ton, 3.2ton, 4ton, etc.
Maximum Lifting Weight :
2-4t
Crane Boom Type :
Straight Telescopic Crane, Knuckle Crane
Condition :
New
Production Capacity :
500 Unit/Month
Specification :
2ton, 3ton, 3.2ton
Trademark :
CLW
Gearbox :
5forwards & 1reverse
Maximum Lifting Height :
<10m
Crane Brand :
Clw, etc.
Description

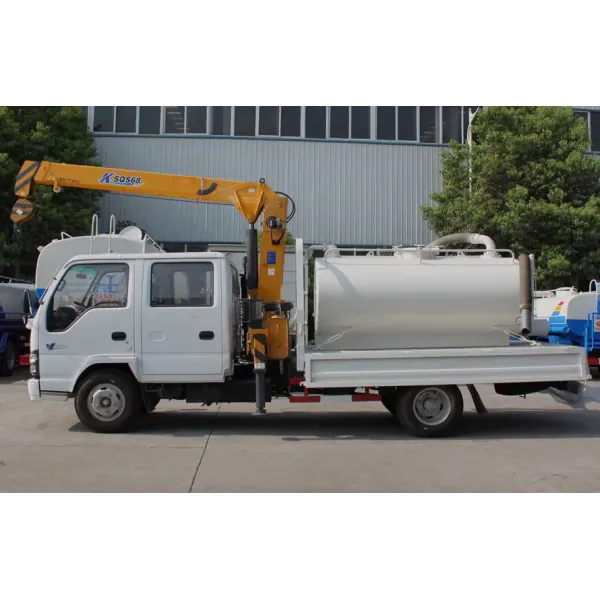

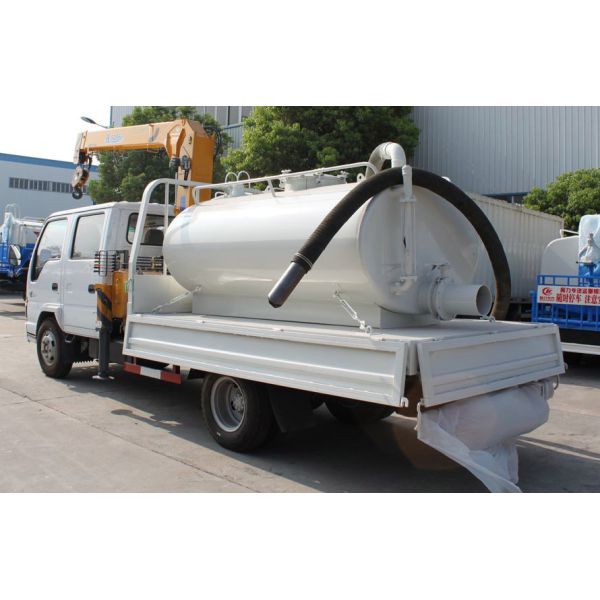

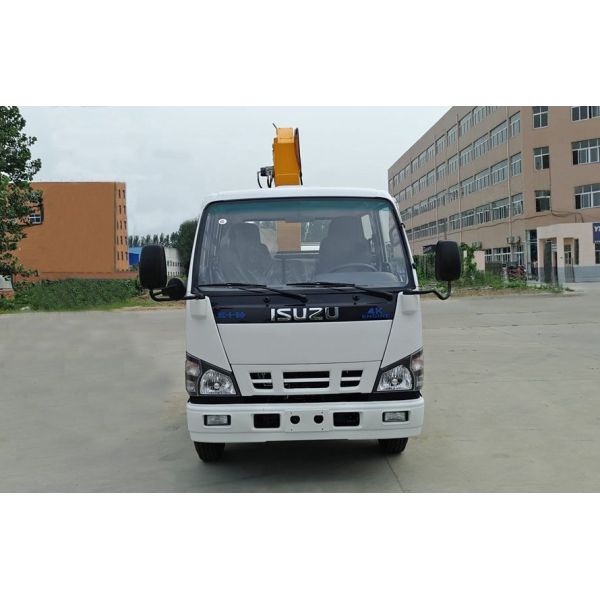

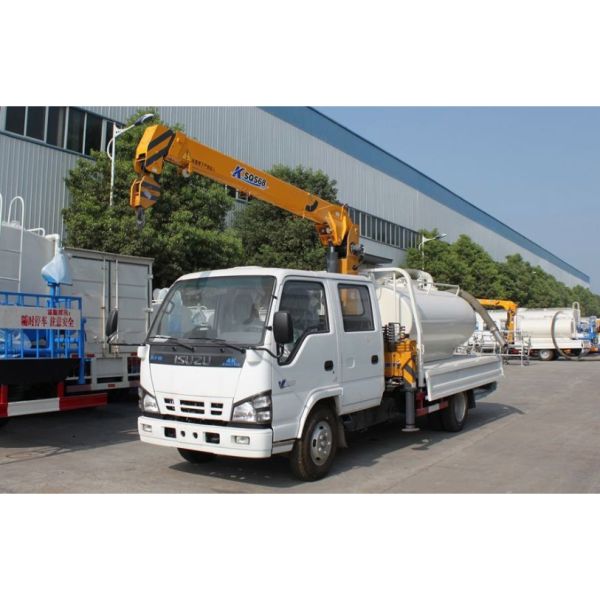

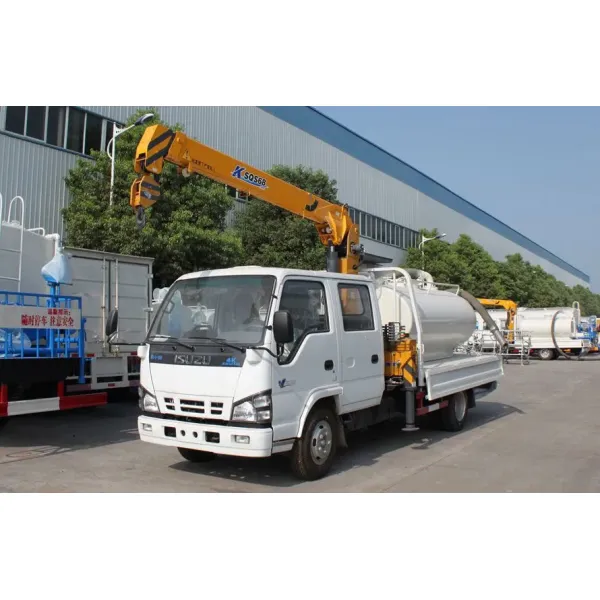

2ton 3tons JMC/JAC Construction Equipment Straight Boom crane Truck Crane with Water Tank
Product Description

1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.

2. Main parts: Crane. (Different lifting capacities match different chassis.)

3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification
General Technical Parameters
Overall Dimension 5995×2060×2940 (mm)
Gross Vehicle Weight 4495(Kg)
Curb Weight 3255(Kg)
Chassis Specification
Chassis Brand
Drive model 4*2
Cabin Double, Left Hand Driving, with air conditional
Number of Passengers 2-3

Engine

 Model 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power 74KW/100HP
Emission standard EURO 3
Displacement 2771(ml)
Fuel type Diesel
Gearbox 5Forwards & 1Reverse
Brake System Air break
Wheel Base 3308mm
Front/Rear Axle Loading 1500/3000(Kg)
Approach/Departure Angle 23/12(°)
Overhang 1250/3545(mm)
Tire 7.00R16
Max Driving Speed 90(km/h)
Upperstructure Specification

Cargo Body

 Dimension 2500×1880×380(mm)
Material Q235 carbon steel
Cargo Thickness Side 1.5mm, Bottom 2.5mm

Working System

 Boom Type Straight 3-Arm telescopic boom

Crane

 Crane Brand CLW
Range of Sprayer 30m
Max Lifting Moment 25(T.M)
Max Lifting Capacity 3000(kg)
Max lifting height 12(m)
Rotation angle 360(°)
Installation space 1150(mm)
Recommented power 30(kw)
Maximum working pressure 26(Mpa)
Max Flow 63(l/min)
Crane weight 3800(kg)
Oil tank capacity 160(L)
Leg Leg type H type
Leg Span 2.28-5.9(m)
Hydraulic system Pressure 18(M pa)
Capacity 70(l)
Other Configuration Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
