Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons
Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons
Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons
Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons
Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons
Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons
Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons
Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons
Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons
Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Crane Brand :
S-Any, Rlq, etc.
Name :
Heavy Duty Crane Truck
Type :
Straight Arm
Crane Capacity :
2ton, 3ton, 3.5ton, 4ton, 5ton, 2.5ton, etc.
Specification :
7070*2335*3250 mm
Crane Boom Type :
Straight Telescopic Crane, Knuckle Crane
Cargo Material :
Q235 Carbon Steel
Cargo Thickness :
Side 1.5mm, Bottom 2.5mm
Origin :
Suizhou, China
Trademark :
CLW
Maximum Lifting Height :
10-15m
Model NO. :
CLW5089SCD
Gearbox :
Fast, 6forwards & 1reverse
Production Capacity :
500 Unit/Month
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Chassis Brand :
Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
Maximum Lifting Weight :
2-4t
Crane Jib :
Four-Arm
HS Code :
8705909990
Shaft Number :
2
MOQ :
1
Price :
15000-35000 per unit
Condition :
New
Engine Brand :
Chaochai, 120HP
Boom Type :
Straight 4-Arm Telescopic Boom
Description

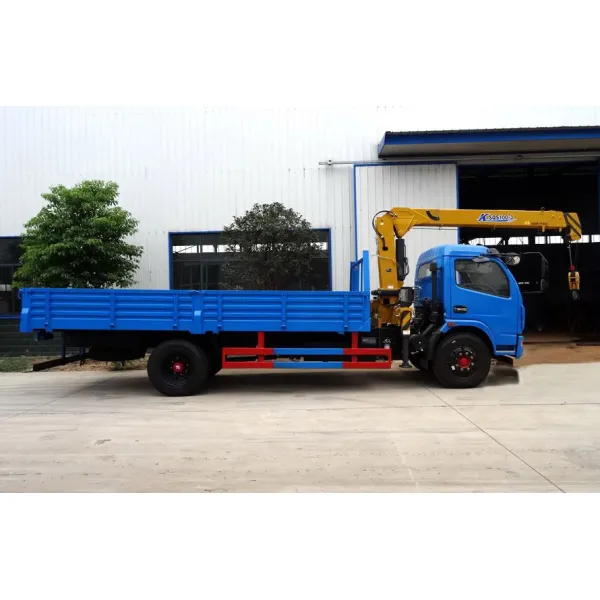

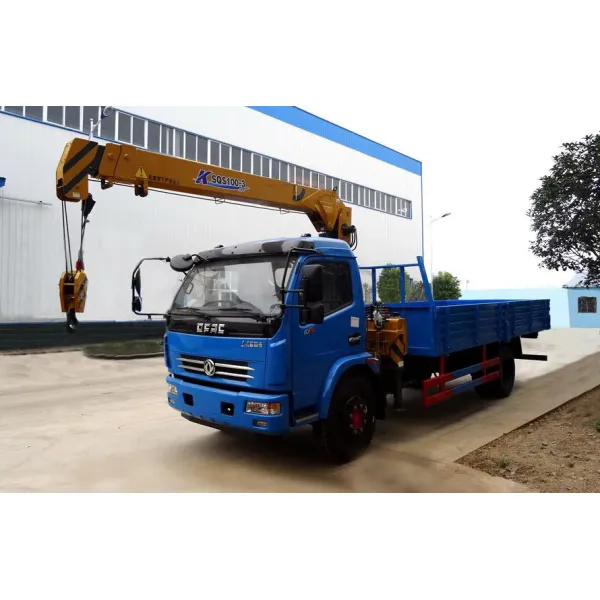

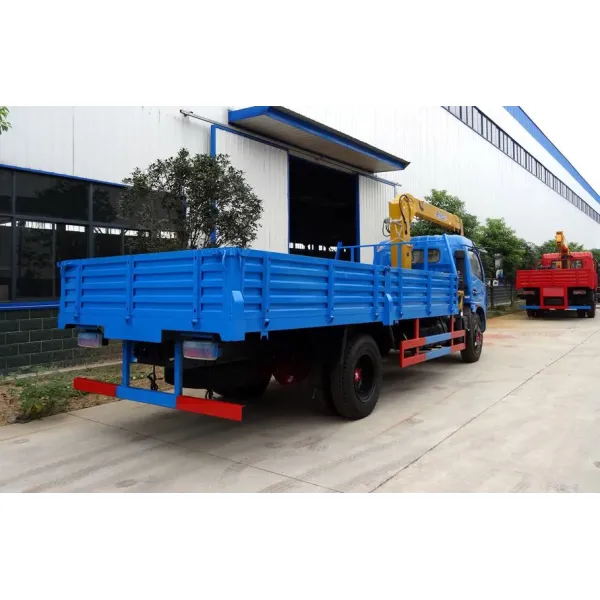

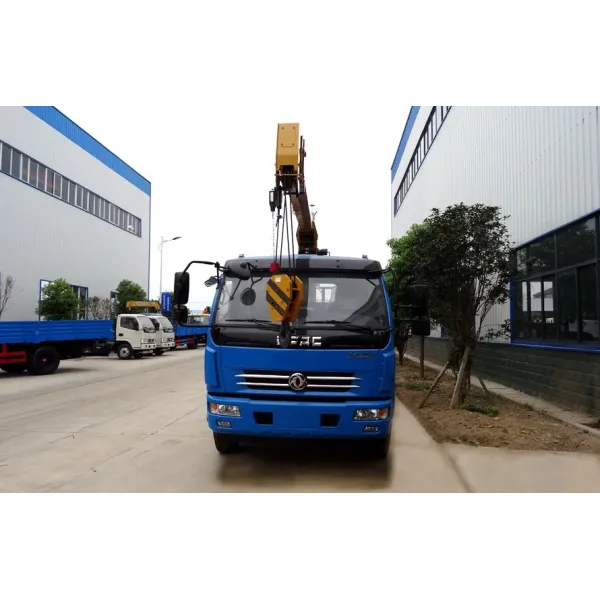

3Ton-4Tons Dongfeng truck with Mobile cranes Heavy Duty crane Truck Mounted Straight 4-Arm Telescoping Boom Crane

1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

Product name dongfengTruck Mounted with Crane with 3.2T Capacity
Chassis modeldom dongfeng Truck with Crane
OD(mm)L×W×H Aprro 7070*2335*3250 mm
The size of the box 4350*2150*550 mm
Total Mass 8250KG
Axle load 2090KG/4720KG
Color According to your requirement
Engine
Maximum power 105KW
Displacement 3856ml
Fuel type Diesel Oil
Wheel Base(mm) 3800
Type & Size of Tyre 7.00-16 14PR,7.00R16 14PR
Number of tyre 6
Max Speed 110Km/h
Technical parameter of crane(Straight Boom & Folding-Type Boom)
Crane weight (KG) 1200
max. lifting weight(KG) 4000
Rotation Angle 360º
Equipment for 4tons Crane Mounted Parts
Working Platform 360°turning(left or right), H-shape legs 360°
Cargo Box Dimension 4350×2150×550mm
Material of box body Carbon steel
Extendable boom section 1
Boom Type Straight
Lifting Max. Weight 4000KG
Lifting Max. Height 7560 mm
Working Radius 7730 mm
Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons
Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons
Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons
Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons
Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons

Products Catalog

  • LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
  • Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
  • Truck with crane / Truck mounted crane
  • Dump Truck / Tipper Truck/Side Tipper/End Tipper
  • Fire Fighting Truck / Fire Truck / Fire Vehicle
  • Concrete Mixer Truck
  • Van truck /Refrigerated truck
  • Fecal suction truck / Sewage suction truck,
  • Cement Powder Tank truck/ Bulk cement truck
  • High-altitude operation truck,
  • Self-loading garbage truck, garbage compactor truck, sealed garbage truck
  • Tractor
  • High Pressure Cleaning Truck
  • Sweeper Truck
  • Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Dongfeng Cargo Truck Crane Four Arm Heavy Duty Crane Truck 3tons-4tons

FAQ

Q: Can you accommodate my special request?
A: We can accept customized trucks according to your requirements.

Q: What is your minimum quality?
A: One set order is available, if the quantity is more , then will give you a good discount.

Q: What about the payment terms is acceptable?
A: T/T : 30% T/T in advance deposit, 70% T/T in balance before delivery. Letter of Credit: 100% irrevocable letter of credit at sight.

Q: What's your warranty?
A: Normally is 1 year, if large quantities we can negotiate.We will mail the accessories to you for free if have problems within one year.

Q: What is considered a dump truck?
A: A dump truck, known also as a dumping truck, dump trailer, dumper trailer, dump lorry or dumper lorry or a dumper for short, is used for transporting materials (such as dirt, gravel, or demolition waste) for construction as well as coal.
