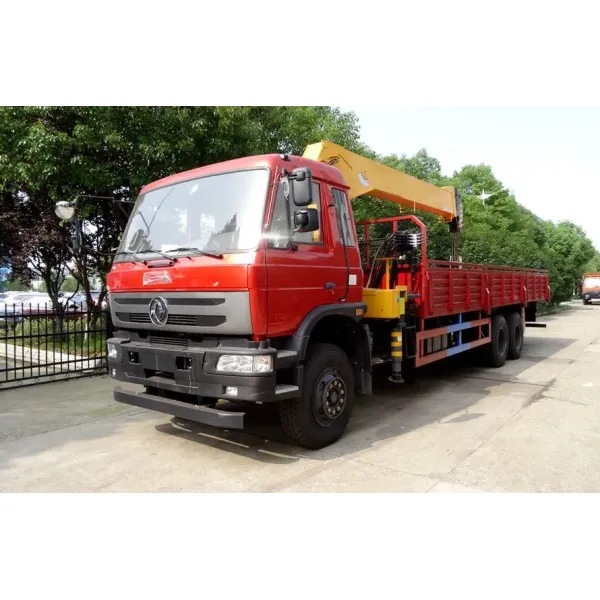

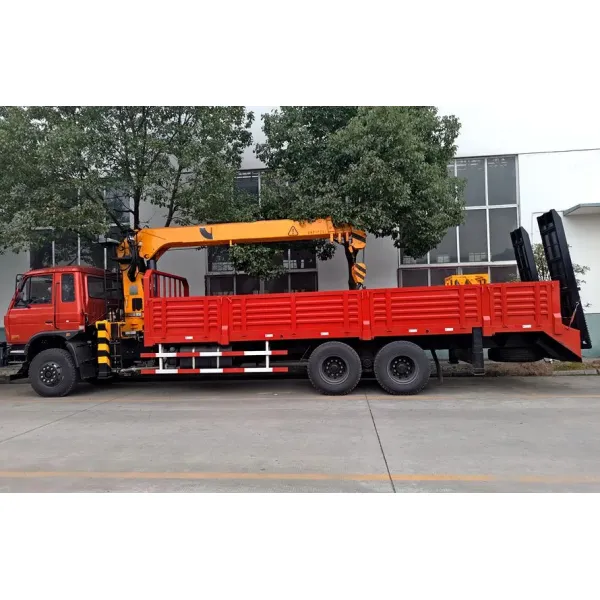

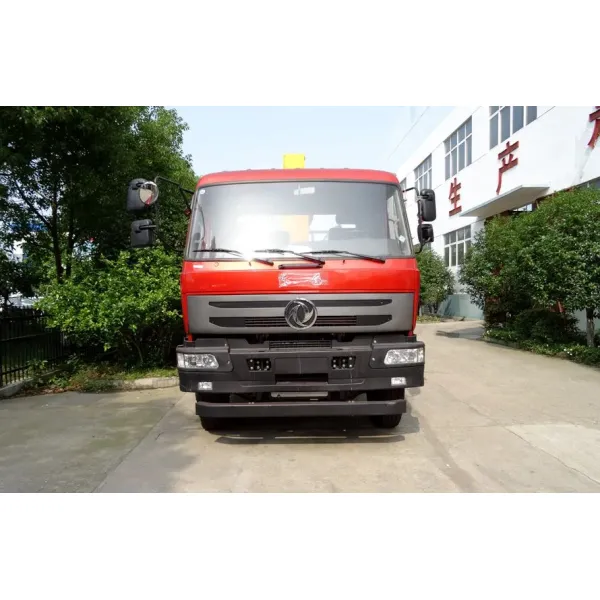

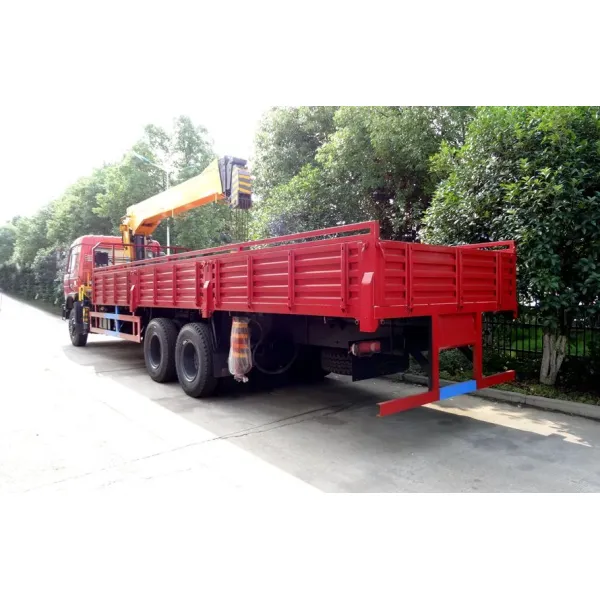

Foton 6*4 Truck Mounted Crane 10 Ton Truck Mounted Telescopic Boom Crane
Foton 6*4 Truck Mounted Crane 10 Ton Truck Mounted Telescopic Boom Crane
Foton 6*4 Truck Mounted Crane 10 Ton Truck Mounted Telescopic Boom Crane
Foton 6*4 Truck Mounted Crane 10 Ton Truck Mounted Telescopic Boom Crane
Foton 6*4 Truck Mounted Crane 10 Ton Truck Mounted Telescopic Boom Crane
Foton 6*4 Truck Mounted Crane 10 Ton Truck Mounted Telescopic Boom Crane
Foton 6*4 Truck Mounted Crane 10 Ton Truck Mounted Telescopic Boom Crane
Foton 6*4 Truck Mounted Crane 10 Ton Truck Mounted Telescopic Boom Crane
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Maximum Lifting Height :
10-15m
Crane Jib :
Four-Arm
Shaft Number :
2
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Chassis Brand :
Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
HS Code :
8705909990
Engine Brand :
Yuchai, 260HP
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Production Capacity :
500 Unit/Month
MOQ :
1
Price :
15000-35000 per unit
Crane Boom Type :
Straight Telescopic Crane, Knuckle Crane
Cargo Material :
Q235 Carbon Steel
Crane Brand :
S-Any, etc.
Maximum Lifting Weight :
8-10t
Name :
Truck Mounted Crane
Model NO. :
CLW645089SCD
Gearbox :
Fast, 8forwards & 1reverse
Cargo Thickness :
Side 1.5mm, Bottom 2.5mm
Boom Type :
Straight 4-Arm Telescopic Boom
Origin :
Suizhou, China
Condition :
Used
Specification :
11950*2500*3850 mm
Trademark :
CLW
Type :
Straight Arm
Crane Capacity :
6.3ton, 8ton, 10ton, 12ton, 14ton, 16ton, etc.
Description
Dongfeng/Howo/Foton/I-suzu/FAW 6*4 10Ton Hoisting Truck Mounted with Hydraulic Straight 4-Arm Telescopic Boom Crane
Product Description
  • Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
  • Main parts: Crane. (Different lifting capacities match different chassis.)
  • Advantage: One truck combines the functions of crane and dump truck.
Product Specification
General Technical Parameters
Overall Dimension11950X2500X3850 (mm)
Gross Vehicle Weight25000(Kg)
Curb Weight14110(Kg)
Chassis Specification
Chassis BrandDongfeng
Drive model6*4
CabinSingle, Left Hand Driving, with air conditional
Number of Passengers3




Engine

ModelYC6A260, 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power191KW/260HP
Emission standardEURO 3
Displacement7250(ml)
Fuel typeDiesel
GearboxFast, 8Forwards & 1Reverse
Brake SystemAir break
Wheel Base4350mm+1300mm
Front/Rear Axle Loading5000/10000(Kg)
Approach/Departure Angle23/12(°)
Overhang1250/3545(mm)
Tire11.00-20,
Max Driving Speed85(km/h)
Upperstructure Specification



Cargo Body

Dimension8500×2290×550(mm)
MaterialQ235 carbon steel
Cargo ThicknessSide 1.5mm, Bottom 2.5mm
Volume10m³









Working System

Boom TypeStraight 4-Arm telescopic boom






Crane

Crane BrandSQ10SK3Q
Range of Sprayer30m
Max Lifting Moment25(T.M)
Max Lifting Capacity10000(kg)
Max lifting height12(m)
Rotation angle360(°)
Installation space1150(mm)
Recommented power30(kw)
Maximum working pressure26(Mpa)
Max Flow63(l/min)
Crane weight3800(kg)
Oil tank capacity160(L)
LegLeg typeH type
Leg Span2.28-5.9(m)
Hydraulic systemPressure18(M pa)
Capacity70(l)
Other ConfigurationControl system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
OptionsCaution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
