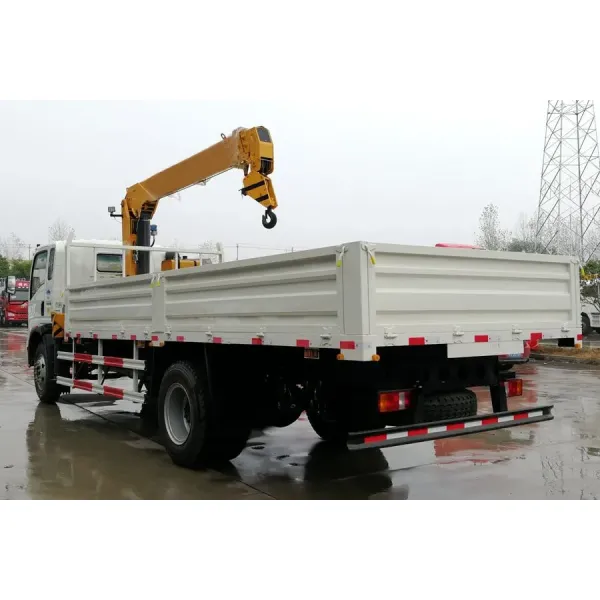

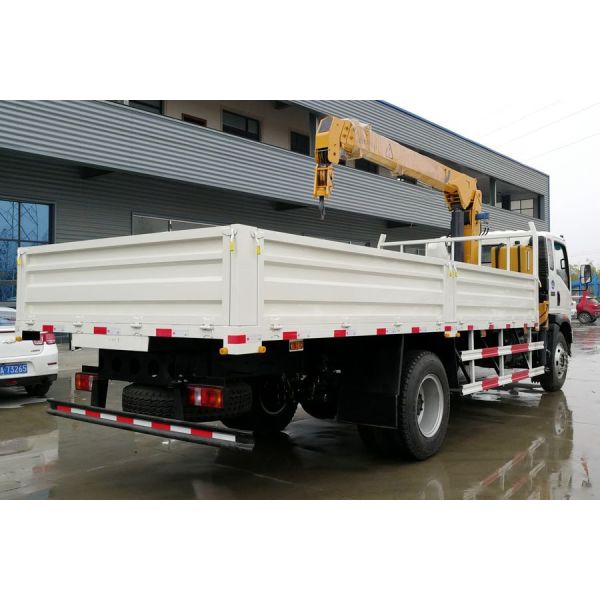

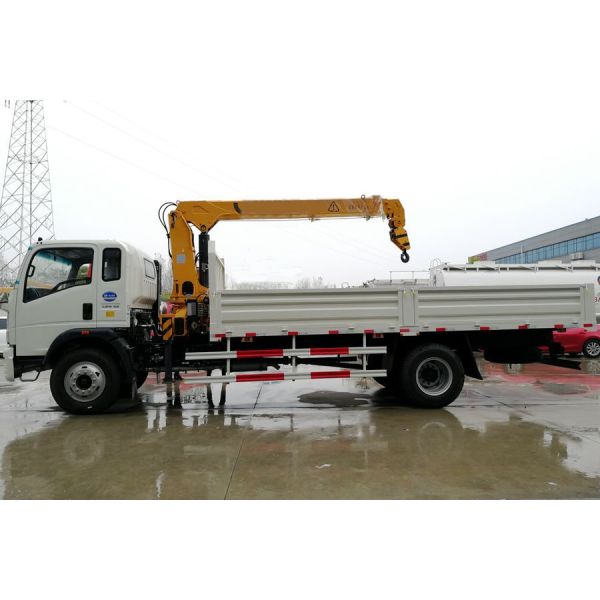

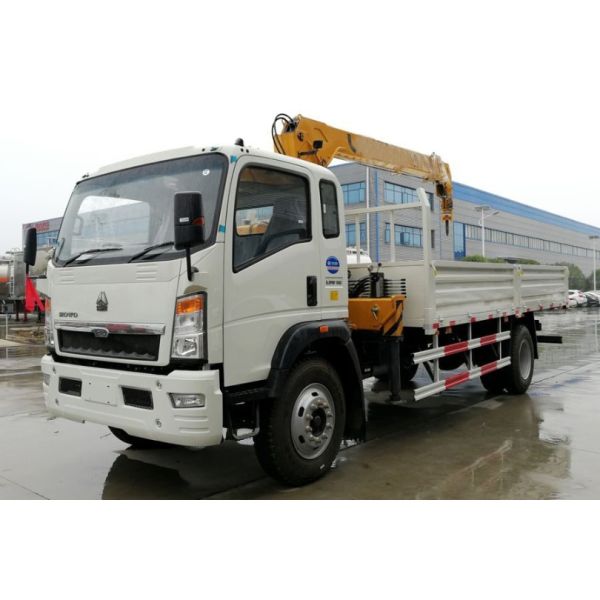

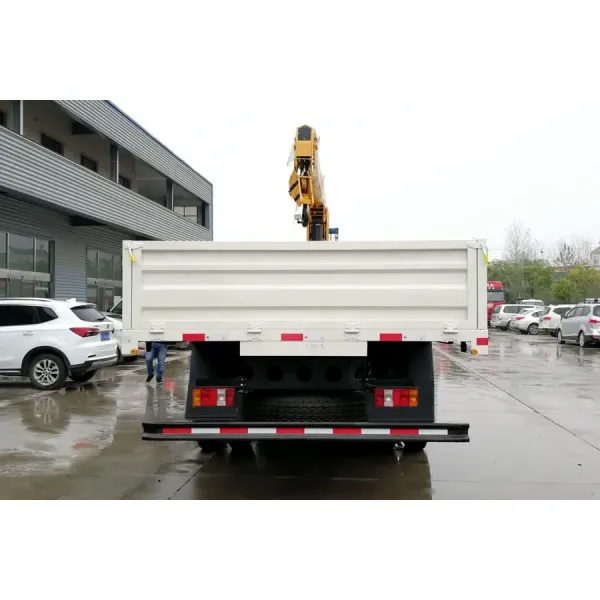

Sinotruk HOWO Telescopic Boom Truck Mounted Crane 5 Ton For Construction Material Transportation
Sinotruk HOWO Telescopic Boom Truck Mounted Crane 5 Ton For Construction Material Transportation
Sinotruk HOWO Telescopic Boom Truck Mounted Crane 5 Ton For Construction Material Transportation
Sinotruk HOWO Telescopic Boom Truck Mounted Crane 5 Ton For Construction Material Transportation
Sinotruk HOWO Telescopic Boom Truck Mounted Crane 5 Ton For Construction Material Transportation
Sinotruk HOWO Telescopic Boom Truck Mounted Crane 5 Ton For Construction Material Transportation
Sinotruk HOWO Telescopic Boom Truck Mounted Crane 5 Ton For Construction Material Transportation
Sinotruk HOWO Telescopic Boom Truck Mounted Crane 5 Ton For Construction Material Transportation
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Specification :
8215x2500x3850 mm
Max. Lifting Capacity :
8000 Kg
Production Capacity :
500 Unit/Month
Installation Space :
2280-5100mm
Type :
Straight Arm
Logo :
as Per Customer's Request
Gearbox :
6 Forward & 1 Reverse Gear
Crane :
5ton
Trademark :
CLW
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Rotation Angle :
360 Degree All Rotation
Max Lifting Height :
12m
Shaft Number :
2
Crane Jib :
Three-Arm
Working Radius :
8.6 M
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Maximum Lifting Weight :
5-7t
Condition :
New
HS Code :
8705909990
Name :
Telescopic Boom Truck Mounted Crane
Model NO. :
CLW5741XE
MOQ :
1
Price :
15000-35000 per unit
Maximum Lifting Height :
10-15m
Chassis :
HOWO
Engine :
168 HP
Crane Weight :
5000 Kg
Origin :
Suizhou, China
Description

Sinotruk HOWO 5tons Truck Mounted Telescopic Boom Crane for Construction Material Transportation

Product Description:

  • Crane Brand of truck mounted straight arm crane: CLW, PALFINGER, Other Chinese Brand
  • Heavy Duty Cargo box.
  • H Shape Hydraulic front & Rear Leg for safety.
  • Folded Arm & Telescopic Straight Arm Crane for option.
  • Crane capacity of truck mounted straight arm crane:2ton,2.5ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton,
  • 14ton,16ton,20ton,25ton
Chassis Specification
Item No.Parameters
Chassis BrandHOWO
Overall Dimension8215X2500X3850mm
Gross Vehicle Weight15795 kg
Curb Weight8450 kg
Loading Weight5805 Kg
Front/rear axle loading capacity5000/7200kg
Wheel Base4500 mm
CabinSingle, Left Hand Driving, 2 Passenger Allowed
EngineTypeDiesel Engine
Engine horsepower168HP EURO II
GearboxManual , 6 Forward & 1 Reverse Gear
Brake SystemAir Brake
Steering GearPower Assistant
Tire9.00-20, 6 Pieces with 1 Spare
Max Driving Speed90 km/h
Cargo compartment
MaterialQ235
Dimension5070X2400X600mm
Thickness3mm for side /4 mm for the bottom
Technical parameter of crane
Crane Model5 Ton 3 Arms Telescopic Boom Crane
Crane Weight2120 kg
Max. Lifting capacity5000 kg
Max lifting height12 M
Working radius8.6 M
Outrigger span2280-5100mm
Rotation angle360°All rotation
Optional1. Seat
2. Hydraulic Lift system
3. Landing Leg
Remarks1. Color is optional
2.Customized LOGO painting as per customer request
