Specifications
Place of Origin :
CHINA
Brand Name :
CLW
MOQ :
1
Price :
15000-35000 per unit
Cargo Material :
Q235 Carbon Steel
Trademark :
CLW
Origin :
Suizhou, China
Crane Brand :
S-Any, Clw, etc.
Crane Boom Type :
Straight Telescopic Crane, Knuckle Crane
Boom Type :
Straight 4-Arm Telescopic Boom
HS Code :
8705909990
Production Capacity :
500 Unit/Month
Name :
Truck Mounted Crane
Maximum Lifting Height :
15-20m
Shaft Number :
4
Gearbox :
12forwards & 1reverse
Chassis Brand :
Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
Crane Jib :
Four-Arm
Type :
Straight Arm
Crane Capacity :
12ton, 14ton, 16ton, 18ton, etc.
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Model NO. :
CLW5089SCD
Maximum Lifting Weight :
14-16t
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Condition :
New
Engine Brand :
Huaichai, 336HP
Cargo Thickness :
Side 1.5mm, Bottom 2.5mm
Specification :
12ton, 14ton, 16ton, 18ton
Description

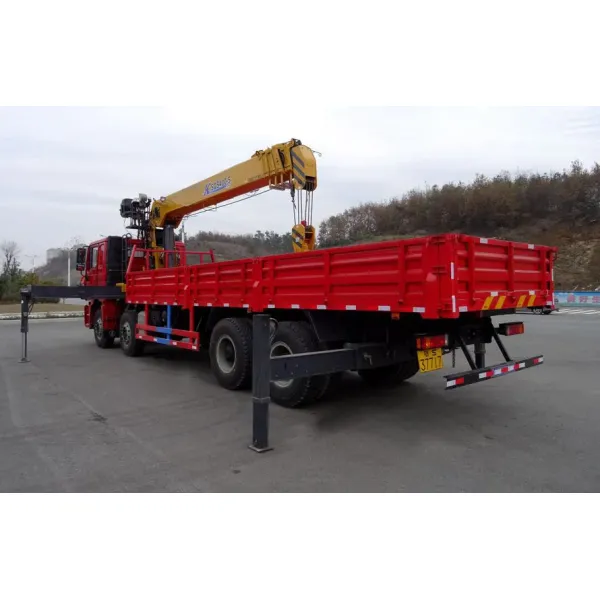

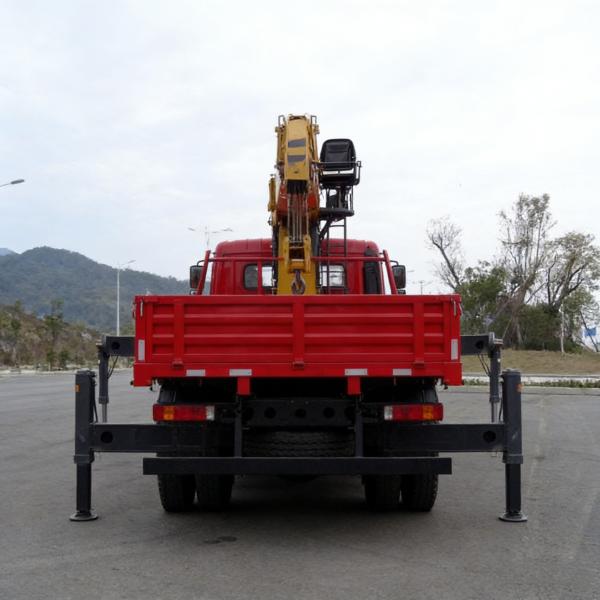

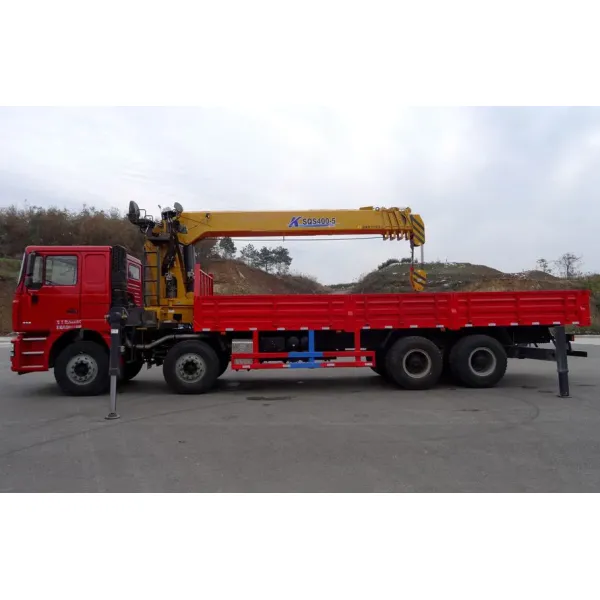

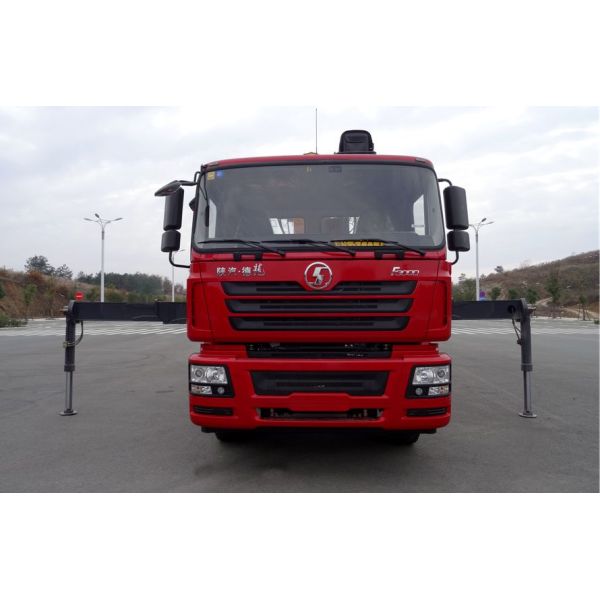

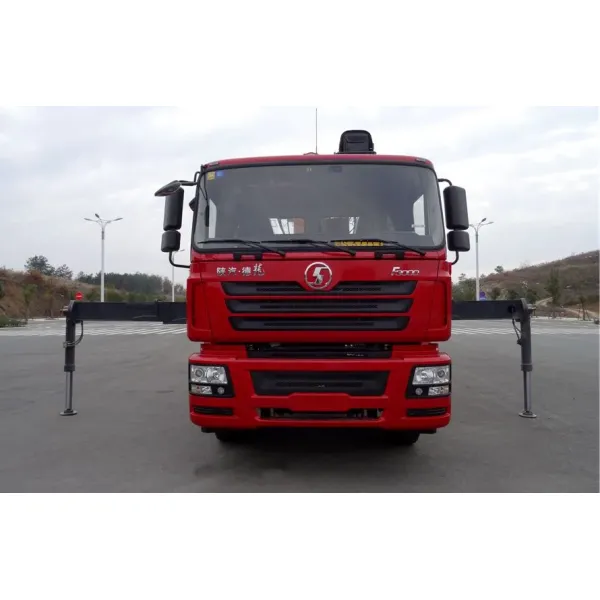

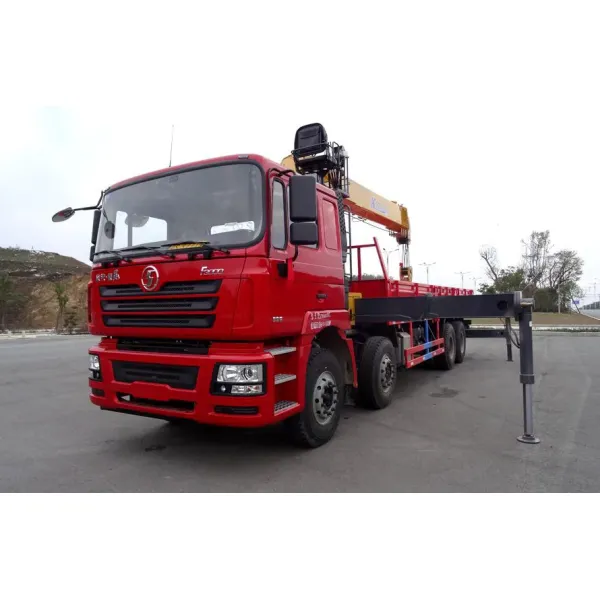

China Shacman 14Ton 16Ton Construction Service Truck Crane with hydraulic telescopic booms
Product Description

1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.

2. Main parts: Crane. (Different lifting capacities match different chassis.)

3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification
General Technical Parameters
Overall Dimension 12000×2550×3980 (mm)
Gross Vehicle Weight 24900(Kg)
Curb Weight 15800(Kg)
Chassis Specification
Chassis Brand Shacman
Drive model 8*4
Cabin Double, Left Hand Driving, with air conditional
Number of Passengers 3

Engine

 Model 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power 231KW/315HP
Emission standard EURO 3
Displacement 8300(ml)
Fuel type Diesel
Gearbox 9Forwards & 1Reverse
Brake System Air break
Wheel Base 2100+4575+1400 mm
Front/Rear Axle Loading 8000/11500(Kg)
Approach/Departure Angle 23/12(°)
Overhang 1250/3545(mm)
Tire 11.00R20
Max Driving Speed 90(km/h)
Upperstructure Specification

Cargo Body

 Dimension 8200×2450×600(mm)
Material Q235 carbon steel
Cargo Thickness Side 1.5mm, Bottom 2.5mm

Working System

 Boom Type Straight 4-Arm telescopic boom

Crane

 Crane Brand S-ANY or CLW
Range of Sprayer 30m
Max Lifting Moment 25(T.M)
Max Lifting Capacity 16000(kg)
Max lifting height 12(m)
Rotation angle 360(°)
Installation space 1150(mm)
Recommented power 30(kw)
Maximum working pressure 26(Mpa)
Max Flow 63(l/min)
Crane weight 3800(kg)
Oil tank capacity 160(L)
Leg Leg type H type
Leg Span 2.28-5.9(m)
Hydraulic system Pressure 18(M pa)
Capacity 70(l)
Other Configuration Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
