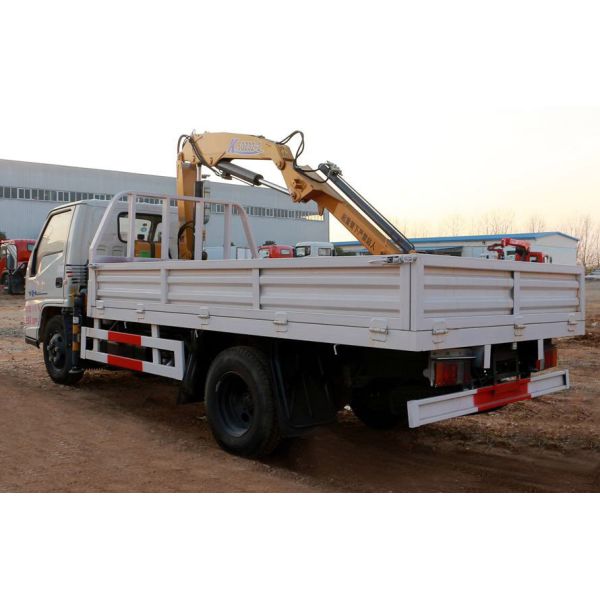

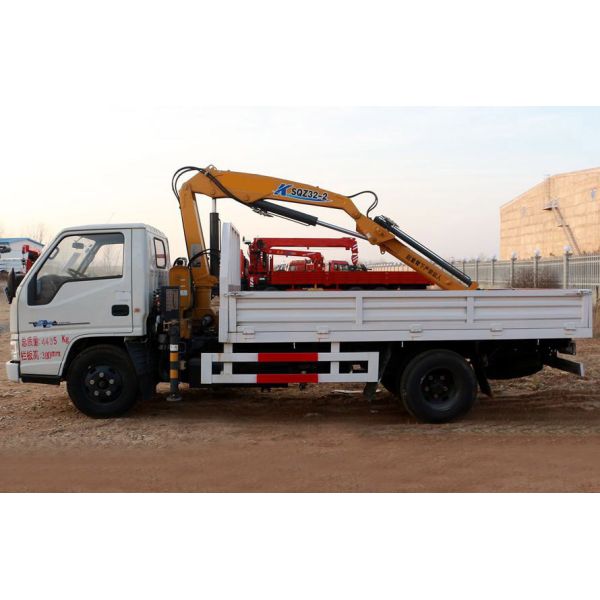

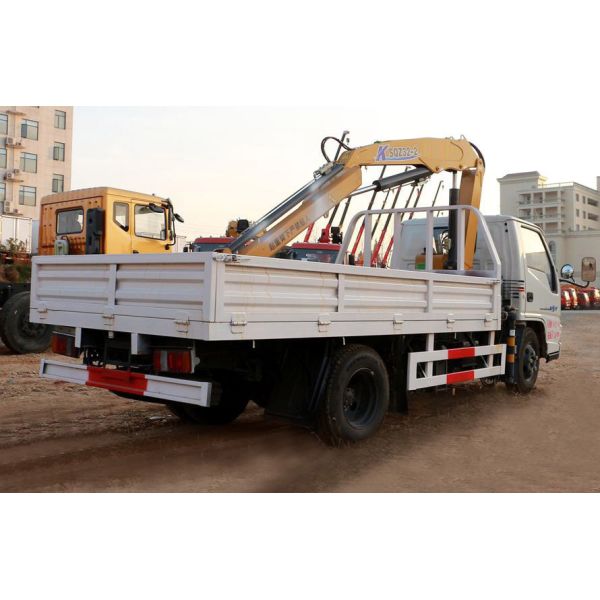

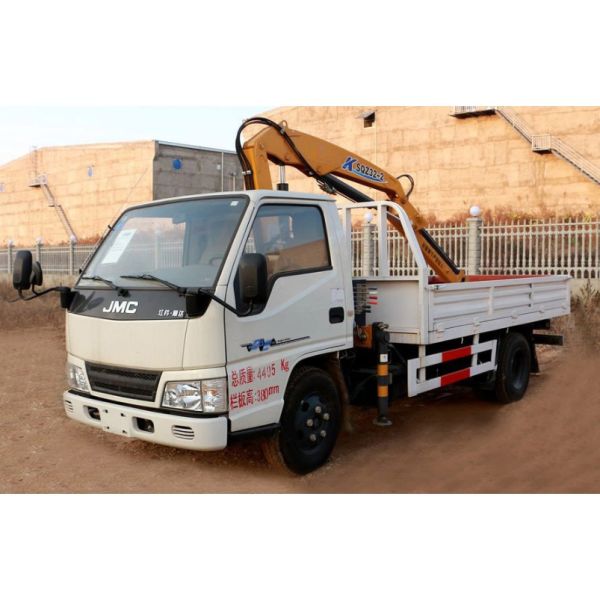

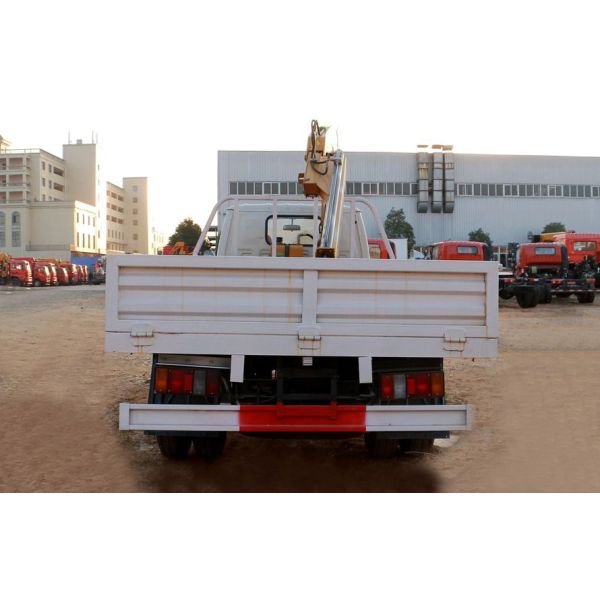

Jmc/JAC 2ton 3tons Mini Truck Crane With Knuckle Folding Arm Crane
Jmc/JAC 2ton 3tons Mini Truck Crane With Knuckle Folding Arm Crane
Jmc/JAC 2ton 3tons Mini Truck Crane With Knuckle Folding Arm Crane
Jmc/JAC 2ton 3tons Mini Truck Crane With Knuckle Folding Arm Crane
Jmc/JAC 2ton 3tons Mini Truck Crane With Knuckle Folding Arm Crane
Jmc/JAC 2ton 3tons Mini Truck Crane With Knuckle Folding Arm Crane
Jmc/JAC 2ton 3tons Mini Truck Crane With Knuckle Folding Arm Crane
Jmc/JAC 2ton 3tons Mini Truck Crane With Knuckle Folding Arm Crane
Jmc/JAC 2ton 3tons Mini Truck Crane With Knuckle Folding Arm Crane
Jmc/JAC 2ton 3tons Mini Truck Crane With Knuckle Folding Arm Crane
Specifications
Cargo Material :
Q235 Carbon Steel
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Condition :
New
Crane Boom Type :
Straight Telescopic Crane, Knuckle Crane
HS Code :
8705909990
Shaft Number :
2
Production Capacity :
500 Unit/Month
Cargo Thickness :
Side 1.5mm, Bottom 2.5mm
Maximum Lifting Weight :
2-4t
Crane Capacity :
2ton, 3ton, 3.2ton, 4ton, etc.
Model NO. :
CLW5089SCD
Crane Brand :
S-Any, Rlq, etc.
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Maximum Lifting Height :
<10m
Chassis Brand :
Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
Name :
Mini Truck Crane
Trademark :
CLW
Place of Origin :
CHINA
Brand Name :
CLW
Engine Brand :
I-Suzu, 116HP
Origin :
Suizhou, China
Gearbox :
5forwards & 1reverse
Type :
Folding
Boom Type :
Straight 3-Arm Telescopic Boom
MOQ :
1
Price :
15000-35000 per unit
Crane Jib :
Three-Arm
Specification :
2ton, 3ton, 3.2ton
Description

JMC/JAC 2Ton 3Tons 3.2Tons Construction Truck with Knuckle Folding Arm Crane

Product Description

Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
Main parts: Crane. (Different lifting capacities match different chassis.)
Advantage: One truck combines the functions of crane and dump truck.

Product Specification

General Technical Parameters
Overall Dimension5995×2065×2900 (mm)
Gross Vehicle Weight4495(Kg)
Curb Weight3255(Kg)
Chassis Specification
Chassis BrandJMC
Drive model4*2
CabinSingle, Left Hand Driving, with air conditional
Number of Passengers2




Engine

Model4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power85KW/116HP
Emission standardEURO 3
Displacement2771(ml)
Fuel typeDiesel
Gearbox5Forwards & 1Reverse
Brake SystemAir break
Wheel Base3360mm
Front/Rear Axle Loading1500/3000(Kg)
Approach/Departure Angle23/12(°)
Overhang1250/3545(mm)
Tire7.00R16
Max Driving Speed90(km/h)
Upperstructure Specification


Cargo Body

Dimension2770×1850×380(mm)
MaterialQ235 carbon steel
Cargo ThicknessSide 1.5mm, Bottom 2.5mm












Working System

Boom TypeStraight 3-Arm telescopic boom







Crane

Crane BrandS-ANY or CLW
Range of Sprayer30m
Max Lifting Moment25(T.M)
Max Lifting Capacity2000(kg)
Max lifting height12(m)
Rotation angle360(°)
Installation space1150(mm)
Recommented power30(kw)
Maximum working pressure26(Mpa)
Max Flow63(l/min)
Crane weight3800(kg)
Oil tank capacity160(L)
LegLeg typeH type
Leg Span2.28-5.9(m)
Hydraulic systemPressure18(M pa)
Capacity70(l)
Other ConfigurationControl system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
OptionsCaution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
