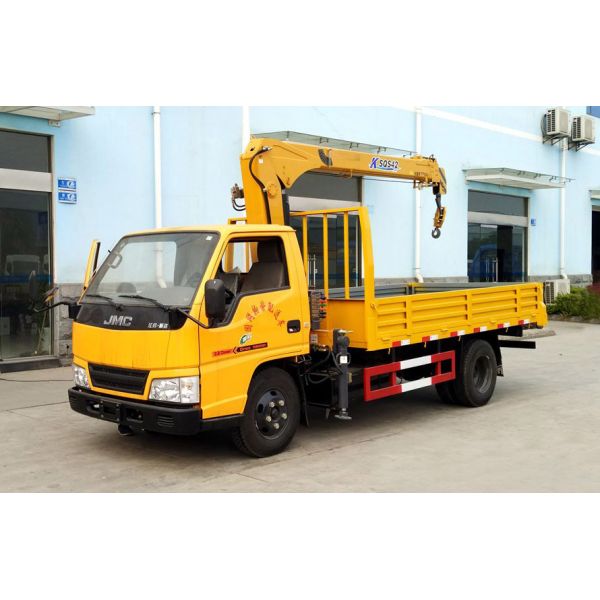

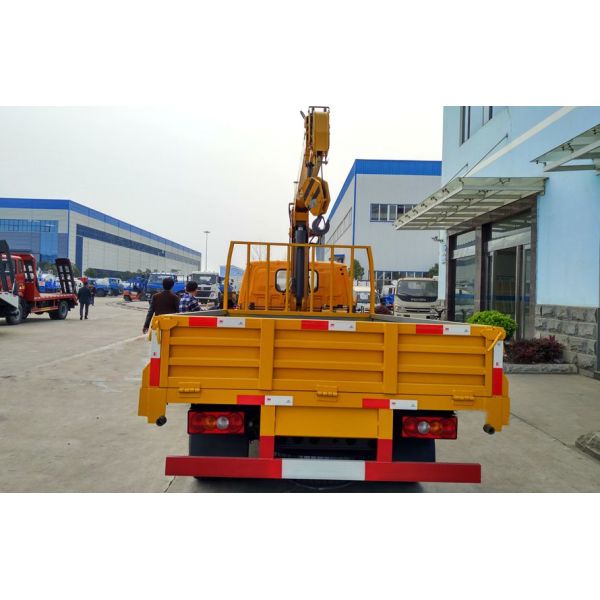

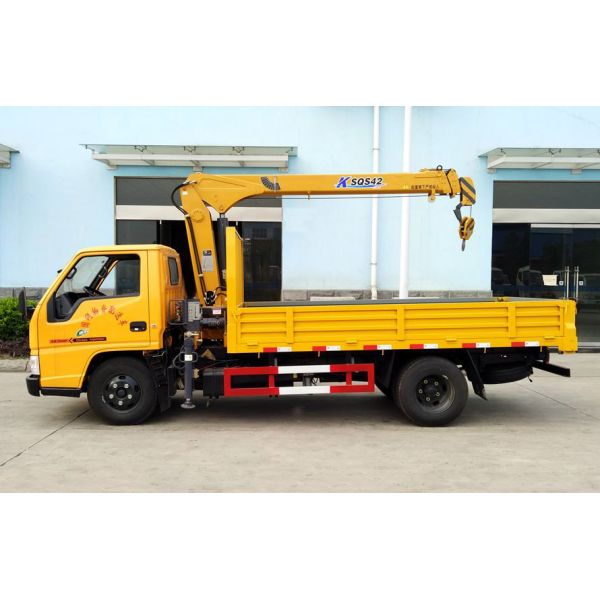

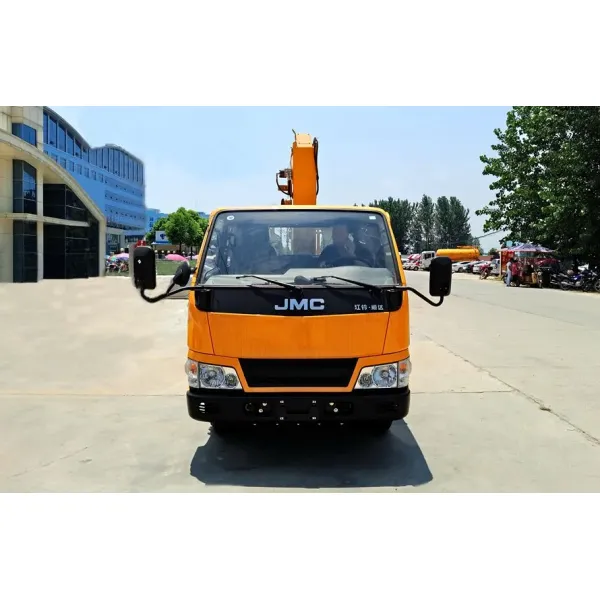

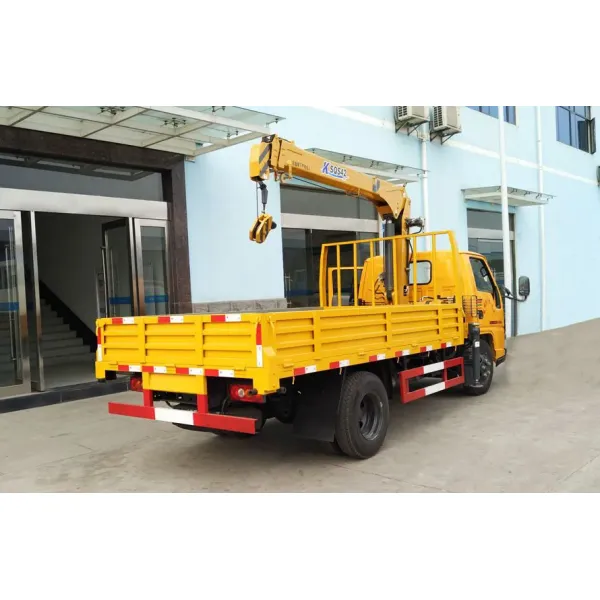

Jmc Mounted Truck Crane 2ton 3.2tons Construction Machine Boom Crane Truck
Jmc Mounted Truck Crane 2ton 3.2tons Construction Machine Boom Crane Truck
Jmc Mounted Truck Crane 2ton 3.2tons Construction Machine Boom Crane Truck
Jmc Mounted Truck Crane 2ton 3.2tons Construction Machine Boom Crane Truck
Jmc Mounted Truck Crane 2ton 3.2tons Construction Machine Boom Crane Truck
Jmc Mounted Truck Crane 2ton 3.2tons Construction Machine Boom Crane Truck
Jmc Mounted Truck Crane 2ton 3.2tons Construction Machine Boom Crane Truck
Jmc Mounted Truck Crane 2ton 3.2tons Construction Machine Boom Crane Truck
Jmc Mounted Truck Crane 2ton 3.2tons Construction Machine Boom Crane Truck
Jmc Mounted Truck Crane 2ton 3.2tons Construction Machine Boom Crane Truck
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Boom Type :
Straight 3-Arm Telescopic Boom
Specification :
2ton, 3ton, 3.2ton
Production Capacity :
500 Unit/Month
Crane Jib :
Three-Arm
Maximum Lifting Height :
<10m
Crane Boom Type :
Straight Telescopic Crane, Knuckle Crane
Model NO. :
CLW5089SCD
Shaft Number :
2
Condition :
New
Cargo Material :
Q235 Carbon Steel
Chassis Brand :
Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc
Trademark :
CLW
Crane Capacity :
2ton, 3ton, 3.2ton, 4ton, etc.
Cargo Thickness :
Side 1.5mm, Bottom 2.5mm
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
HS Code :
8705909990
Gearbox :
5forwards & 1reverse
Origin :
Suizhou, China
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Engine Brand :
Optional, 116HP
Crane Brand :
Clw, etc.
Maximum Lifting Weight :
2-4t
Name :
Truck Mounted Crane
Type :
Straight Arm
MOQ :
1
Price :
15000-35000 per unit
Description
China JMC Truck Crane 2Ton/3.2tons Construction Machine Boom crane truck Service Truck Crane
Product Description

Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
Main parts: Crane. (Different lifting capacities match different chassis.)
Advantage: One truck combines the functions of crane and dump truck.

Product Specification
General Technical Parameters
Overall Dimension5995×2065×2900 (mm)
Gross Vehicle Weight4495(Kg)
Curb Weight3255(Kg)
Chassis Specification
Chassis BrandJMC
Drive model4*2
CabinSingle, Left Hand Driving, with air conditional
Number of Passengers2




Engine

Model4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power85KW/116HP
Emission standardEURO 3
Displacement2771(ml)
Fuel typeDiesel
Gearbox5Forwards & 1Reverse
Brake SystemAir break
Wheel Base3360mm
Front/Rear Axle Loading1500/3000(Kg)
Approach/Departure Angle23/12(°)
Overhang1250/3545(mm)
Tire7.00R16
Max Driving Speed90(km/h)
Upperstructure Specification


Cargo Body

Dimension2770×1850×380(mm)
MaterialQ235 carbon steel
Cargo ThicknessSide 1.5mm, Bottom 2.5mm















Working System

Boom TypeStraight 3-Arm telescopic boom







Crane

Crane BrandCLW
Range of Sprayer30m
Max Lifting Moment25(T.M)
Max Lifting Capacity2000(kg)
Max lifting height12(m)
Rotation angle360(°)
Installation space1150(mm)
Recommented power30(kw)
Maximum working pressure26(Mpa)
Max Flow63(l/min)
Crane weight3800(kg)
Oil tank capacity160(L)
LegLeg typeH type
Leg Span2.28-5.9(m)
Hydraulic systemPressure18(M pa)
Capacity70(l)
Other ConfigurationControl system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
OptionsCaution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
