Product Usage

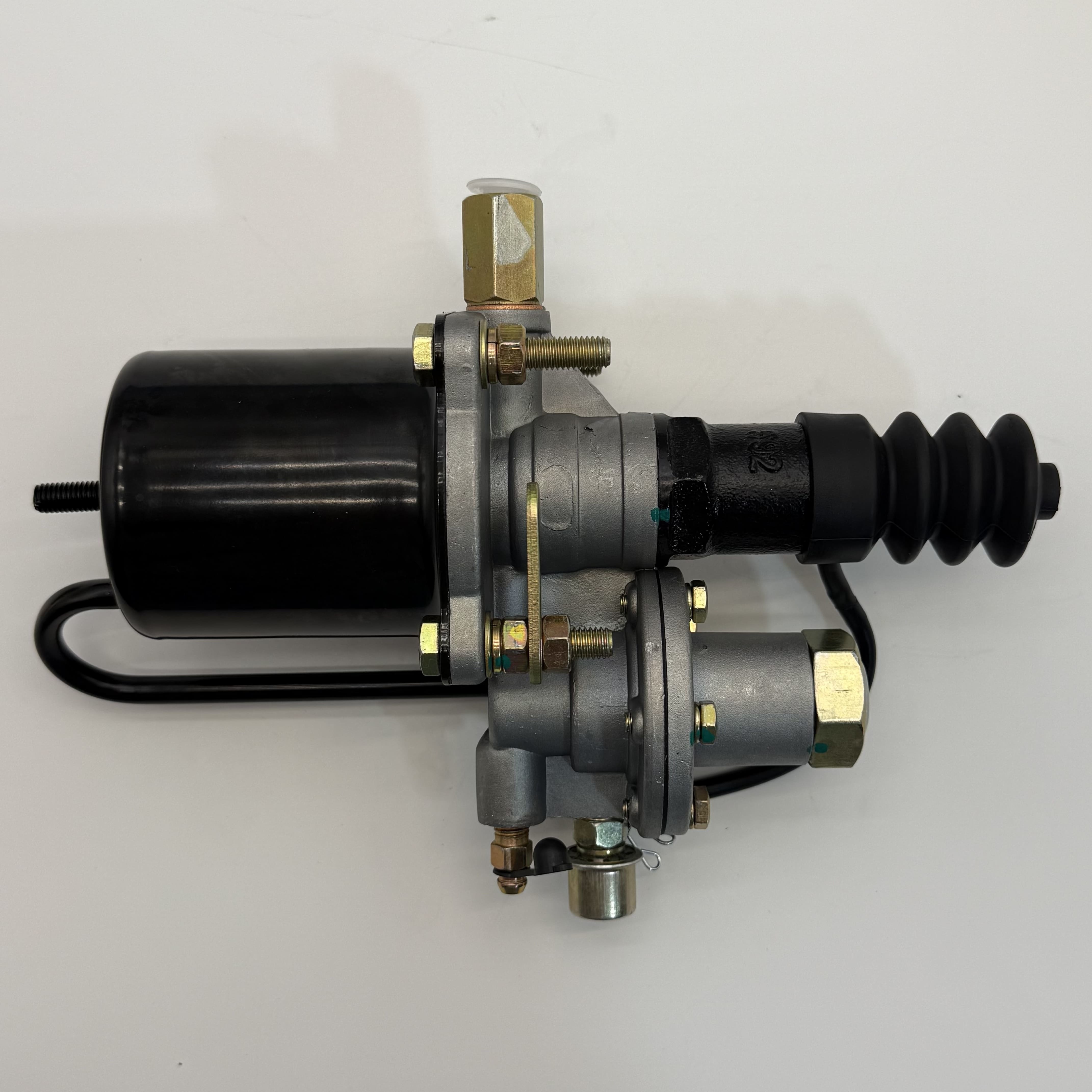

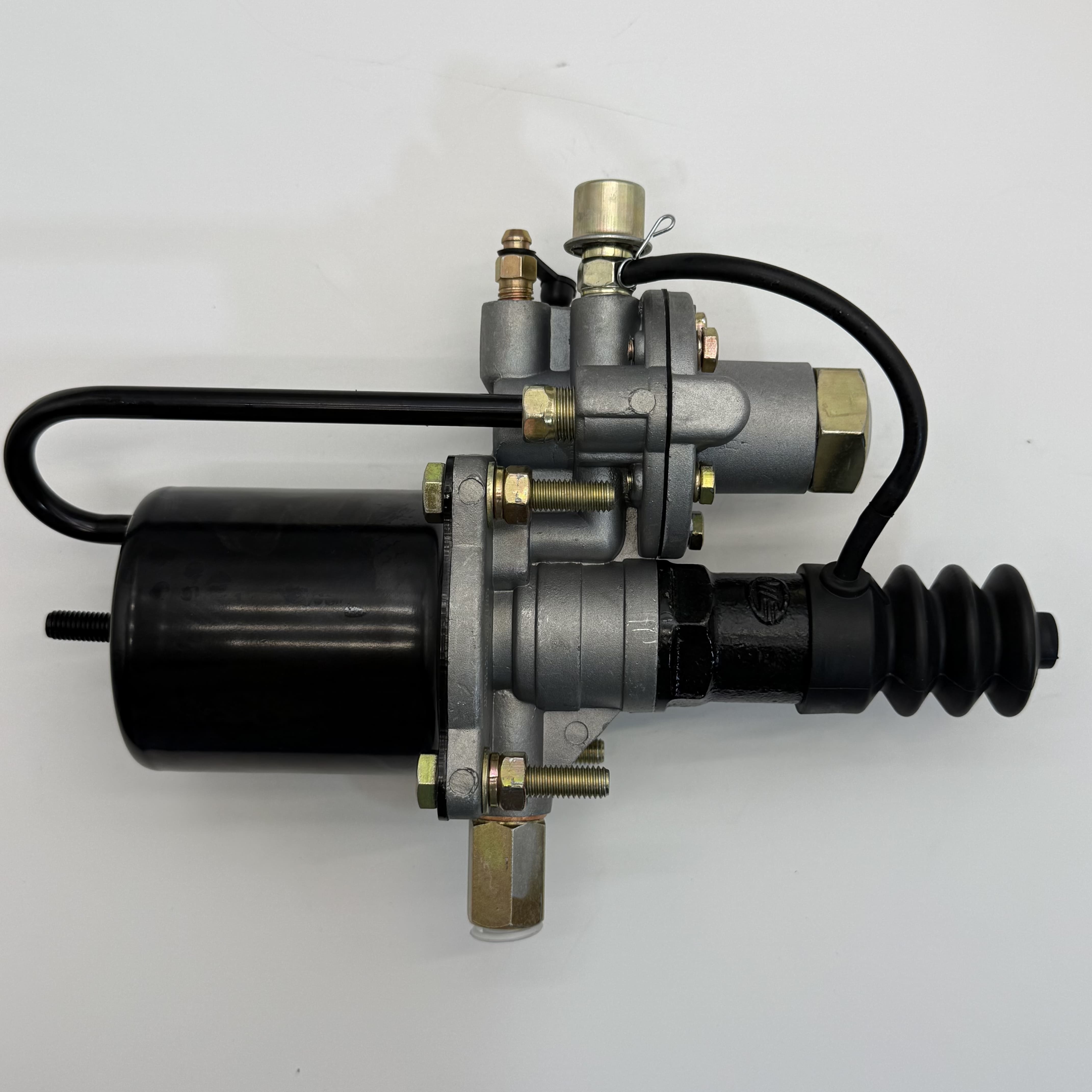

This 70mm bore clutch booster, model 1607300S7BB, is an air-over-hydraulic power-assisted component specially designed for city buses, tourist coaches and heavy-duty passenger buses.

It provides power assistance for the clutch pedal, reduces the operating force of drivers, realizes smooth separation and engagement of the clutch, and ensures stable and smooth gear shifting during driving.

It is an essential spare part for overhaul, maintenance and replacement of vehicle clutch system.

Product Features

1. Adopts standard 70mm cylinder bore design with stable and balanced thrust output.

2. Integral air-hydraulic combined structure, fast response and uniform force transmission.

3. Equipped with high-quality nitrile rubber diaphragm and anti-rust alloy steel push rod, wear-resistant and pressure-resistant.

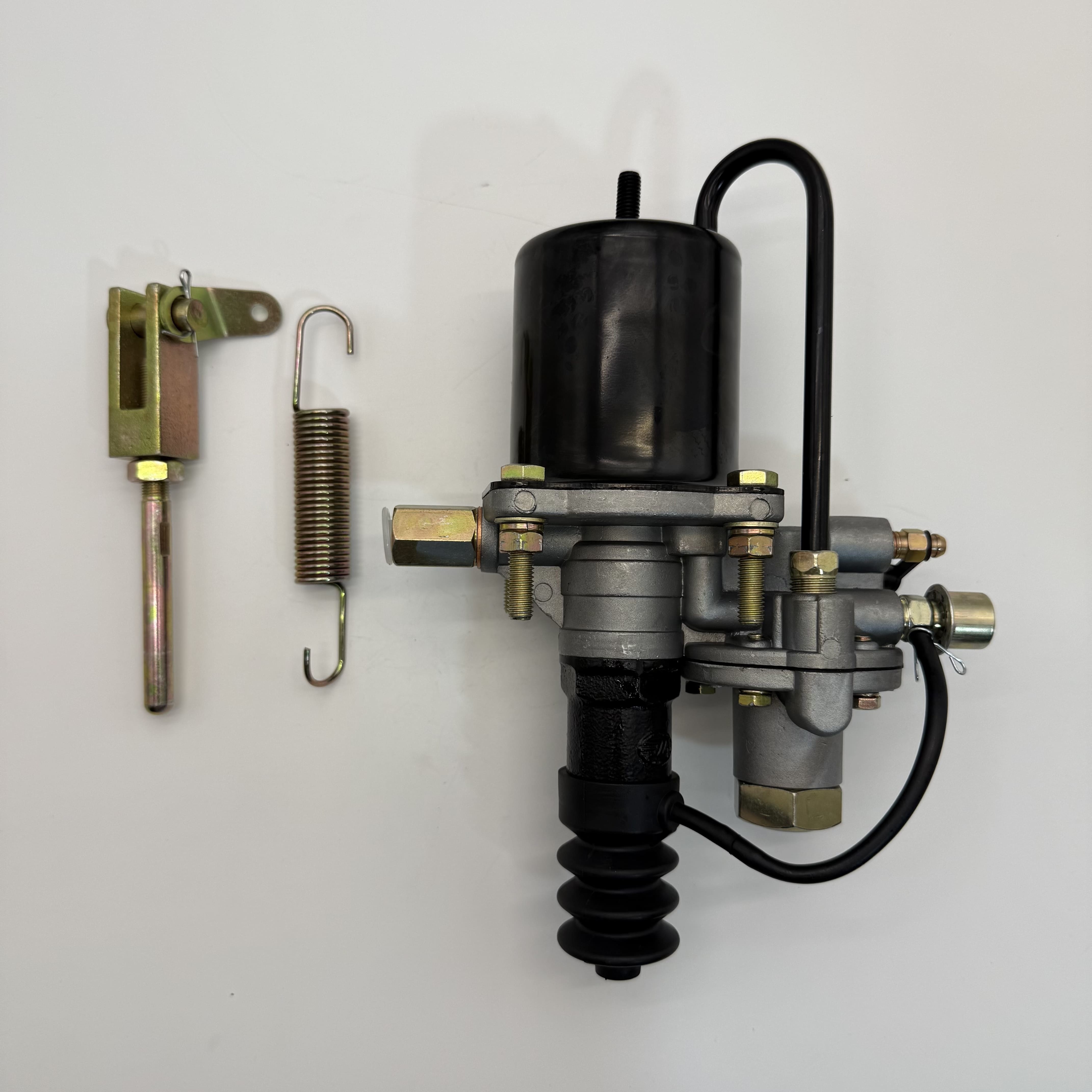

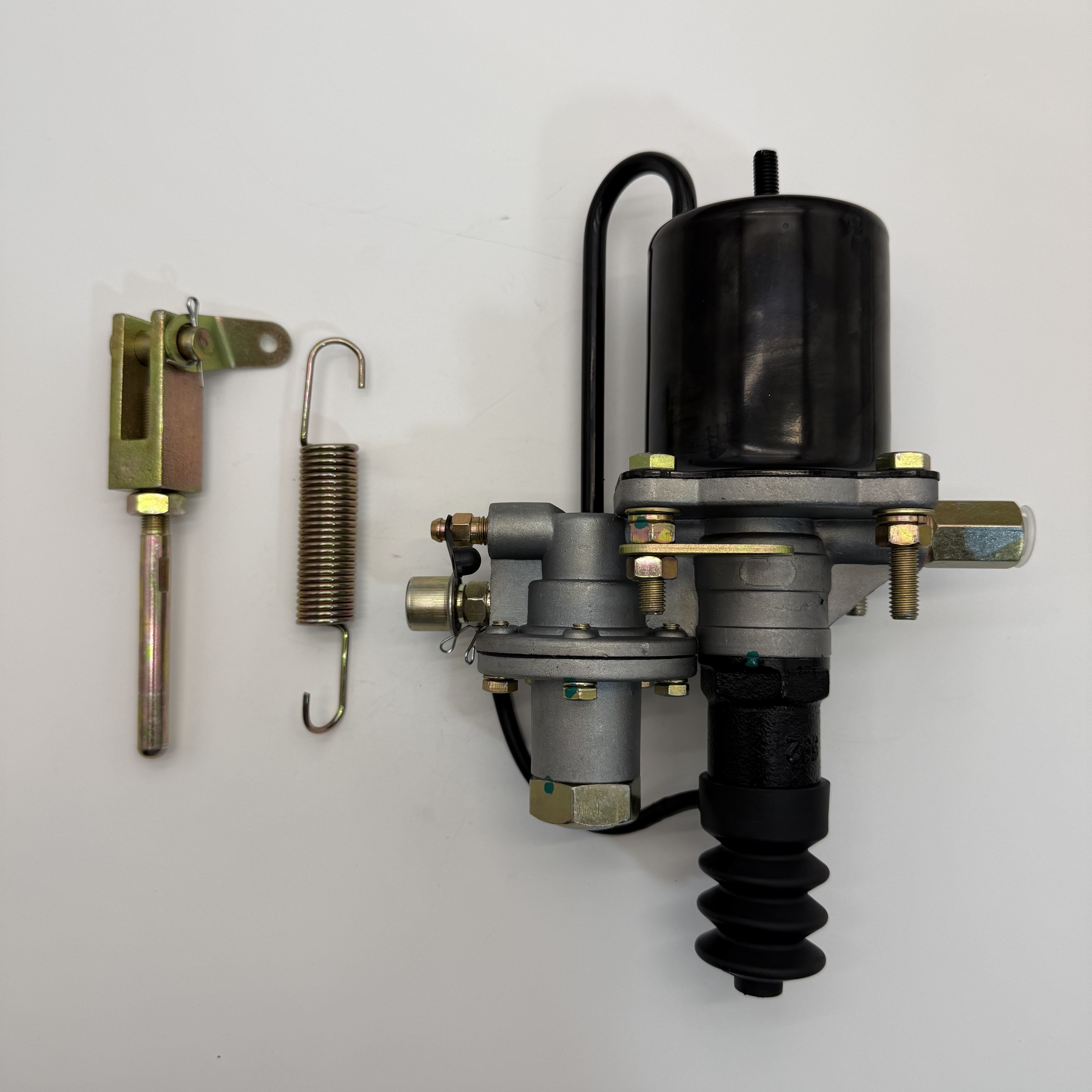

4. Complete assembly equipped with clevis yoke and return spring, convenient for direct installation.

Product Advantages

1. Excellent sealing performance, effectively prevent air leakage and oil leakage under long-term working conditions.

2. Low failure rate and long service life, effectively reduce later maintenance costs.

3. Light clutch operation, greatly improve driver’s driving comfort.

4. High overall structural strength, suitable for various complex road working conditions.

5. Brand new spare parts with OEM equivalent quality, direct replacement without modification.

Installation Steps

1. Cut off the vehicle air supply and release residual pressure inside the clutch pipeline.

2. Remove the old clutch booster and thoroughly clean the installation contact surface.

3. Align the new clutch booster with mounting holes and tighten fixing bolts evenly.

4. Correctly connect air pipelines and hydraulic oil pipelines.

5. Add qualified brake fluid into the clutch system and fully bleed air from the pipeline.

6. Test the flexibility of the clutch pedal and check all joints for air and oil leakage before formal operation.

Important Notes

1. Do not force installation or skewed assembly, otherwise it will cause permanent damage to internal components.

2. All pipeline joints must be tightened reliably to avoid pressure loss.

3. Air bleeding must be completed after installation; incomplete exhaust will lead to heavy clutch or incomplete separation.

4. Regularly check the sealing status and brake fluid level during daily driving.

5. It is forbidden to use inferior brake fluid, which will accelerate the aging and failure of the rubber diaphragm.

6. Check the push rod stroke after installation to ensure the clutch works within the normal stroke range.
