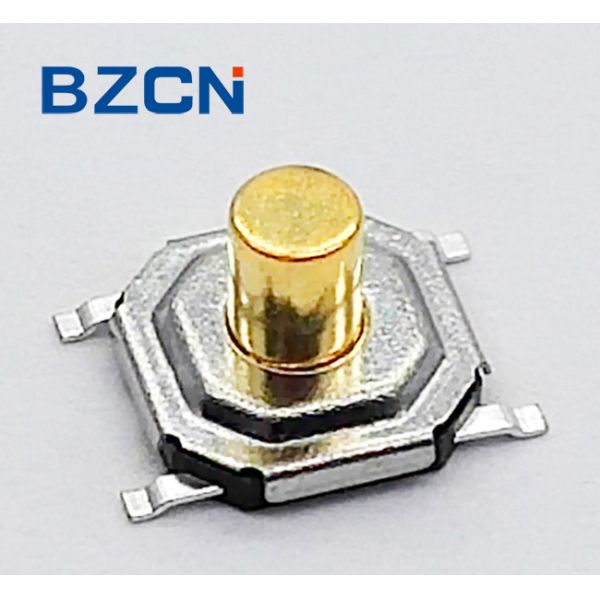

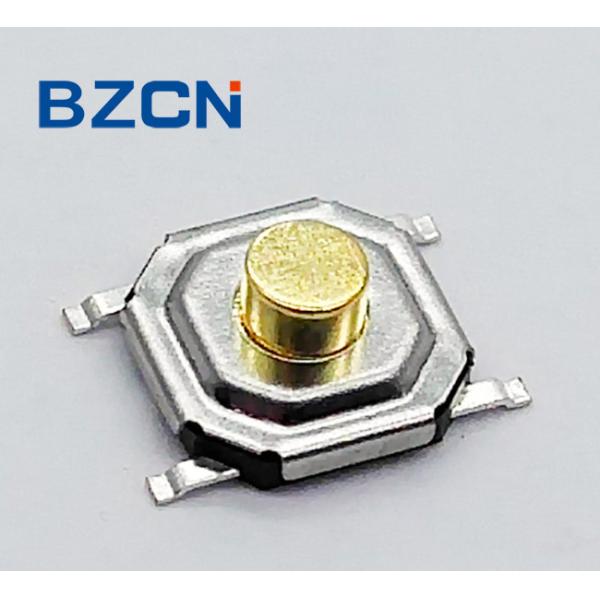

Metal Case Normally Closed Tactile Switch 12V Voltage With Brass Button
Metal Case Normally Closed Tactile Switch 12V Voltage With Brass Button
Metal Case Normally Closed Tactile Switch 12V Voltage With Brass Button
Metal Case Normally Closed Tactile Switch 12V Voltage With Brass Button
Specifications
Brand Name :
BZCN
Model Number :
TS-C005
Certification :
SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Press :
Vertical
Operation force :
180 gf
Rating :
50mA
Voltage :
12V
Terminal :
SMD Surface mount
Pin No. :
4 pins
Description

metal case 5*5 mm surface mount tactile switch momentary with brass button

SMT tactile switch has a very low profile design and positive tactile response. It has two opearating force options to choose from. It's low profile is a mere 1.54mm high.

Markets for this tact switch include medical, testing/instrumentation, consumer electronics, telecommunications and more.

Feature.

Reflow solderable.

With earth anti ESD ground terminal.

Packing in tape reel available.

Spec.

Model No. TS-C005
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

Metal Case Normally Closed Tactile Switch 12V Voltage With Brass Button
