Industrial Momentary Push Switch Snap In Top Push Tactile Switch Long Travel Stem Push
Industrial Momentary Push Switch Snap In Top Push Tactile Switch Long Travel Stem Push
Industrial Momentary Push Switch Snap In Top Push Tactile Switch Long Travel Stem Push
Industrial Momentary Push Switch Snap In Top Push Tactile Switch Long Travel Stem Push
Specifications
Brand Name :
BZCN
Model Number :
TS-D003
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per week
Delivery Time :
3 workdays
Packaging Details :
1000 pcs per bag
Material :
PA66
Operation :
Momentary
Current rate :
0.5mA
Voltage :
12v
Cover :
Iron
Terminal :
Copper
Description

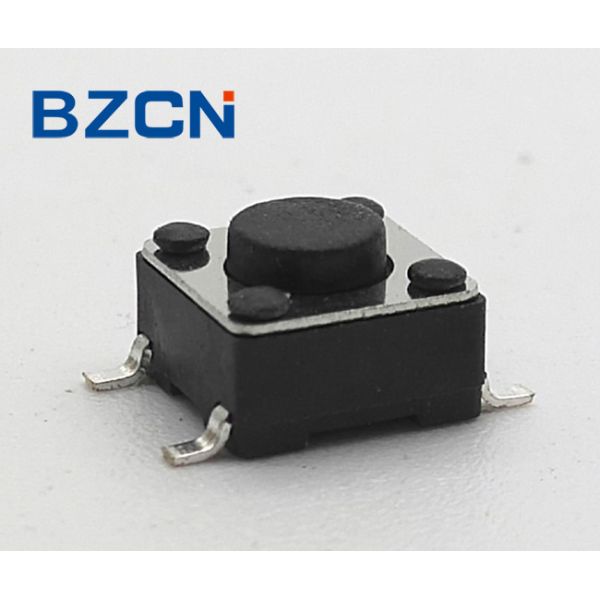

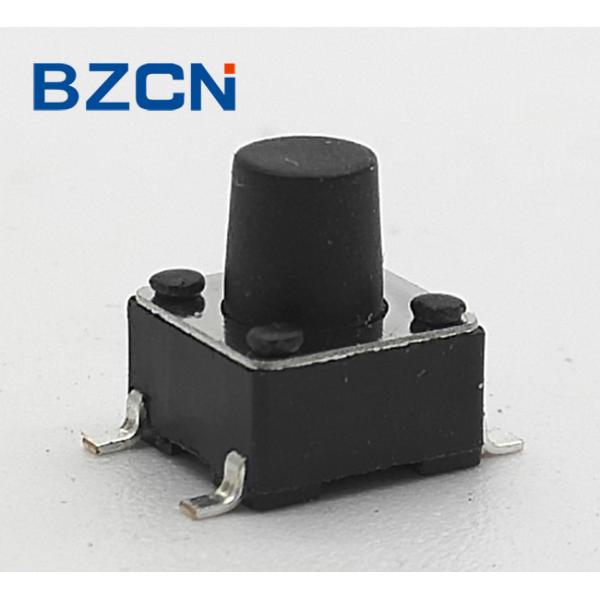

sharp feeling snap in top push tactile switch black button long travel stem push

switch has the highest sealing performance, making it ideal for consumer, automotive and industrial applications that must withstand erosion and harsh environments, such as regular exposure to water. The KSA MKII is also highly responsive due to its excellent tactile feel.

  • Highest tact switch sealing performance
  • Excellent tactile feel
  • Totally sealed
  • Consumer products
  • Automotive
  • Industrial
Spec.
Model No. TS-D003
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:
