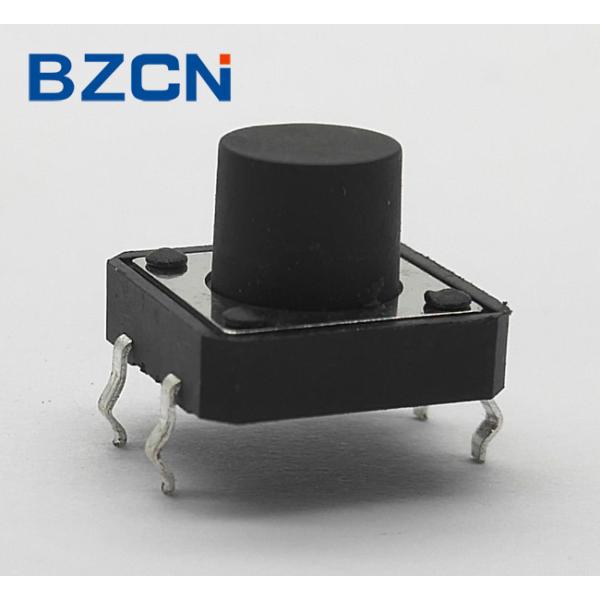

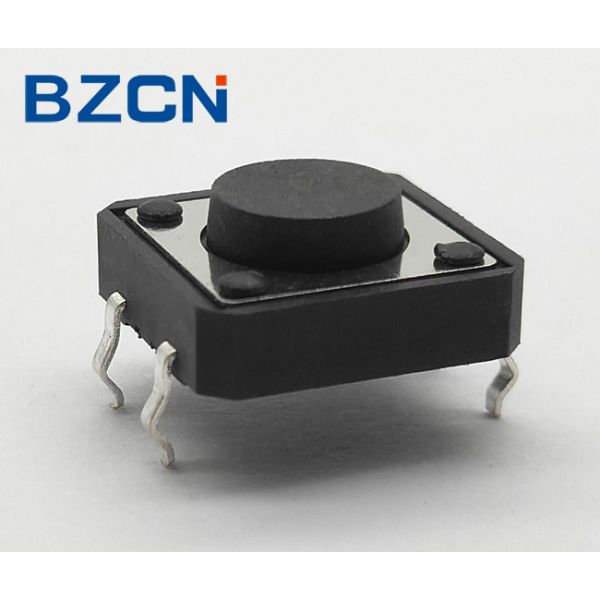

Black Push Button Normally Closed Tactile Switch , 12mm X 12mm Tactile Switch
Black Push Button Normally Closed Tactile Switch , 12mm X 12mm Tactile Switch
Black Push Button Normally Closed Tactile Switch , 12mm X 12mm Tactile Switch
Black Push Button Normally Closed Tactile Switch , 12mm X 12mm Tactile Switch
Specifications
Brand Name :
BZCN
Model Number :
TS-F001
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per week
Delivery Time :
3 workdays
Packaging Details :
1000 pcs per bag
Function :
Low profile
Operation :
Momentary
Current rate :
0.5mA
Voltage :
12v
Height :
Various height
Terminal :
Copper
Description

black push button 12 mm x 12 mm tactile switch normal closed silent switch

This component is suited to the following methods: Infrared reflow soldering in accordance with IEC 61760-1 for SMT version; Wave soldering compatible with lead free soldering profile

12mm x 12mm thru hole tactile switch offers reliable dome contact technology with strong tactile/audible feedback. Its multiple operating force options allows it to be applied to many industries: telecommunications, consumer electronics, medical, testing/instrumentation, computer/servers/peripherals and audio/visual.

Spec.
Model No. TS-F001
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

Black Push Button Normally Closed Tactile Switch , 12mm X 12mm Tactile Switch
