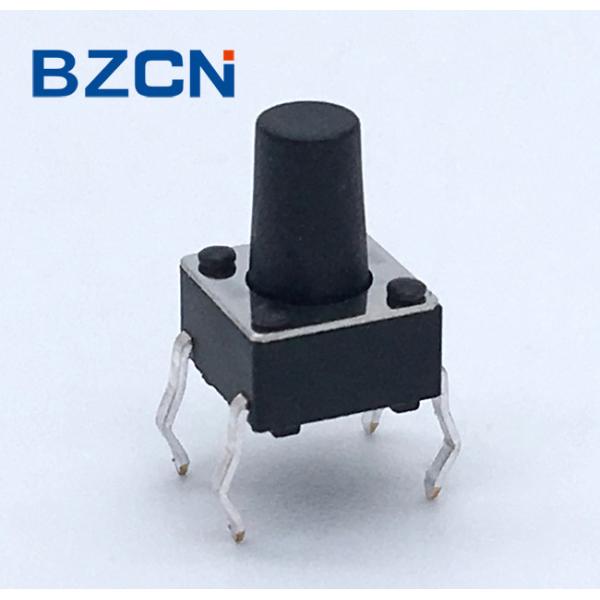

6 X 6 X 6 Mm Momentary SPST Tactile Switch , Miniature Push Button Switch

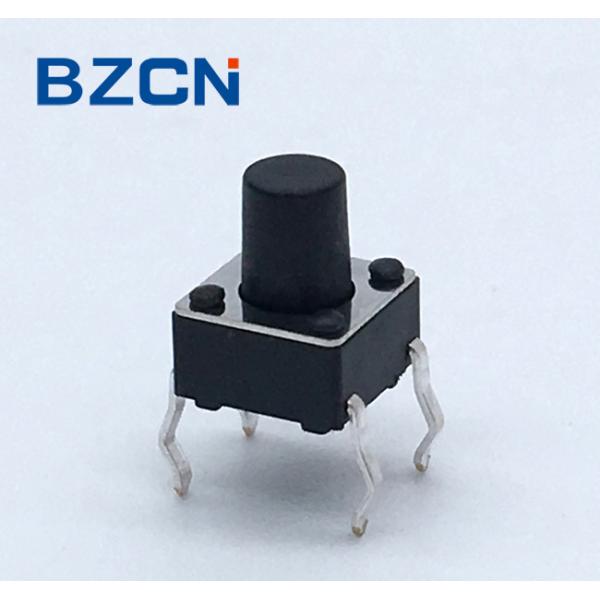

6 X 6 X 6 Mm Momentary SPST Tactile Switch , Miniature Push Button Switch

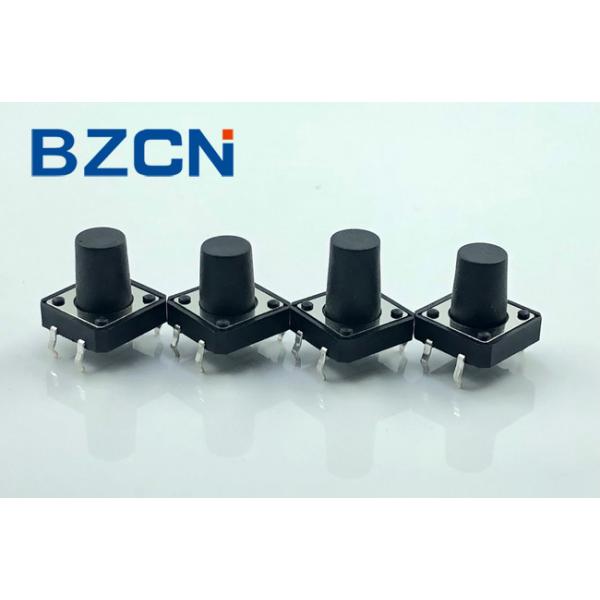

6 X 6 X 6 Mm Momentary SPST Tactile Switch , Miniature Push Button Switch
6 X 6 X 6 Mm Momentary SPST Tactile Switch , Miniature Push Button Switch
Specifications
Brand Name :
BZCN
Model Number :
TS-D001
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per week
Delivery Time :
3 workdays
Packaging Details :
1000 pcs per bag
Material :
PA66 case with button
color :
Black
Current rate :
50 mA
Voltage :
12 v
Cover :
Iron
Terminal :
Copper
Description

6 x 6 x 6 mm Momentary Tactile Tact Touch Push Button Switch SPST Miniature

6mm tact switches, designed to provide those designing for consumer product, instrumentation and computing equipment applications the long-lasting, responsive switch they need. switches are compact (6 x 6mm) and are available in a variety of actuator lengths, with a choice of actuation force, allowing you to customize the switch to your product’s needs.

Features

● High operating force (3.0N or 3.6N) suited to automotive equipment requirements
● Long life of 300,000 cycles realized despite the high operating force
● Middle stroke (1.05mm)

Spec.
Model No. TS-D001
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds
