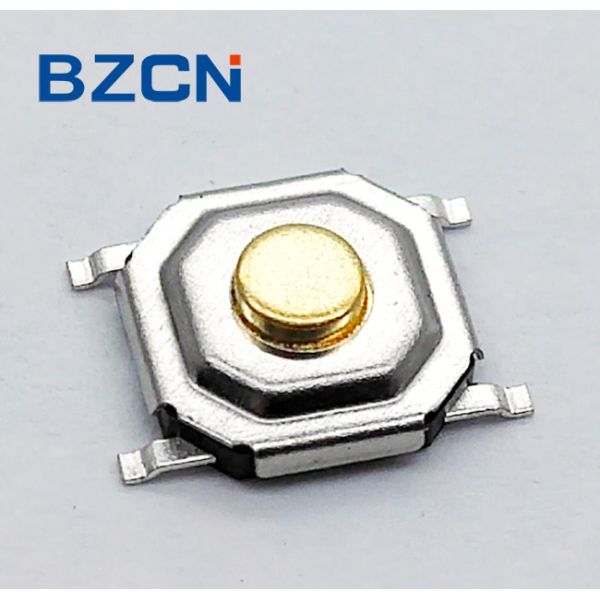

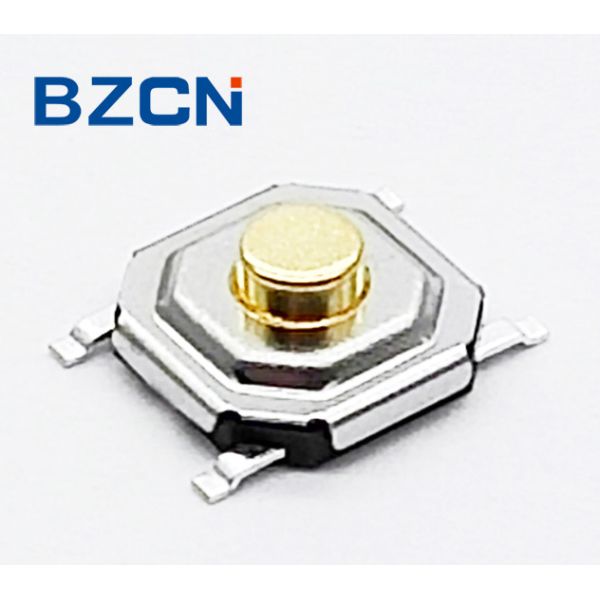

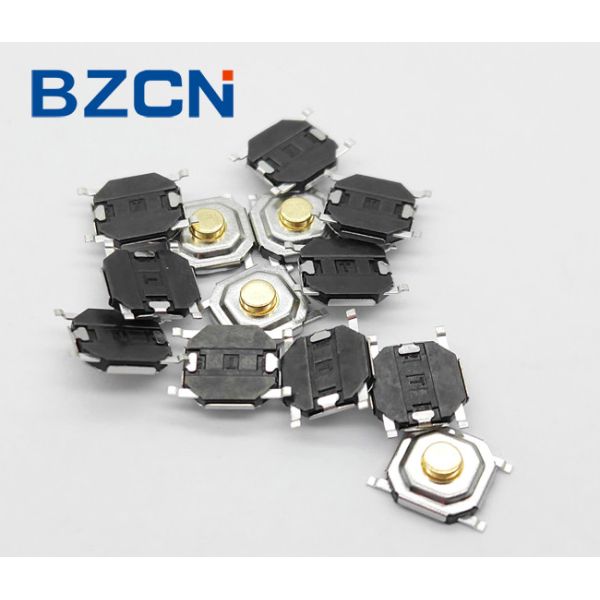

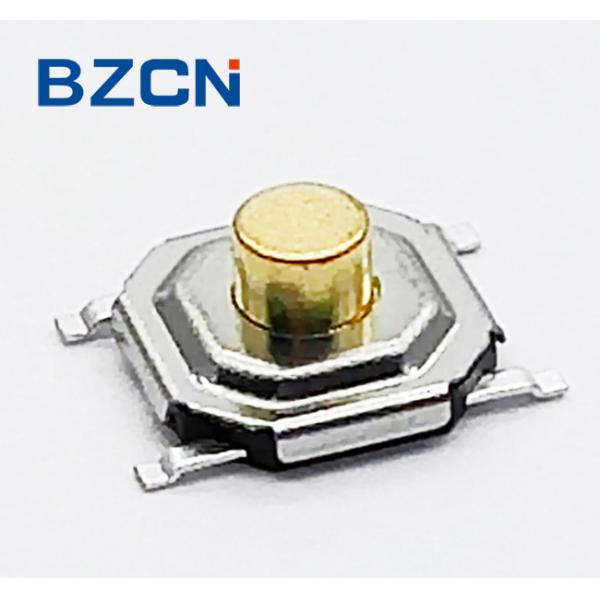

4 Pins Momentary Tactile Switch 50mA Rating Copper Terminal Silver Plate
4 Pins Momentary Tactile Switch 50mA Rating Copper Terminal Silver Plate
4 Pins Momentary Tactile Switch 50mA Rating Copper Terminal Silver Plate
4 Pins Momentary Tactile Switch 50mA Rating Copper Terminal Silver Plate
Specifications
Brand Name :
BZCN
Model Number :
TS-C005
Certification :
SGS
Place of Origin :
China
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000000 pcs per week
Delivery Time :
5 days
Packaging Details :
1000 pcs per bag
Button :
Brass
Operation :
Momentary
Rating :
50mA
Voltage :
12V
Terminal :
SMT Surface mount
Pin No. :
4 pins
Description

copper terminal silver plate 5 mm surface mount tactile switch momentary operation

microminiature tact switches for SMT from BZ are available in a ruggedized package, in a compact size, with either a 0.8mm or a 1.5mm actuator height. Often found designed into remote controls, instrumentation and various other consumer products, switches can withstand harsh environments to keep working for a high number of cycles.

Feature.

Reflow solderable.

With earth anti ESD ground terminal.

Packing in tape reel available.

Spec.

Model No. TS-C005
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

4 Pins Momentary Tactile Switch 50mA Rating Copper Terminal Silver Plate4 Pins Momentary Tactile Switch 50mA Rating Copper Terminal Silver Plate
