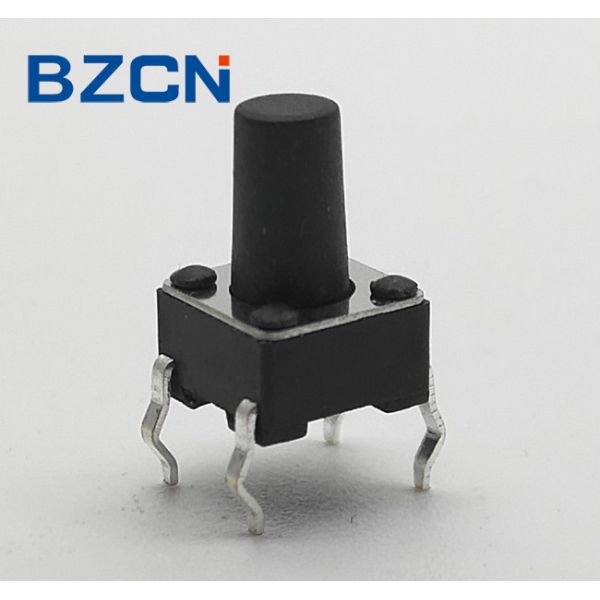

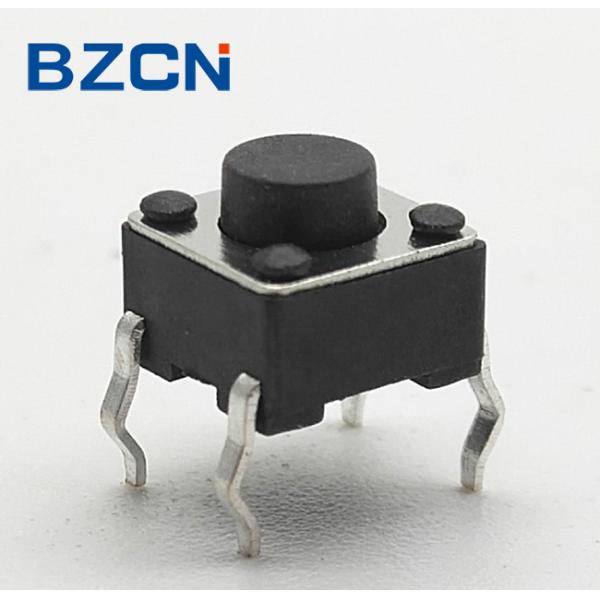

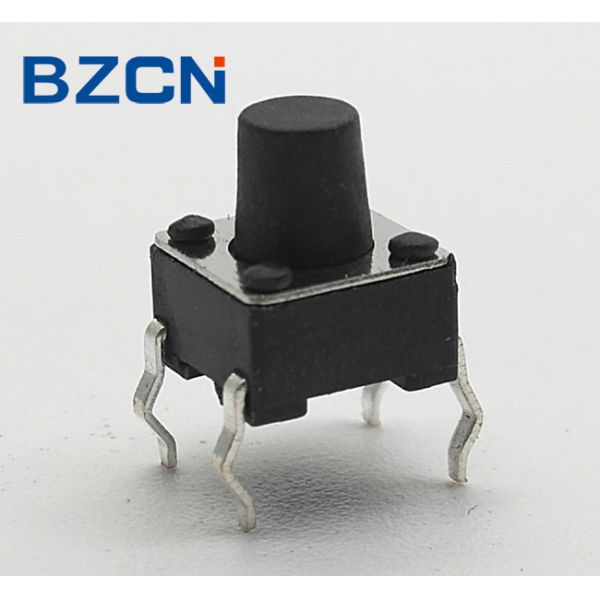

Sharp Feeling Normally Closed Tactile Switch Brass Terminal With Silver Coating
Sharp Feeling Normally Closed Tactile Switch Brass Terminal With Silver Coating
Sharp Feeling Normally Closed Tactile Switch Brass Terminal With Silver Coating
Sharp Feeling Normally Closed Tactile Switch Brass Terminal With Silver Coating
Specifications
Brand Name :
BZCN
Model Number :
TS-D001
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per week
Delivery Time :
3 workdays
Packaging Details :
1000 pcs per bag
Type :
Sealed
Operation :
Momentary
Current rate :
0.5mA
Pin :
4 pin
Cover :
Iron
Terminal :
Copper
Description

sharp feeling snap in top push tactile switch brass terminal with silver coating

Preheating to 100°C for 45 sec. max. Keep flux flush with top surface of PCB; do not apply to component side of PCB and area where terminals are located. Soldering to 255°C for 5 sec. max. Clean by brushing on solder surface. Do not clean switch with solvents.


Applications

●Switches for car audio-visual and navigation systems, steering wheels
　and other automotive equipment
●Industrial equipment and measuring instruments

Spec.
Model No. TS-D001
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

Sharp Feeling Normally Closed Tactile Switch Brass Terminal With Silver Coating
