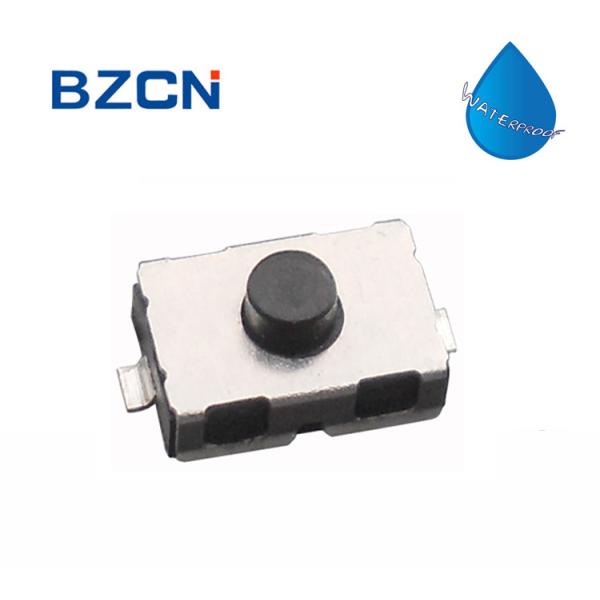

Waterproof 12 Volt Normally Closed Tactile Switch , Mini Push Button Switch
Waterproof 12 Volt Normally Closed Tactile Switch , Mini Push Button Switch
Specifications
Brand Name :
BZCN
Model Number :
TS-B009
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000000 pcs per week
Delivery Time :
2 days
Packaging Details :
1000 pcs per bag
Operation :
Momentary
Type :
NC
Material :
PA66
Button :
Soft silica
color :
Black/Blue
Rating :
50mA
Description

normally closed tact switch with waterproof 12 volt mini push button switch

Each model has different features ranging from low profile designs, many actuator sizes and operating forces.

Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation and computer/peripherals.

Feature.

high reliable contacts sealing structure.

Larger top surface of stem improve mounting speed.

Reflow solderable.

Normally closed contact

Spec.

Model No. TS-B009 NC
Terminal Type SMD
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

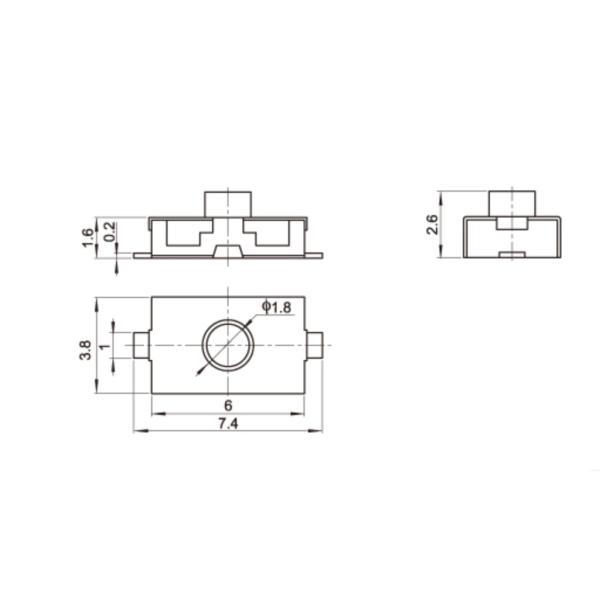

Drawing:

Waterproof 12 Volt Normally Closed Tactile Switch , Mini Push Button Switch
