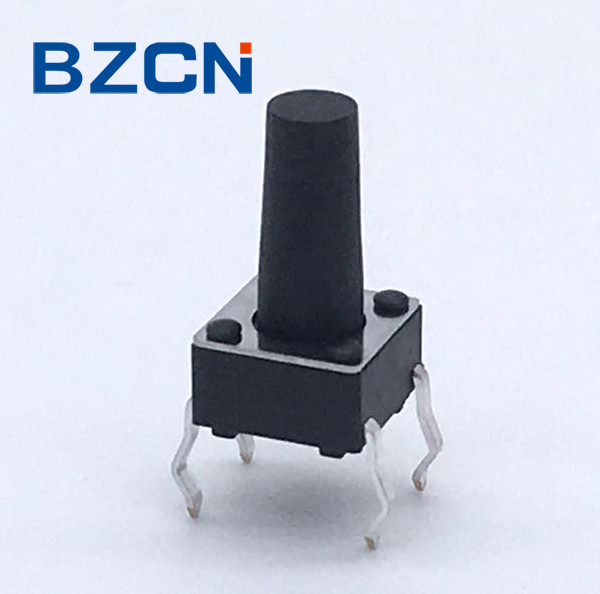

Consumer Electronics Normally Closed Tactile Switch Iron Cover 0.5mA Current Rate
Consumer Electronics Normally Closed Tactile Switch Iron Cover 0.5mA Current Rate
Consumer Electronics Normally Closed Tactile Switch Iron Cover 0.5mA Current Rate
Consumer Electronics Normally Closed Tactile Switch Iron Cover 0.5mA Current Rate
Specifications
Brand Name :
BZCN
Model Number :
TS-D001
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per week
Delivery Time :
3 workdays
Packaging Details :
1000 pcs per bag
Material :
PA66
Voltage :
12v
Operation :
Momentary
Cover :
Iron
Current rate :
0.5mA
Terminal :
Copper
Description

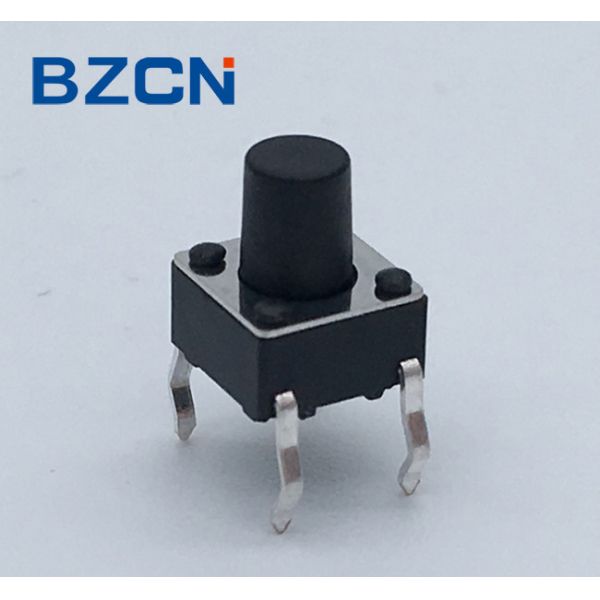

6 * 6 * 5 mm snap in NC tactile switch normally closed operation switch

Designed for DIP applications, each model has different features ranging from low profile designs, many actuator sizes and operating forces.

Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation and computer/peripherals.

Features

●High operating force (3.0N or 3.6N) suited to automotive equipment requirements
●Long life of 300,000 cycles realized despite the high operating force
●Middle stroke (1.05mm)

Applications

●Switches for car audio-visual and navigation systems, steering wheels
　and other automotive equipment
●Industrial equipment and measuring instruments

Spec.
Model No. TS-D001
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

Consumer Electronics Normally Closed Tactile Switch Iron Cover 0.5mA Current Rate
