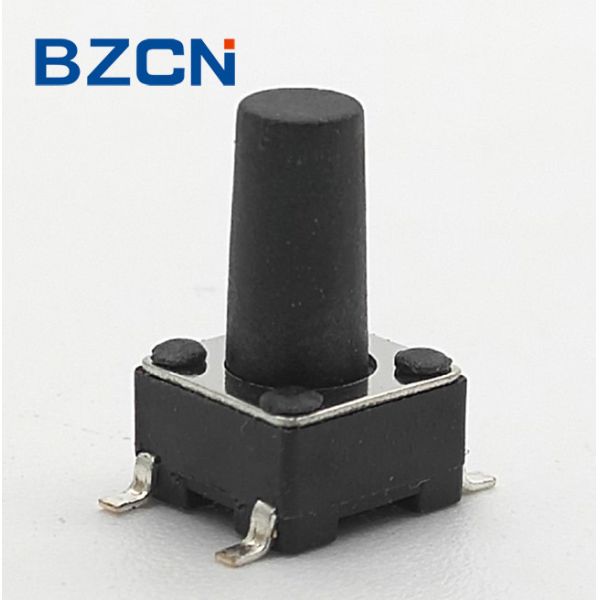

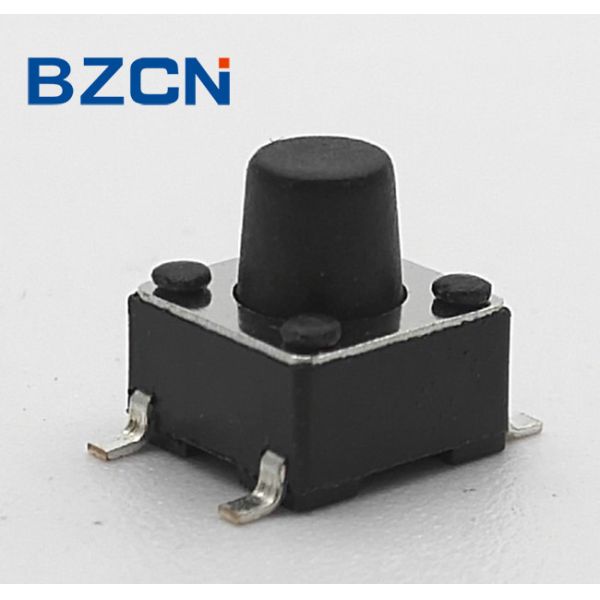

6.0 X 6.0 Mm Surface Mount Tactile Switch Reflow Solderable 4 Pin Terminal
6.0 X 6.0 Mm Surface Mount Tactile Switch Reflow Solderable 4 Pin Terminal
6.0 X 6.0 Mm Surface Mount Tactile Switch Reflow Solderable 4 Pin Terminal
6.0 X 6.0 Mm Surface Mount Tactile Switch Reflow Solderable 4 Pin Terminal
Specifications
Brand Name :
BZCN
Model Number :
TS-D003
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per week
Delivery Time :
3 workdays
Packaging Details :
1000 pcs per bag
Size :
6 mm
Operation :
Momentary
Current rate :
0.5mA
Voltage :
12v
Cover :
Iron
Terminal :
SMT type
Description

6.0 * 6.0 mm surface mounting tactile switch reflow solderable 4 pin terminal

Depending on the application, this component is suited to the following methods: Terminals being silver or gold plated over a nickel barrier, the use of slightly activated flux is suitable, Soldering on double wave machine for vertical versions: soldering time < 5 sec, Cleaning according to typical washing processes, Infrared Reflow Soldering in accordance with IEC 61760-1.

Spec.
Model No. TS-D003
Terminal Type SMT
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 160/180/250 gf
Operation Life 300,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

Reference:

6.0 X 6.0 Mm Surface Mount Tactile Switch Reflow Solderable 4 Pin Terminal
