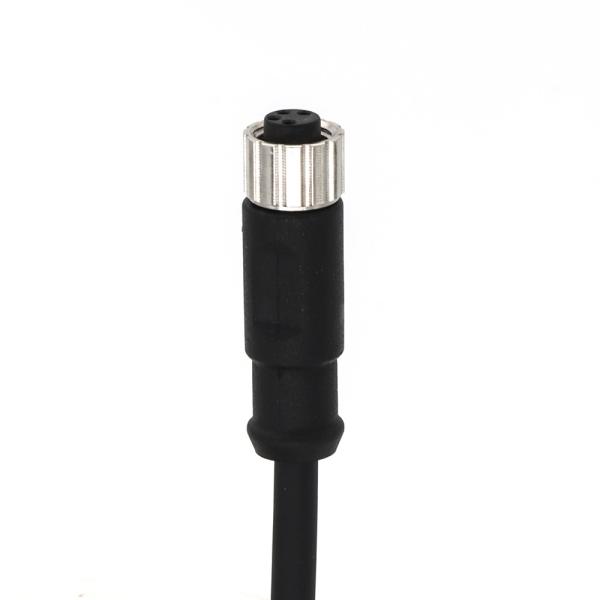

M8 3-Pin Female Connector PVC Cable IEC 61076-2-104 Straight
M8 3-Pin Female Connector PVC Cable IEC 61076-2-104 Straight
M8 3-Pin Female Connector PVC Cable IEC 61076-2-104 Straight
M8 3-Pin Female Connector PVC Cable IEC 61076-2-104 Straight
Specifications
Brand Name :
KRONZ
Model Number :
M0803F-2/POOR
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Price :
Negotiable
Type :
Contact
Product name :
M8 Pre-Assembled Cable Connector
Contact carrier material :
PA, black
Housing material :
TPU, black
Seal material :
FPM/FKM
Contact resistance :
≤ 5mΩ
Pollution degree :
3
Endurance(shell) :
>100 cycles
Description

M8 Pre-assembled Connector PVC Cable IEC 61076-2-104 Straight Female 3 Pin A Code


This pre-assembled M8 3-Pin Female Connector with a straight head and PVC cable offers a reliable, ready-to-use solution for connecting sensors, actuators, and field devices in industrial automation systems. Built to IEC 61076-2-104 standards, it ensures secure and standardized connectivity with excellent resistance to vibration, moisture, and mechanical stress.


Features:

  • Connector Type: M8 Circular Connector – Female, 3-Pin

  • Orientation: Straight (in-line)

  • Pre-Assembled Cable: PVC-jacketed, flexible, oil-resistant

  • Pin Coding: A-Coded (standard for signal and sensor applications)

  • Standard Compliance: IEC 61076-2-104

  • Ingress Protection: IP67 (when mated) – waterproof and dustproof

  • Cable Length Options: Commonly available from 1m to 10m (custom lengths on request)

  • Rated Voltage: Up to 60V AC/DC

  • Rated Current: Up to 4A

  • Contact Material: Gold-plated contacts for reliable conductivity

  • Temperature Range: -25°C to +80°C

  • Cable Diameter: Typically 4–5 mm

  • Bend Radius: Approx. 5× cable diameter (static)


Product Dimension

M8 3-Pin Female Connector PVC Cable IEC 61076-2-104 Straight


Product Images

M8 3-Pin Female Connector PVC Cable IEC 61076-2-104 Straight



Technical Parameters

Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
M8 3-Pin Female Connector PVC Cable IEC 61076-2-104 Straight 1=BN 3=BU 4=BK A 3A 60V 3x0.25 (3x24AWG) PVC, black Straight 2M M0803M-2/POOR
5M M0803M-5/POOR
10M M0803M-10/POOR


Application

M8 pre-molded cable connectors have a wide range of applications in the industrial field, particularly in industrial robot control systems. They are commonly used to connect industrial robots to control systems, allowing robots to receive input signals from sensors and output control signals, thereby enabling precise motion control. M8 connectors can withstand high vibrations, temperature variations, and other extreme environmental conditions, ensuring the efficient and stable operation of robots on the production line.
