M8 Male 3-Pin A-Coded Shielded Connector Pre-Assembled PVC Cable
M8 Male 3-Pin A-Coded Shielded Connector Pre-Assembled PVC Cable
M8 Male 3-Pin A-Coded Shielded Connector Pre-Assembled PVC Cable
M8 Male 3-Pin A-Coded Shielded Connector Pre-Assembled PVC Cable
Specifications
Model Number :
M0803M-2/SOOR
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Brand Name :
KRONZ
Certification :
CE
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Cable :
Shielded
Product name :
M8 Pre-Assembled Cable Connector
Standard :
IEC 61076-2-104
Contact carrier material :
PA, black
Seal material :
FPM/FKM
Ambient temperature :
-25~+85℃
Endurance(shell) :
>100 cycles
Degree of protection :
IP67
Description

M8 Shielded Cable Connectors Pre-assembled Straight Male 3 Pin A Code PVC


This M8 Straight Male Connector features a 3-pin A-coded design and comes pre-assembled with a shielded PVC cable for fast, secure, and interference-free installations. Engineered for industrial automation, it provides reliable signal transmission and protection against electromagnetic interference (EMI).


Features:

  • Connector Type: M8 Male, 3-Pin, A-Coded
  • Orientation: Straight
  • Cable Type: Shielded PVC
  • Assembly: Factory pre-assembled for plug-and-play convenience
  • Applications: Sensors, actuators, industrial I/O devices
  • Standards: IEC 61076-2-104 compliant


Technical Parameters

Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
M8 Male 3-Pin A-Coded Shielded Connector Pre-Assembled PVC Cable 1=BN 3=BU 4=BK A 3A 60V 3x0.25 (3x24AWG) PVC, shielded,black Straight 2M M0803M-2/SOOR
5M M0803M-5/SOOR
10M M0803M-10/SOOR

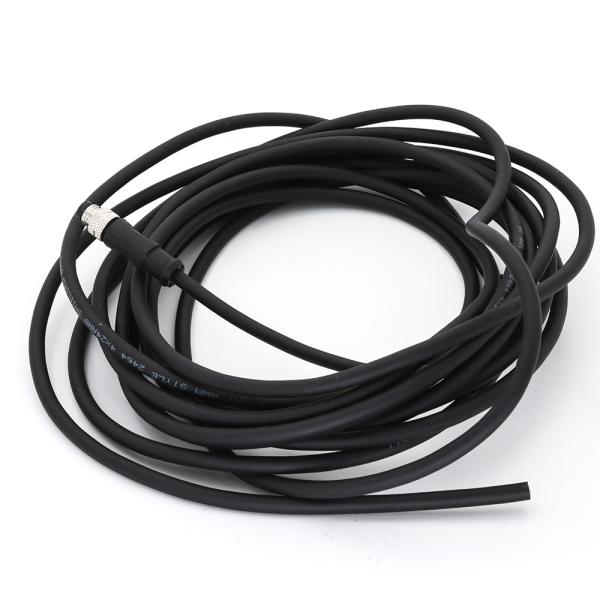

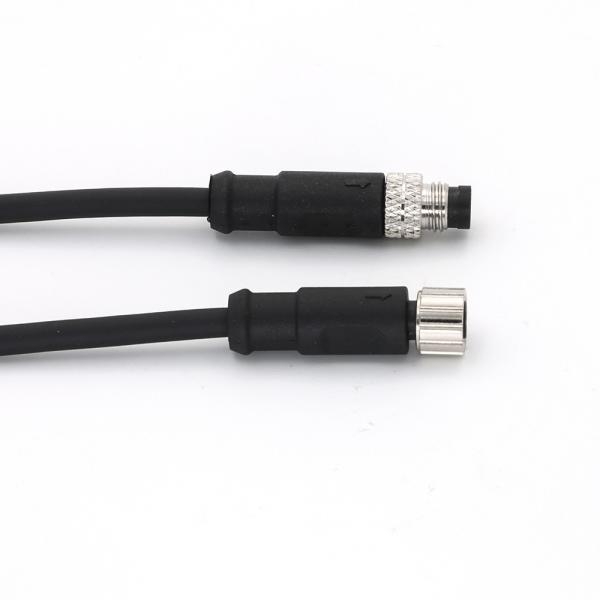

Product Images

M8 Male 3-Pin A-Coded Shielded Connector Pre-Assembled PVC Cable

M8 Male 3-Pin A-Coded Shielded Connector Pre-Assembled PVC Cable

M8 Male 3-Pin A-Coded Shielded Connector Pre-Assembled PVC Cable








Product Dimension Drawing

M8 Male 3-Pin A-Coded Shielded Connector Pre-Assembled PVC Cable
