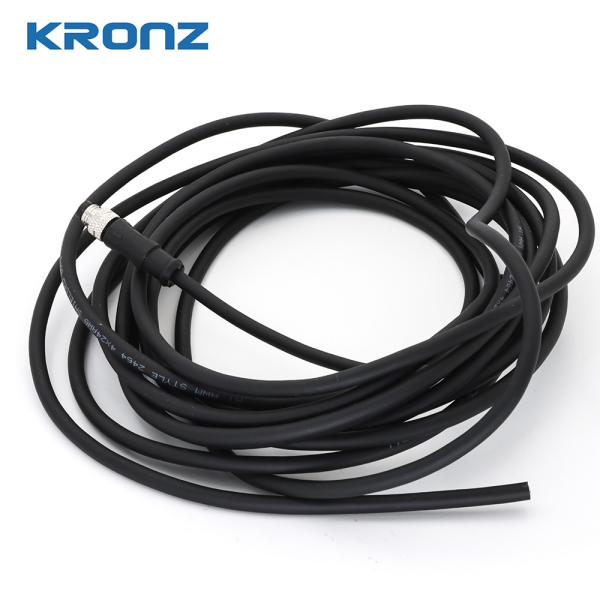

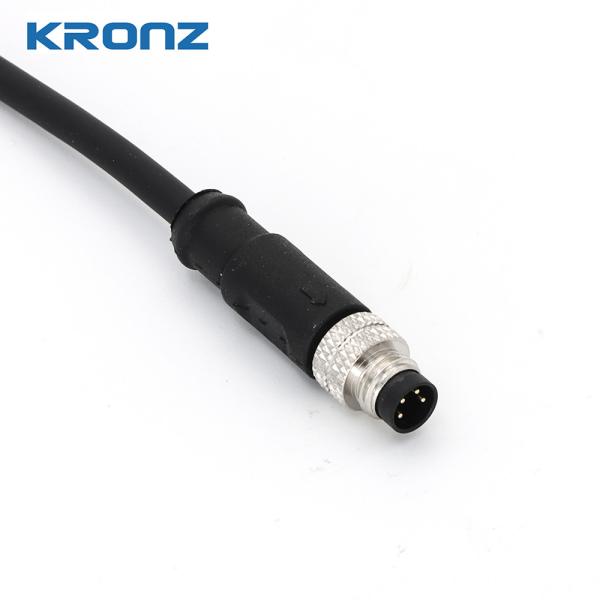

60V M8 3 Pin Male Connector 3A Industrial Automation Connector With PVC Cable
60V M8 3 Pin Male Connector 3A Industrial Automation Connector With PVC Cable
60V M8 3 Pin Male Connector 3A Industrial Automation Connector With PVC Cable
60V M8 3 Pin Male Connector 3A Industrial Automation Connector With PVC Cable
Specifications
Brand Name :
KRONZ
Model Number :
M0803M-2/P00K
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
50
Price :
Negotiable
Packaging Details :
Polybag packing
Delivery Time :
5-8 working days
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Cable outlet :
Straight
Cable meterial :
PVC
Mating cycles :
>100
Application :
Sensor
Rated current :
3A
Contact carrier material :
PA, Black
Seal material :
FPM/FKM
Insulation resistance :
≥100MΩ
Description

M8 Connector with Customized Cable Length 60V 3 Pin Male Industrial Automation Connector


Product Description


The M8 Connector features a straight cable outlet, making it easy to connect your cables to your devices. It also has a degree of protection of IP67, which means that it is resistant to dust and water ingress, making it ideal for use in harsh environments.

What is an M8 connector?

M8 connectors are widely used in:

  • Factory Automation: Connecting sensors (proximity, photoelectric) to PLCs.

  • Robotics: Providing power/signal in tight spaces.

  • Transportation: Vehicle sensors and outdoor equipment due to vibration resistance.

  • Food/Beverage Industry: Stainless steel variants for washdown environments.

60V M8 3 Pin Male Connector 3A Industrial Automation Connector With PVC Cable

Technical Data


Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
60V M8 3 Pin Male Connector 3A Industrial Automation Connector With PVC Cable 1=WH
3=BU
4=BK		 A 3A 60V 3×0.25
(3×24AWG)
PVC, black		 Straight 2M M0803M-2/P00K


Applications


With a minimum order quantity of 50, the KRONZ M8 Connector is a versatile and durable solution for a variety of applications. Whether you need a Locking Connector for industrial automation or a Sensor Connector for data acquisition systems, this product is up to the task.
