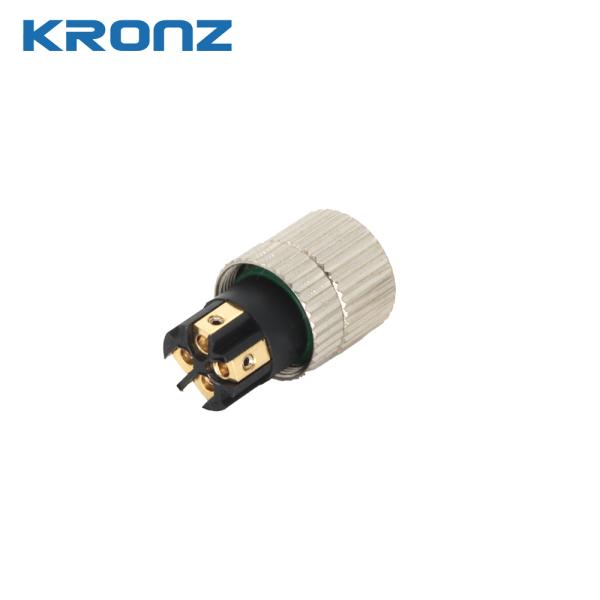

Waterproof IP67 M8 Connectors Field Wireable Female Angled 4 Pin Sensor Connector
Waterproof IP67 M8 Connectors Field Wireable Female Angled 4 Pin Sensor Connector
Waterproof IP67 M8 Connectors Field Wireable Female Angled 4 Pin Sensor Connector
Waterproof IP67 M8 Connectors Field Wireable Female Angled 4 Pin Sensor Connector
Specifications
Model Number :
H0804FA-0
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Brand Name :
KRONZ
Certification :
CE
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Standard :
IEC 61076-2-104
Contact nut material :
Brass, nickle-plated
Housing material :
PBT/PA, black
Seal material :
FPM/FKM
Insulation Resistance :
≥ 100MΩ
Contact resistance :
≤ 5mΩ
Ambient temperature :
-25~+85℃
Endurance(shell) :
>100 cycles
Description

M8 Connector Angled Waterproof IP67 4 Pin Female Angled Field-wireable Sensor Connector


Product Description


M8 Female Connector - 4 Pins (A Code) – Enhanced Flexibility for Complex Systems

The M8 4-pin female connector with A-code is widely used in systems requiring multiple signals or power lines. It’s typically used in conjunction with the male version to support more complex sensor or actuator networks. This connector is often utilized in applications that require an enhanced level of flexibility, allowing it to handle additional signals for power distribution or multiple data connections. It’s commonly found in industrial automation systems and process control, ensuring robust signal integrity and power transmission.


Applications
  • Complex sensor systems
  • Power distribution in automation
  • Multi-signal industrial control systems
  • Automated machinery and manufacturing lines

Waterproof IP67 M8 Connectors Field Wireable Female Angled 4 Pin Sensor Connector

Technical Data


StandardIEC 61076-2-104
Contact nut materialBrass, nickle-plated
Contact surface materialBrass, gold-plated
Contact carrier materialPA, black
Housing materialTPU, black
Seal materialFPM/FKM
Insulation resistance≥100MΩ
Contact resistance≤5mΩ
Pollution degree3
Ambient temperature-25~+85℃
Mating cycles>100
Degree of protectionIP67


Pin assignmentConnection methodCodingRated currentVoltageCable outletExternal cable diameterModel No.
Waterproof IP67 M8 Connectors Field Wireable Female Angled 4 Pin Sensor ConnectorScrew connectionA3A60VAngled3.5-5mmH0804FA-0


Waterproof IP67 M8 Connectors Field Wireable Female Angled 4 Pin Sensor Connector

Waterproof IP67 M8 Connectors Field Wireable Female Angled 4 Pin Sensor ConnectorWaterproof IP67 M8 Connectors Field Wireable Female Angled 4 Pin Sensor Connector

Waterproof IP67 M8 Connectors Field Wireable Female Angled 4 Pin Sensor Connector

Waterproof IP67 M8 Connectors Field Wireable Female Angled 4 Pin Sensor Connector

Waterproof IP67 M8 Connectors Field Wireable Female Angled 4 Pin Sensor Connector
