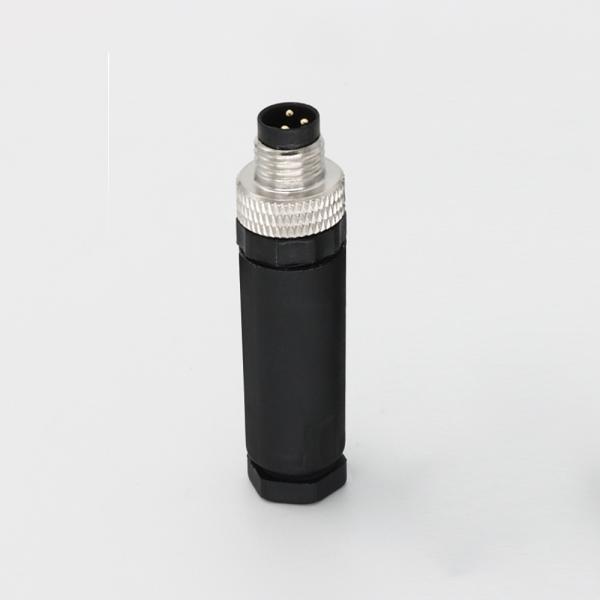

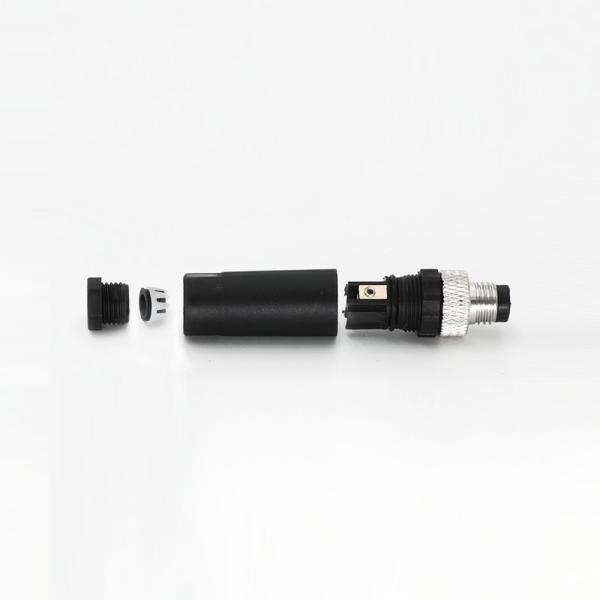

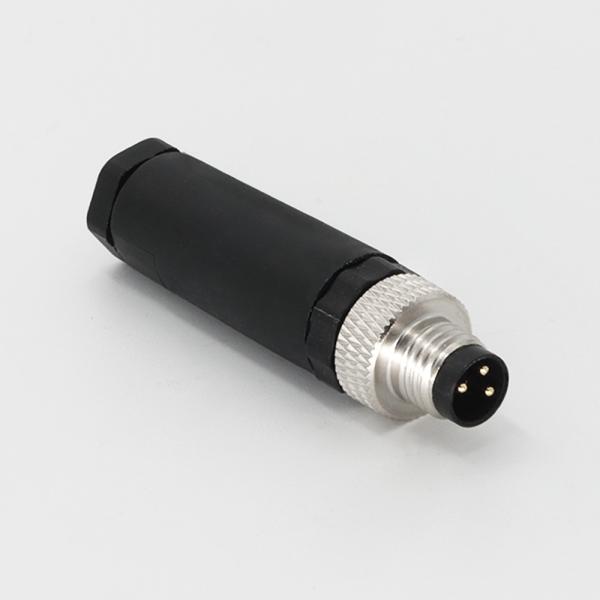

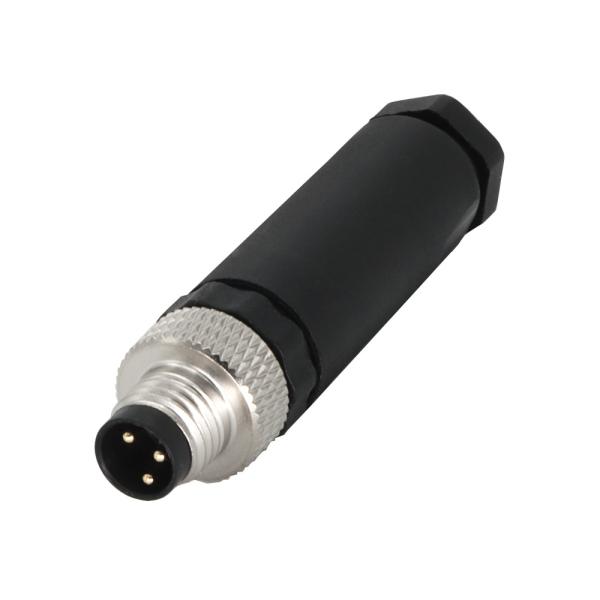

KRONZ M8 Circular Connector with Alloy Material Black Push Locking for Field Wirable Applications
KRONZ M8 Circular Connector with Alloy Material Black Push Locking for Field Wirable Applications
KRONZ M8 Circular Connector with Alloy Material Black Push Locking for Field Wirable Applications
KRONZ M8 Circular Connector with Alloy Material Black Push Locking for Field Wirable Applications
KRONZ M8 Circular Connector with Alloy Material Black Push Locking for Field Wirable Applications
KRONZ M8 Circular Connector with Alloy Material Black Push Locking for Field Wirable Applications
KRONZ M8 Circular Connector with Alloy Material Black Push Locking for Field Wirable Applications
KRONZ M8 Circular Connector with Alloy Material Black Push Locking for Field Wirable Applications
KRONZ M8 Circular Connector with Alloy Material Black Push Locking for Field Wirable Applications
KRONZ M8 Circular Connector with Alloy Material Black Push Locking for Field Wirable Applications
KRONZ M8 Circular Connector with Alloy Material Black Push Locking for Field Wirable Applications
KRONZ M8 Circular Connector with Alloy Material Black Push Locking for Field Wirable Applications
Specifications
Model Number :
H0803M-0
Place of Origin :
Guangdong, China
MOQ :
50
Price :
$1.78-2.38
Type :
Contact
Color :
Black
Material :
Alloy
IP rate :
IP67
Endurance :
>100 cycles
Insulation Resistance :
≥ 100MΩ
Contact resistance :
≤ 5mΩ
Ambient temperature :
-25~+85℃
Connector type :
Push Locking
Pin count :
3 / 4 / 5
Standard :
IEC 61076-2-104
Connector nut :
Brass, Nickle-plated
Connector contacts :
Brass, Gold-plated
Connector insert :
Plastic, PA, Black
Connector overmold :
Plastic, PBT/PA, Black
Description
Technicial Patameters
Standard:
IEC 61076-2-104
Insulation resistance:
≥ 100MΩ
Connector nut/screw:
Brass, Nickle-plated
Contact resistance:
≤ 5mΩ
Connector contacts:
Brass, Gold-plated
Pollution grade:
3
Connector insert:
Plastic, PA, Black
Ambient temperature:
-25~+85℃
Connector overmold:
Plastic, PBT/PA, Black
Mating endurance:
>100 cycles
Seal/O-ring:
FPM/FKM
Protection rating:
IP67
FAQ
Q1: Are you a manufacturer? A1: Yes, we are an experienced manufacturer with our research and development, several production line and in-house lab. Q2: Do you accept sample order？ A2: Yes, we do. You can place a sample order with us to test our superior quality and services. Q3: Could you produce customized produces? A3: Yes, we can produce base on customer provided sample or technical drawings. We also can offer customized logo and package design for mass production. Q4: What is your terms of payment? A4: T/T payment, 30%-50% deposit, balance before shipment. Q5: What is your lead time after payment? A5: Normally, 3-5 working days for sample order, 10-15 working days for mass production. If your project involves new molds, lead time is subject to custom product complex. Q6: Do you offer guarantee for the products? A6: Yes, we offer 2-3 years’ warranty. Q7: How do you control the quality? A7: Quality is priority. We have professional quality inspections in every production process to strictly control the products. A final quality inspection will be conducted on the finished products before packaging. Our factory has gained ISO9001, GJB9001, QPL lSO14001, certificates.
