M8 Female Field-Wireable Connector 4 Pin Straight IP67
M8 Female Field-Wireable Connector 4 Pin Straight IP67
M8 Female Field-Wireable Connector 4 Pin Straight IP67
M8 Female Field-Wireable Connector 4 Pin Straight IP67
Specifications
Model Number :
H0804FV-0
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Brand Name :
KRONZ
Certification :
CE
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Product Name :
M8 Male Connector
Type :
Field-wireable Assembly Connectors
Material :
Brass,gold-plated
IP rate :
IP67
Contact Resistance :
≤ 5mΩ
Ambient Temperature :
-25~+85℃
Connection Method :
Screw Connection
Pin :
4
Description

M8 Metal Connector Female Field-wireable Assembly Straight 4 Pin Connectors


This Field Wireable M8 Female Connector features a 4-pin A-coded design with a straight orientation, ideal for on-site wiring in space-constrained industrial environments. Engineered for flexibility and ease of assembly, it provides secure and stable connections for sensors, actuators, and control devices.


Features:

  • Connector Type: M8 Female, 4-Pin, A-Coded

  • Orientation: Straight

  • Termination: Field wireable for easy on-site installation

  • Housing: Compact and durable design suitable for industrial use

  • Applications: Sensors, actuators, I/O modules, and automation systems

  • Standard: IEC 61076-2-104 compliant


Technical Parameters

Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material Brass, nickle-plated
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable
diameter		 Model No.
M8 Female Field-Wireable Connector 4 Pin Straight IP67 Screw connection A 3A 60V Straight 3.5-5mm H0804FV-0


Product Images

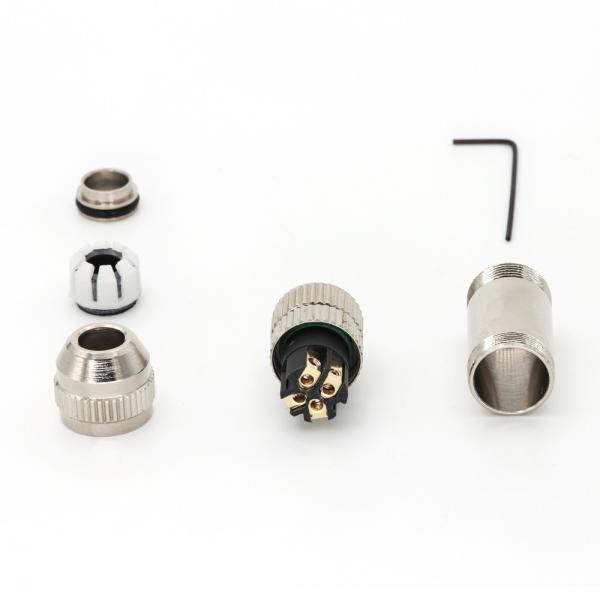

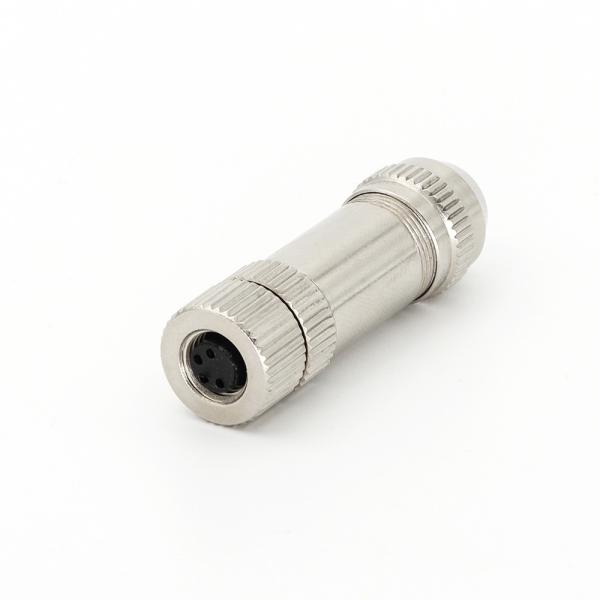

M8 Female Field-Wireable Connector 4 Pin Straight IP67

M8 Female Field-Wireable Connector 4 Pin Straight IP67

M8 Female Field-Wireable Connector 4 Pin Straight IP67


Product Dimension Drawing

M8 Female Field-Wireable Connector 4 Pin Straight IP67
