M8 Male 4-Pin A-Coded Connector Screw Connection IP67
M8 Male 4-Pin A-Coded Connector Screw Connection IP67
M8 Male 4-Pin A-Coded Connector Screw Connection IP67
M8 Male 4-Pin A-Coded Connector Screw Connection IP67
Specifications
Model Number :
H0804MV-0
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Brand Name :
KRONZ
Certification :
CE
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Material :
Brass,gold-plated
Product Name :
M8 Metal Connector
Color :
Siliver
IP rate :
IP67
Contact Resistance :
≤ 5mΩ
Ambient Temperature :
-25~+85℃
Connection Method :
Screw Connection
Description

M8 Field-wirable Assembly Connector Straight Male 4 Pin A Code Full Metal


This M8 Straight Male Connector features a 4-pin A-coded interface and a rugged full-metal housing for superior mechanical strength and EMI shielding. Designed with a screw connection termination, it ensures secure, vibration-resistant wiring for demanding industrial environments.


Features:

  • Connector Type: M8 Male, 4-Pin, A-Coded

  • Orientation: Straight

  • Housing: Full metal for enhanced durability and shielding

  • Termination: Screw connection for easy field assembly

  • Applications: Industrial sensors, actuators, robotics, and automation systems

  • Standard Compliance: IEC 61076-2-104


Technical Parameters

Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material Brass, nickle-plated
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable
diameter		 Model No.
M8 Male 4-Pin A-Coded Connector Screw Connection IP67 Screw connection A 3A 60V Straight 3.5-5mm H0804MV-0

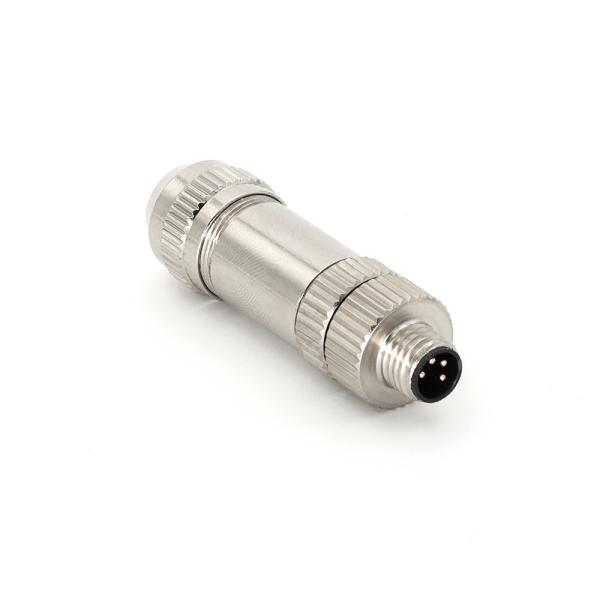

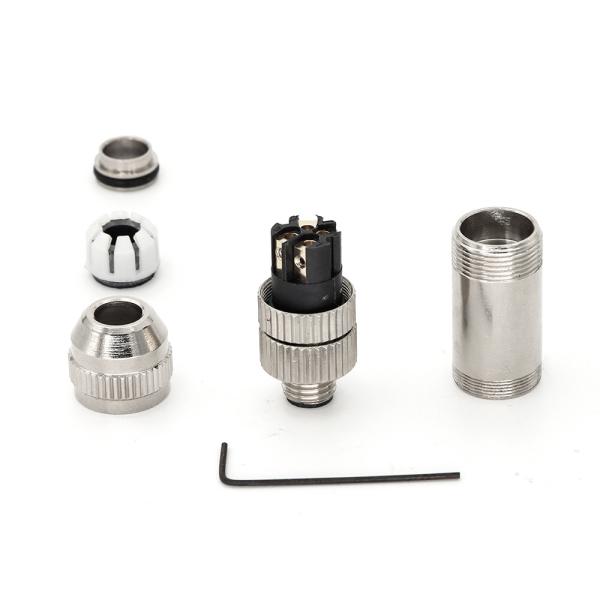

Product Images

M8 Male 4-Pin A-Coded Connector Screw Connection IP67

M8 Male 4-Pin A-Coded Connector Screw Connection IP67

M8 Male 4-Pin A-Coded Connector Screw Connection IP67


Product Dimension Drawing


M8 Male 4-Pin A-Coded Connector Screw Connection IP67
