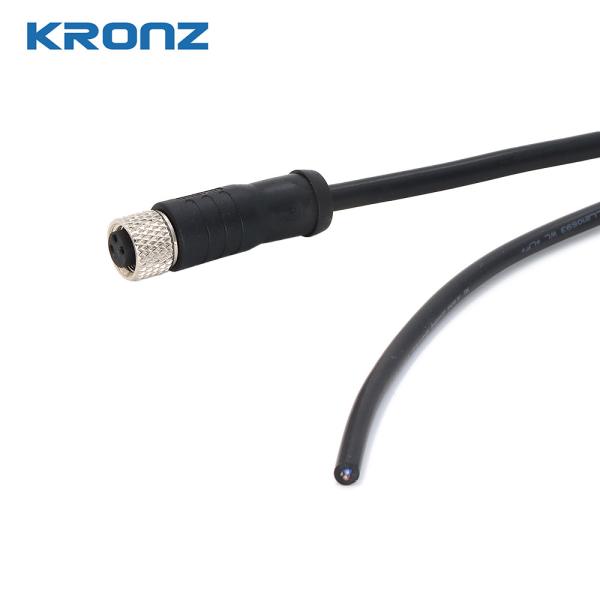

M8 Female 3-Pin Shielded Cable Connector IP67
M8 Female 3-Pin Shielded Cable Connector IP67
M8 Female 3-Pin Shielded Cable Connector IP67
M8 Female 3-Pin Shielded Cable Connector IP67
Specifications
Brand Name :
KRONZ
Model Number :
M0803F-2/SOOR
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Price :
Negotiable
Type :
Contact
Product name :
M8 Pre-Assembled Cable Connector
Seal material :
FPM/FKM
Insulation Resistance :
≥ 100MΩ
Contact resistance :
≤ 5mΩ
Pollution degree :
3
Ambient temperature :
-25~+85℃
Degree of protection :
IP67
Description

M8 Connector with Shielded Cable Straight Female 3 Pin A Code PVC IEC 61076-2-104


This 3-Pin Female M8 Connector with shielded cable ensures reliable and noise-resistant signal transmission in compact industrial and automation environments. Designed for durability and performance, the shielded design minimizes electromagnetic interference (EMI), making it ideal for sensitive signal or sensor connections.


Features:

  • Connector Type: M8 Female, 3-Pin
  • Cable Type: Shielded for EMI protection
  • Applications: Sensors, actuators, robotics, fieldbus systems
  • Design: Compact, robust housing with secure screw-lock connection
  • Standards: Compatible with IEC 61076-2-104



Technical Parameters

Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
M8 Female 3-Pin Shielded Cable Connector IP67 1=BN 3=BU 4=BK A 3A 60V 3x0.25 (3x24AWG) PVC, shielded,black Straight 2M M0803M-2/SOOR
5M M0803M-5/SOOR
10M M0803M-10/SOOR

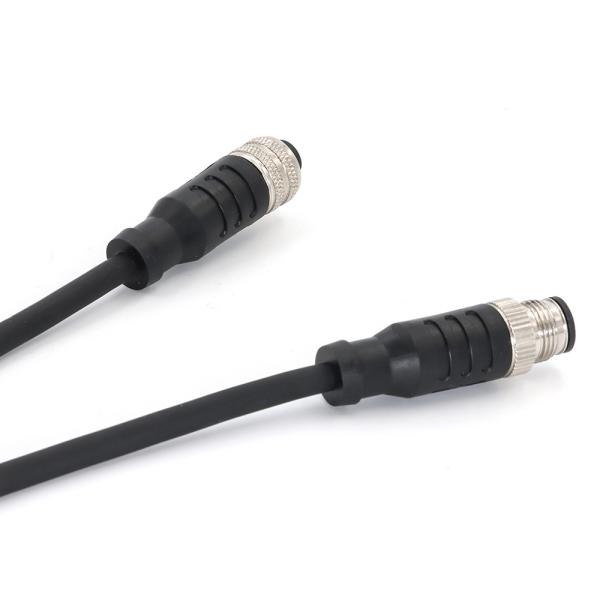

Product Images

M8 Female 3-Pin Shielded Cable Connector IP67

M8 Female 3-Pin Shielded Cable Connector IP67


M8 Female 3-Pin Shielded Cable Connector IP67


Product Dimension Drawing


M8 Female 3-Pin Shielded Cable Connector IP67
