Angled M8 Connectors 3 Pin Male Pre Assembled Customized Cable A Code PVC
Angled M8 Connectors 3 Pin Male Pre Assembled Customized Cable A Code PVC
Angled M8 Connectors 3 Pin Male Pre Assembled Customized Cable A Code PVC
Angled M8 Connectors 3 Pin Male Pre Assembled Customized Cable A Code PVC
Specifications
Brand Name :
KRONZ
Model Number :
M0803MA-2/POOR
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Price :
Negotiable
Standard :
IEC 61076-2-104
Contact nut material :
Brass, nickle-plated
Contact carrier material :
PA, black
Seal material :
FPM/FKM
Contact resistance :
≤ 5mΩ
Pollution degree :
3
Ambient temperature :
-25~+85℃
Degree of protection :
IP67
Description

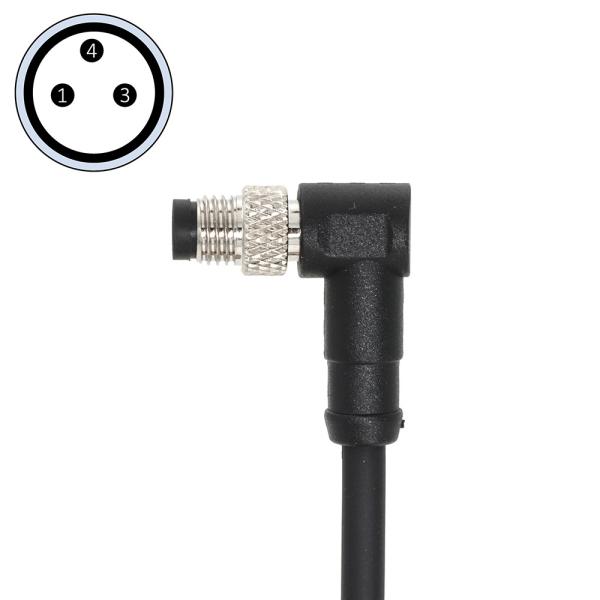

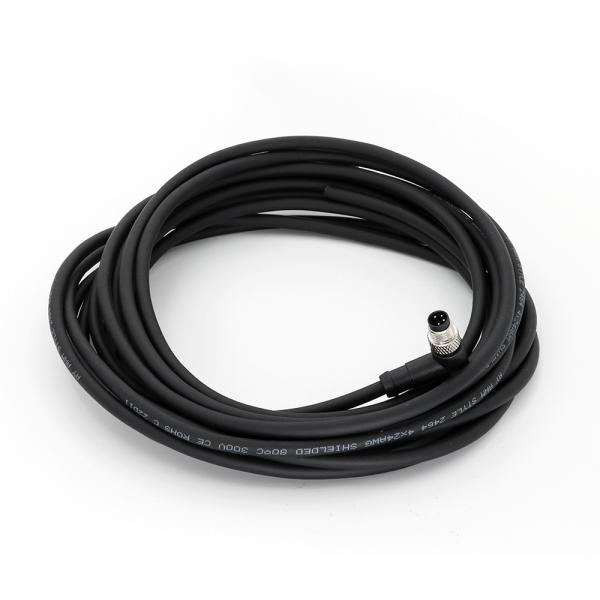

M8 Angled Connector Pre-assembled Customized Cable Male 3 Pin A Code PVC


Product Description

What is an M8 angle pre-molded connector? An M8 angled pre-molded connector is a compact, factory-assembled (overmolded) electrical connector with a right-angle (90°) cable exit, commonly used in industrial automation, sensor systems, and machine wiring.

  • Angled (90°): The cable exits the connector perpendicularly to the mating direction. This L-shaped design is ideal for tight or low-clearance spaces.

  • Pre-molded (Overmolded): The connector is factory-assembled and sealed with a molded plastic housing.

Angled M8 Connectors 3 Pin Male Pre Assembled Customized Cable A Code PVC


Technical Data

Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
Angled M8 Connectors 3 Pin Male Pre Assembled Customized Cable A Code PVC 1=BN 3=BU 4=BK A 3A 60V 3x0.25 (3x24AWG) PVC, black Angled 2M M0803MA-2/POOR
5M M0803MA-5/POOR
10M M0803MA-10/POOR

Angled M8 Connectors 3 Pin Male Pre Assembled Customized Cable A Code PVC

Angled M8 Connectors 3 Pin Male Pre Assembled Customized Cable A Code PVC

Angled M8 Connectors 3 Pin Male Pre Assembled Customized Cable A Code PVC

Angled M8 Connectors 3 Pin Male Pre Assembled Customized Cable A Code PVC

Angled M8 Connectors 3 Pin Male Pre Assembled Customized Cable A Code PVC
