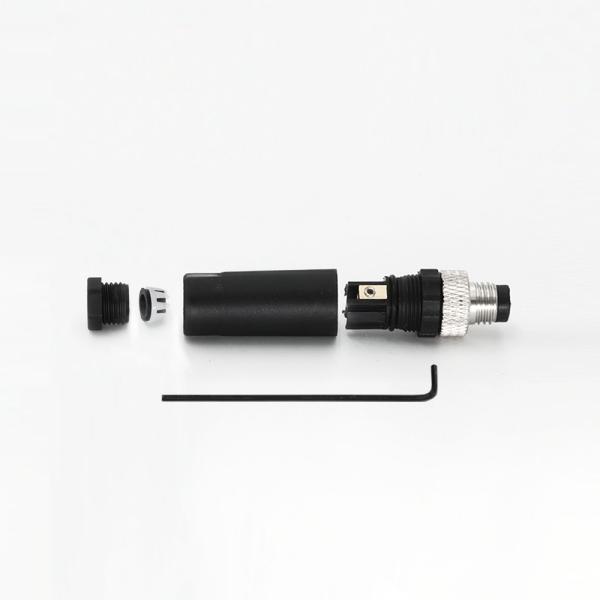

Contact M8 Field Wireable Connector 5 Pin B Code Straight Male Connector
Contact M8 Field Wireable Connector 5 Pin B Code Straight Male Connector
Contact M8 Field Wireable Connector 5 Pin B Code Straight Male Connector
Contact M8 Field Wireable Connector 5 Pin B Code Straight Male Connector
Specifications
Model Number :
H0805BM-0
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Brand Name :
KRONZ
Certification :
CE
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Product name :
M8 Connector
Type :
Contact
Standard :
IEC 61076-2-104
Contact nut material :
Brass
Contact carrier material :
PA
Housing material :
PBT
Seal material :
FPM/FKM
External cable diameter :
3.5-5mm
Description

Field-wireable Assembly Connector M8 Connectors 5 Pin B Code Straight Male


Product Description


An M8 field-wireable connector is a type of circular electrical connector commonly used in industrial automation to connect sensors, actuators, and other devices.

What is an M8 field-wireable connector?

  • 2 to 8 pins for signal or power transmission.

  • Available in straight or angled versions.

  • Commonly support IP67 protection, making them dust-tight and waterproof.

  • Used with screw or solder terminals inside the connector housing for wire connection.

Contact M8 Field Wireable Connector 5 Pin B Code Straight Male Connector

Contact M8 Field Wireable Connector 5 Pin B Code Straight Male Connector

Technical Data

Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
Contact M8 Field Wireable Connector 5 Pin B Code Straight Male Connector Screw connection A 3A 30V Straight 3.5-5mm H0805BM-0
