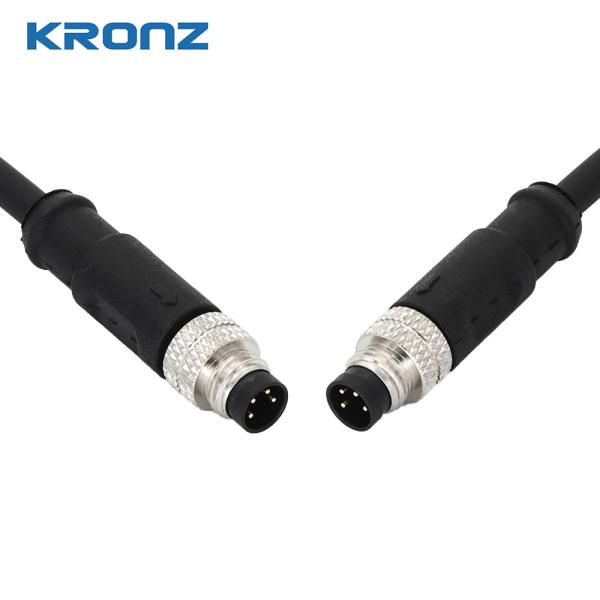

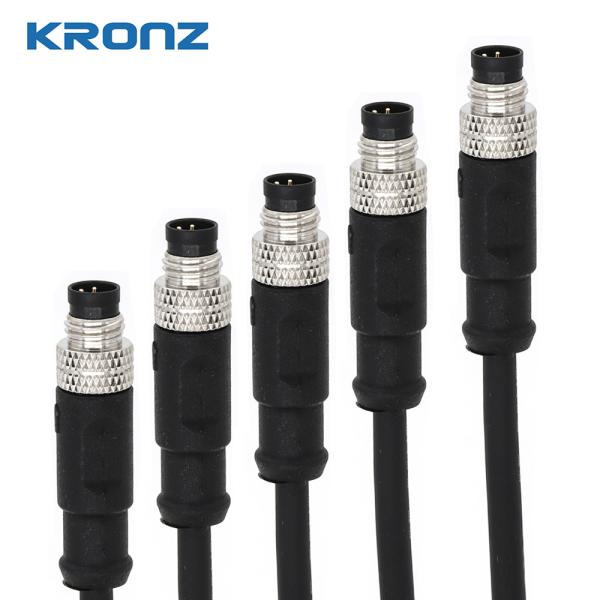

3 Pin A Code M8 Connectors Male 60V Waterproof IP67 Connector For Sensors
3 Pin A Code M8 Connectors Male 60V Waterproof IP67 Connector For Sensors
3 Pin A Code M8 Connectors Male 60V Waterproof IP67 Connector For Sensors
3 Pin A Code M8 Connectors Male 60V Waterproof IP67 Connector For Sensors
Specifications
Brand Name :
KRONZ
Model Number :
M0803M-2/P00K
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
50
Price :
Negotiable
Packaging Details :
Polybag packing
Delivery Time :
5-8 working days
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Ambient temperature :
-25~+85℃
Insulation resistance :
≥100MΩ
Shielded :
No
Voltage :
60V
Contact resistance :
≤5mΩ
Pollution degree :
3
Cable meterial :
PVC
Degree of protection :
IP67
Description

M8 Male Connector 3 Pin A Code Waterproof IP67 60V Cable Connector for Sensors


Product Description


What is an M8 connector? It is a circular electrical connector with an 8mm threaded locking mechanism, commonly used in industrial automation and sensors. Key specs include:

  • IP Rating: Typically IP67 (dust/water-resistant).

  • Voltage/Current: Often rated for 12-250V and 2-4A, depending on pin count.

  • Pins: Available in 3-pin, 4-pin, or 5-pin configurations for power, signal, or data (e.g., Ethernet M8-D-coded).

  • Standards: Complies with IEC 61076-2-104 for robustness in harsh environments.


3 Pin A Code M8 Connectors Male 60V Waterproof IP67 Connector For Sensors

Technical Data


StandardIEC 61076-2-104
Contact nut materialBrass, nickle-plated
Contact surface materialBrass, gold-plated
Contact carrier materialPA, black
Housing materialTPU, black
Seal materialFPM/FKM
Insulation resistance≥100MΩ
Contact resistance≤5mΩ
Pollution degree3
Ambient temperature-25~+85℃
Mating cycles>100
Degree of protectionIP67


Pin assignmentWire colorCodingRated currentVoltageWire gaugeCable outletLengthModel No.
3 Pin A Code M8 Connectors Male 60V Waterproof IP67 Connector For Sensors1=WH
3=BU
4=BK		A3A60V3×0.25
(3×24AWG)
PVC, black		Straight2MM0803M-2/P00K


Applications


Originating from Guangdong, China, this 8-pin connector is certified by CE and meets the IEC 61076-2-104 standard. With a rated current of 3A and contact resistance of ≤5mΩ, this male connector can handle a voltage of up to 60V.


3 Pin A Code M8 Connectors Male 60V Waterproof IP67 Connector For Sensors

3 Pin A Code M8 Connectors Male 60V Waterproof IP67 Connector For Sensors

3 Pin A Code M8 Connectors Male 60V Waterproof IP67 Connector For Sensors3 Pin A Code M8 Connectors Male 60V Waterproof IP67 Connector For Sensors

3 Pin A Code M8 Connectors Male 60V Waterproof IP67 Connector For Sensors
