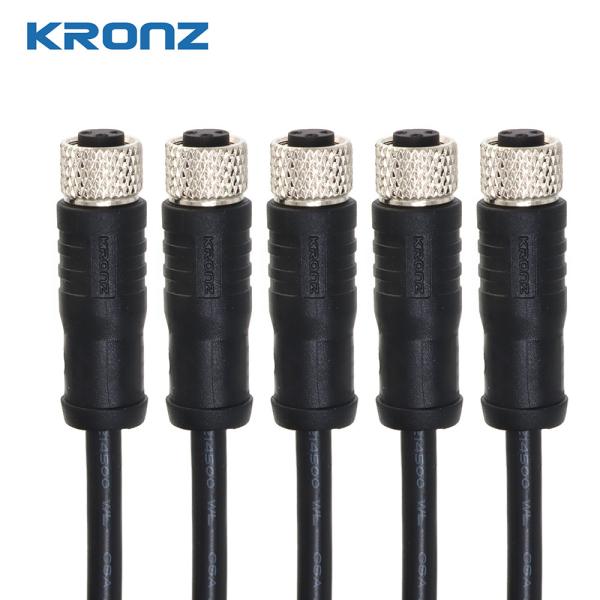

Pre Assembled Female M8 IP67 Waterproof Connector 60V Sensor Connector
Pre Assembled Female M8 IP67 Waterproof Connector 60V Sensor Connector
Pre Assembled Female M8 IP67 Waterproof Connector 60V Sensor Connector
Pre Assembled Female M8 IP67 Waterproof Connector 60V Sensor Connector
Specifications
Brand Name :
KRONZ
Model Number :
M0803F-15/P00K
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
50
Price :
TBC
Packaging Details :
Polybag packing
Delivery Time :
5-8 working days
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Contact carrier material :
PA, Black
Voltage :
60V
Contact surface material :
Brass, Gold-plated
Insulation resistance :
≥100MΩ
Contact nut material :
Brass, Nickle-plated
Cable length :
10m, 15m
Housing material :
TPU, Black
Wire color :
1=BN,3=BU,4=BK
Description

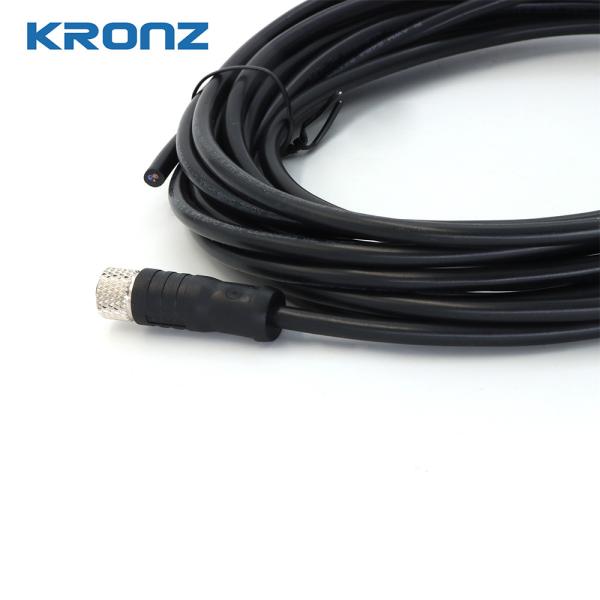

M8 Connector with Pre-assembled Cable 15m Sensor Connector 3-pin A-coding IP67


Product Description


The M8 Connector is a female connector that is suitable for use with a wide range of sensors and other devices. It features a coding of A, which ensures that it is easy to connect and disconnect, and is rated to operate in temperatures ranging from -25~+85℃. This makes it an ideal choice for use in a range of different environments, including those that are subject to extreme temperatures.

What is an M8 Connector?

By Physical Appearance & Types:

  • Shape: Circular, compact design with a metal or plastic shell.

  • Threading: Features an M8×1mm screw thread for secure mating.

  • Coding Types:

    • A-coded: Used for sensors/actuators (e.g., 3-4 pins).

    • B-coded: For PROFIBUS networks.

    • D-coded: Ethernet (4-pin, Cat5e).

  • Gender: Available in male (plug) and female (socket) versions.

Pre Assembled Female M8 IP67 Waterproof Connector 60V Sensor Connector


Technical Data


Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67


Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
Pre Assembled Female M8 IP67 Waterproof Connector 60V Sensor Connector 1=BN 3=BU 4=BK A 3A 60V 3x0.25 (3x24AWG) PVC,black Straight 15M M0803F-15/P00K

Pre Assembled Female M8 IP67 Waterproof Connector 60V Sensor Connector

Pre Assembled Female M8 IP67 Waterproof Connector 60V Sensor Connector

Pre Assembled Female M8 IP67 Waterproof Connector 60V Sensor Connector

Pre Assembled Female M8 IP67 Waterproof Connector 60V Sensor Connector

Pre Assembled Female M8 IP67 Waterproof Connector 60V Sensor Connector
