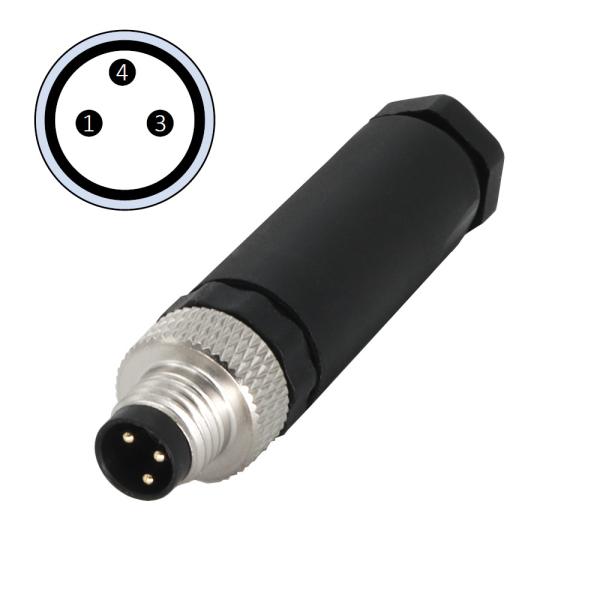

M8 Connector IEC 61076-2-104 Field-wireable Assembly 3-pin A-code Straight IP67 Male
M8 Connector IEC 61076-2-104 Field-wireable Assembly 3-pin A-code Straight IP67 Male
M8 Connector IEC 61076-2-104 Field-wireable Assembly 3-pin A-code Straight IP67 Male
M8 Connector IEC 61076-2-104 Field-wireable Assembly 3-pin A-code Straight IP67 Male
Specifications
Brand Name :
KRONZ
Model Number :
H0803M-0
Place of Origin :
China
MOQ :
50
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
5-8 work days
Packaging Details :
Polybag with paper box
Standard :
IEC 61076-2-104
Contact nut material :
Brass,nickle-plated
Seal material :
FPM/FKM
Ambient Temperature :
-25°C to +85°C
Mating cycles :
>100
Ip Rating :
IP67
Connector Type :
M8
Number Of Pins :
3
Description

M8 Connector IEC 61076-2-104 Field-wireable Assembly Connector 3-pin A-coding Straight IP67 Male


This M8 male connector is designed for industrial automation applications, offering robust performance in harsh environments. It complies with IEC 61076-2-104 standards and features an A-coding (preventing mismating with B/D-coded variants). The IP67 rating ensures protection against dust, moisture, and temporary immersion, making it ideal for outdoor or wet conditions


Features:

Field-Wireable Design

  • Screw termination (or spring-cage) for easy on-site installation without soldering.
  • Supports wire sizes 0.08–1.5 mm² (AWG 28–16).

3-Pin A-Coding

  • Standard pinout for sensor/actuator connections (prevents mismating with B/C/D-coded versions).

Straight (Inline) Connector Style

  • Axial cable exit for direct routing in control panels, machinery, and tight spaces.

Durable Construction

  • Housing Material: High-grade thermoplastic (PBT/PA) or metal (nickel-plated brass).
  • Contacts: Gold-plated or tin-plated brass for optimal conductivity and corrosion resistance.

Secure Locking Mechanism

  • M8x1 threaded coupling for vibration-resistant connections.


M8 Connectors, Field-Wireable Assembly, Male, Straight, 3-pin, A-coding

Product Dimension

M8 Connector IEC 61076-2-104 Field-wireable Assembly 3-pin A-code Straight IP67 Male


Technical Data

Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Part No.
M8 Connector IEC 61076-2-104 Field-wireable Assembly 3-pin A-code Straight IP67 Male Screw A 3A 60V Straight 3.5-5mm H0803M-0









Product Images

M8 Connector IEC 61076-2-104 Field-wireable Assembly 3-pin A-code Straight IP67 Male

M8 Connector IEC 61076-2-104 Field-wireable Assembly 3-pin A-code Straight IP67 Male
