YD07-006 Two-Post Car Lift Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

1. 4000 kg Heavy Load + Dual Cylinder Drive, Stable Lifting for Light and Heavy Vehicles
   The two columns are made of Q355 low-carbon alloy steel plates with a wall thickness of 12 mm. Key welded joints are tested by ultrasonic flaw detection, with a tensile strength of 510 MPa. The maximum deformation of the columns is only 0.3 mm under the rated load of 4000 kg, which can stably support light-duty trucks (about 2800-3500 kg), medium-sized SUVs (about 1800-2500 kg) and family cars (about 1200-1800 kg); equipped with dual hydraulic cylinders (80 mm in diameter) for synchronous drive, the lifting speed reaches 8 mm/s, and it only takes 22 minutes to lift from 100 mm to 1880 mm, which is 60% more stable than single-cylinder lifts. The lowering process is precisely controlled by a hydraulic throttle valve to avoid vehicle collision.
2. 100-1880 mm Lifting Range + Adjustable Support Arms, Full Vehicle Adaptation
   With a minimum lifting height of only 100 mm, it can easily reach under the chassis of low-chassis vehicles (e.g., modified low-stance sports cars, unloaded light-duty trucks) without removing the guard; the maximum lifting height of 1880 mm meets high-lifting needs such as in-depth chassis maintenance, transmission disassembly and assembly, and suspension system replacement; the three-stage arm (620-1160 mm) and two-stage arm (910-1360 mm) are telescopic and adjustable, combined with height-adjustable foot pads (adjustment range 30-80 mm), which can adapt to vehicles with different wheelbases (2500-3200 mm) and different chassis heights (100-200 mm), with an adaptation rate of over 98% for common small and medium-sized vehicles.
3. Low Columns + Floor-Adaptable Base Plates, Compatible with Complex Scenarios

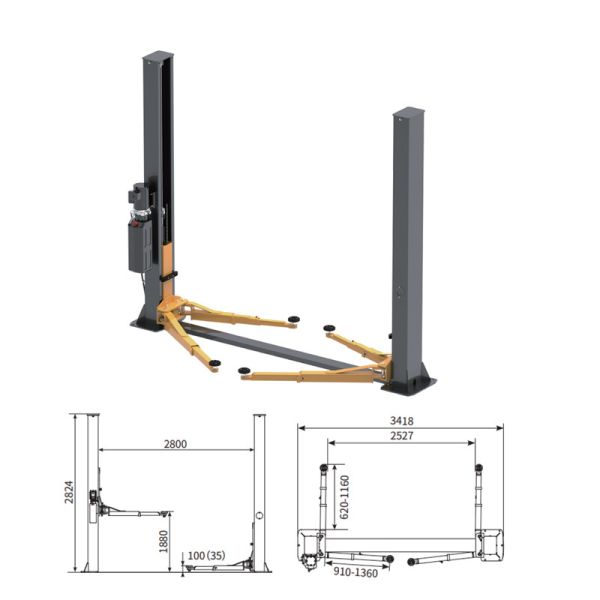

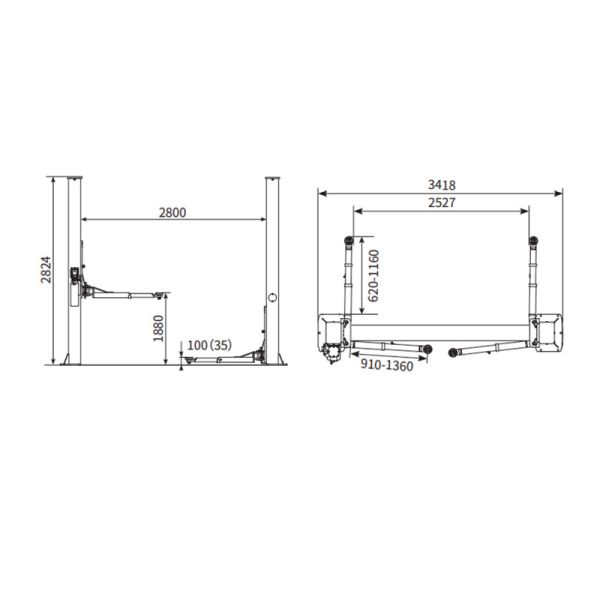

   The low-column design with a total height of only 2824 mm breaks the limitation of traditional two-post lifts that "high columns require high ceilings", and is suitable for low-ceiling repair workshops with a floor height of less than 3 meters (e.g., old auto repair shops, underground garage repair areas) without site renovation; the bottom is equipped with a floor-adaptable base plate (area 600×400 mm), and the bottom of the base plate is provided with anti-slip patterns and height fine-tuning bolts. Even if the floor flatness error is ≤ 5 mm (e.g., local 凸起 on cement floors), the equipment can be kept level by adjusting the bolts, solving the pain point of "lifting tilt caused by uneven floors", and the installation compatibility is 70% higher than that of lifts without base plates.
4. Self-Locking System + Multiple Protections, Safer Operation
   Equipped with a mechanical self-locking system, the support arm automatically locks after moving into position. After locking, the load redundancy reaches 150%, and even if the hydraulic system fails suddenly, it can firmly fix the support arm without falling risk; in addition, it is equipped with triple protection of "overload protection + anti-slip foot pads + emergency lowering valve": ① The motor has built-in overload protection, which automatically cuts off the power when the current exceeds 1.2 times the rated value to avoid motor burnout; ② The surface of the foot pad is pasted with a 5 mm thick rubber pad, with a friction coefficient of ≥ 0.98, and there is no sliding risk after the vehicle is lifted; ③ The side of the column is provided with an emergency lowering valve, which can manually release pressure and lower slowly in case of emergency, and the safety factor is 120% higher than that of ordinary two-post lifts.

III. Application Scenarios (APPLICATION SCENARIOS)

1. In-Depth Maintenance of Medium-Sized SUVs in Auto 4S Shops
   When 4S shops perform transmission maintenance on medium-sized SUVs (about 2200 kg) such as Toyota Highlander and Honda CR-V, the 4000 kg load capacity fully covers the vehicle weight; the maximum lifting height of 1880 mm lifts the chassis 1780 mm off the ground, allowing technicians to stand upright to disassemble the transmission; the three-stage arm is adjusted to a spacing of 800 mm to accurately align with the SUV chassis support points, and locked with the self-locking system, with no shaking during maintenance. The maintenance time per vehicle is shortened from 90 minutes to 60 minutes, adapting to the needs of "precision maintenance of high-end vehicles".
2. Maintenance of Light-Duty Trucks in Large Auto Repair Shops
   When large auto repair shops perform chassis maintenance on light-duty trucks (about 3200 kg) such as Foton Xiangling and JMC Shunda, the low-column design is suitable for the workshop floor height of 3 meters; the floor-adaptable base plate solves the problem of slight unevenness of the workshop floor, and the two-stage arm is adjusted to a length of 1200 mm to adapt to the long wheelbase of the truck; the dual cylinders lift synchronously, and after lifting to a height of 1500 mm, the safety lock is locked, facilitating the inspection of the drive shaft and replacement of the lower arm, improving maintenance efficiency by 50%, adapting to the "batch maintenance of light-duty trucks" scenario.
3. Maintenance of Family Cars in Old Auto Repair Shops
   When old auto repair shops (workshop floor height 2.8 meters) replace brake pads for family cars (about 1500 kg) such as Toyota Camry and Volkswagen Magotan, the 2824 mm low column easily adapts to the low-ceiling space; the minimum height of 100 mm reaches under the car chassis (about 120 mm from the ground), and it can be operated by lifting to a height of 500 mm; the drive-through width of 2527 mm allows the vehicle to drive directly between the two columns without reversing adjustment, and the maintenance time per vehicle is shortened from 40 minutes to 25 minutes, adapting to the "efficient use of old sites" scenario.
4. Multi-Vehicle Services in Commercial Vehicle Repair Stations
   When repair stations undertake maintenance of both light-duty trucks and family cars at the same time, the 4000 kg load capacity of the YD07-006 covers both types of vehicles; the three-stage arm adapts to the short wheelbase of cars, and the two-stage arm adapts to the long wheelbase of trucks, allowing lifting of different vehicles without replacing equipment; the 220V/380V dual voltage adapts to different power supply scenarios of the repair station, and the equipment investment cost is reduced by 60% compared with purchasing "car lift + truck lift", adapting to the "comprehensive maintenance of multiple vehicle types" needs.

IV. Frequently Asked Questions (FAQ)

Q1: With a total height of 2824 mm, can it adapt to an underground garage repair area with a floor height of 2.9 meters?

Q2: The support arm cannot be locked after adjustment. How to troubleshoot?

Q3: For the 4000 kg equipment weight, what preparations are needed for installation?

Q4: Do I need to replace the hydraulic oil after long-term use? What is the replacement cycle and recommended type?
